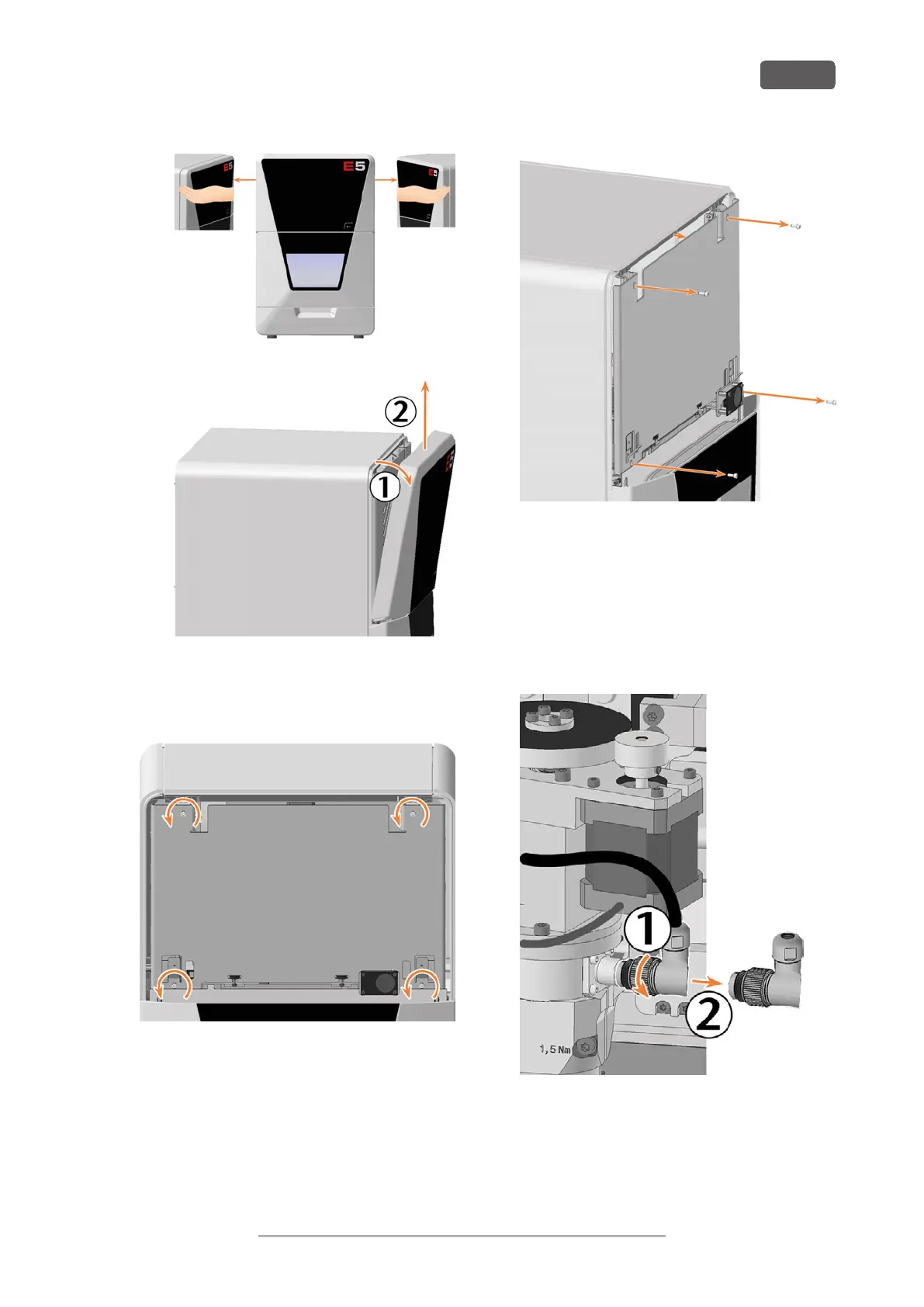

FIG. 163
FIG. 164
7. Use the 1.5 Nm torque screwdriver to unscrew the
4 screws that secure the safety cover.
8. Remove the safety cover.
FIG. 165
FIG. 166
9. Loosen the spindle cable by manually turning the
knurled nut anti-clockwise.
10. Unplug the spindle cable from the spindle
connector.
11. Remove the collet chuck release unit cable:
Push both mounting clips on the connector toward
the center and pull the connector out of the socket.
FIG. 167
Maintenance
EN 67
Original Operating Instructions: E5
Version: 4/27/2023
