Maintenance

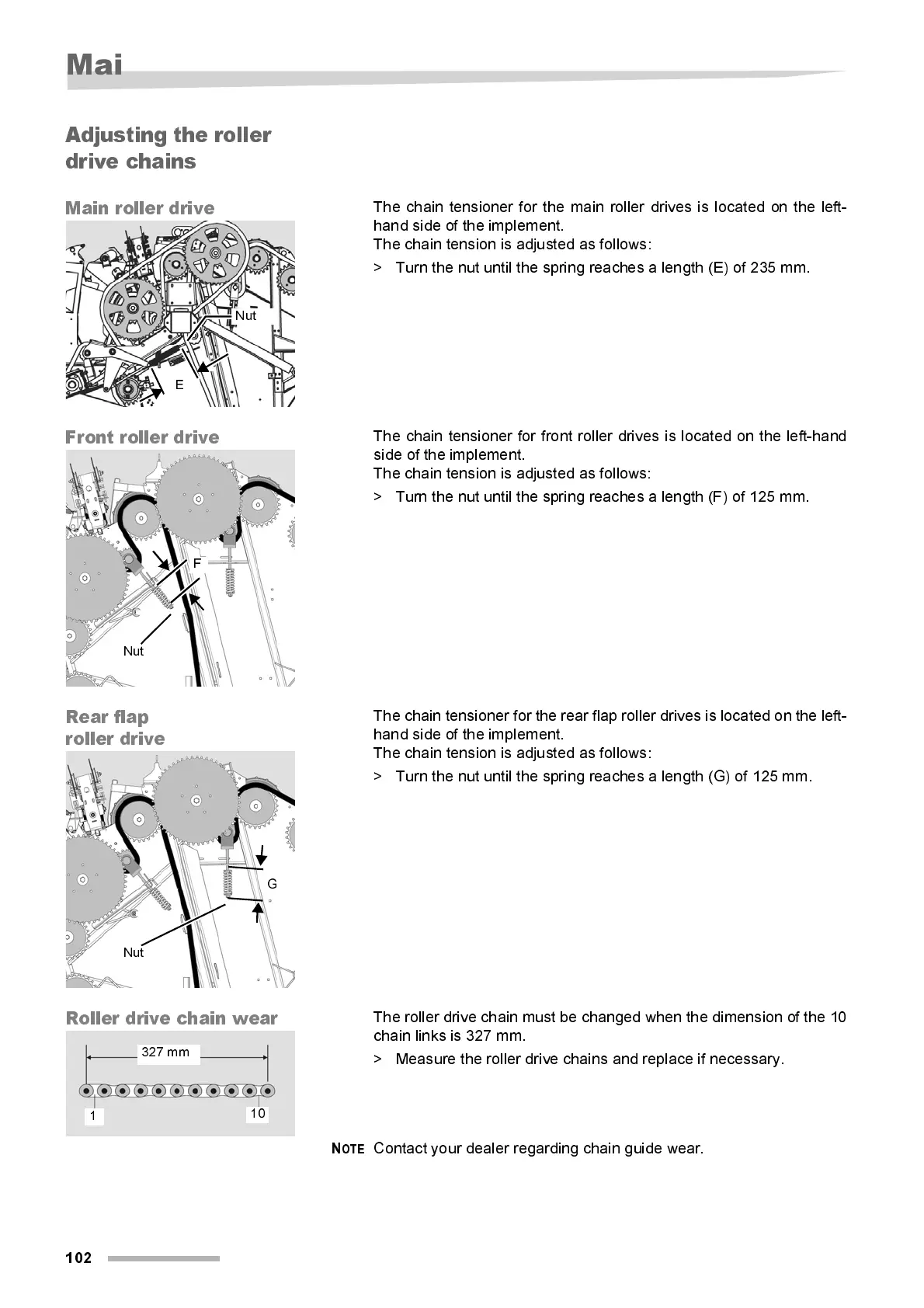

Adjusting the roller
drive chains
Main roller drive
The chain tensioner for the main roller drives is located on the left-
hand side of the implement.
The chain tension is adjusted as follows:
> Turn the nut until the spring reaches a length (E) of 235 mm.
Front roller drive
The chain tensioner for front roller drives is located on the left-hand
side of the implement.
The chain tension is adjusted as follows:
> Turn the nut until the spring reaches a length (F) of 125 mm.
Rear flap
roller drive
The chain tensioner for the rear flap roller drives is located on the lef t-
hand side of the implement.
The chain tension is adjusted as follows:
> Turn the nut until the spring reaches a length (G) of 125 mm.
Roller drive chain wear
The roller drive chain must be changed when the dimension of the 10
chain l i nks is 327 mm.
> Measure the rol l er dri ve chai ns and replace if necessar y.
N
OTE
Contact your dealer regardi ng chain gui de wear.
E
Nut
F
Nut
G
Nut
1
327 mm
10
