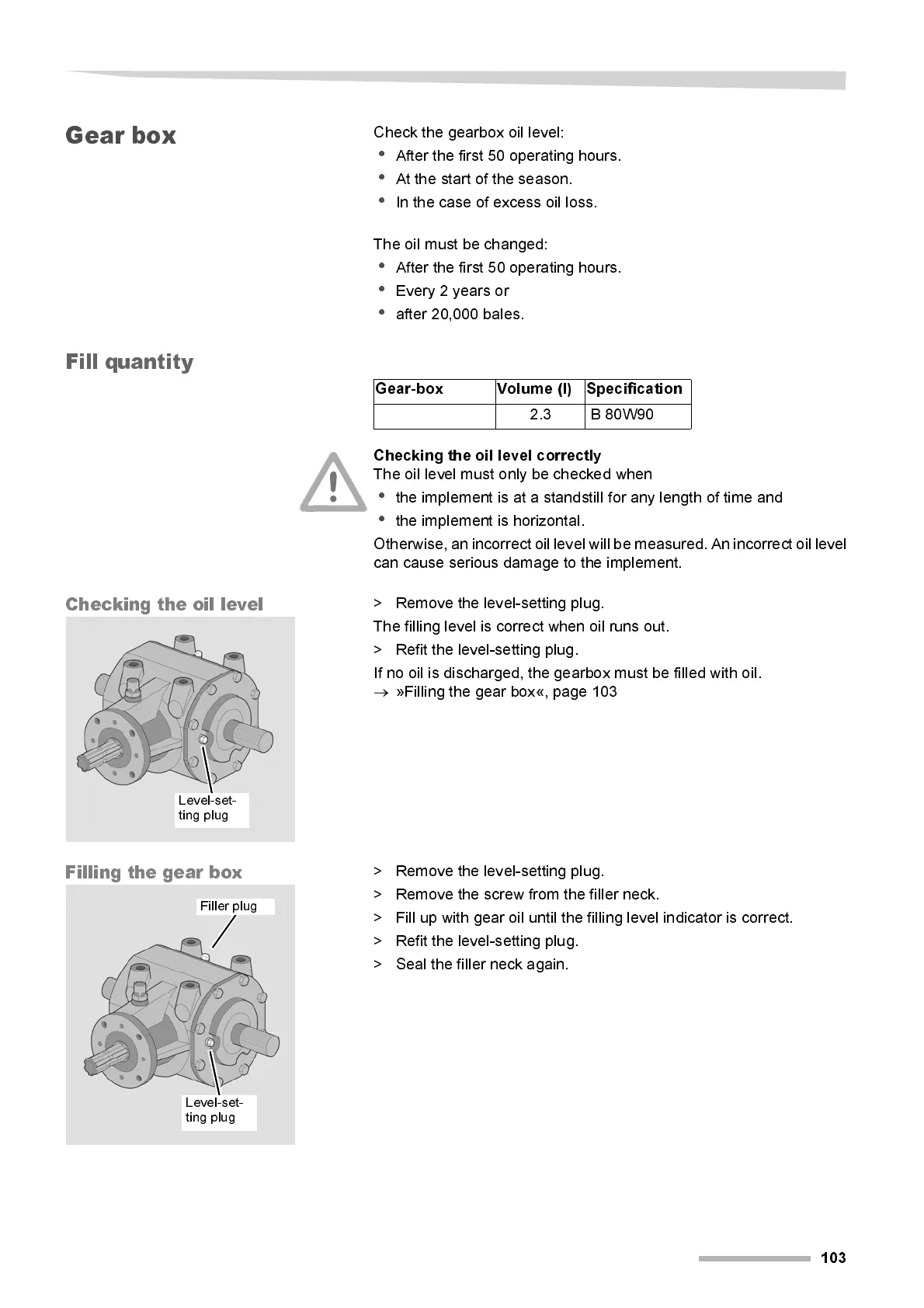

Gear box
Check the gearbox oi l l evel:
•
After the fir st 50 operati ng hours.
•
At the start of the season.
•
In the case of excess oil loss.
The oil must be changed:
•
After the first 50 operating hours.
•
Every 2 years or
•
after 20,000 bales.
Fill quantity
Checking the oil lev el corr ectly
The oil level must only be checked when
•
the impl ement is at a standsti ll for any l ength of ti me and
•
the impl ement is horiz ontal.
Otherwise, an incorrect oil level will be meas ured. An incorrect oil level
can cause serious damage to the implement.
Checking the oil level
> Remove the level-setti ng pl ug.
The fi ll i ng l evel is correct w hen oil runs out.
> Refit the level-setting plug.
If no oil is discharged, the gearbox must be filled with oil.
→
»Fill i ng the gear box«, page 103
Filling the gear box
> Remove the level-setti ng pl ug.
> Remove the screw from the filler neck.
> Fill up with gear oil until the fill ing level indicator is correct.
> Refit the level-setting plug.
> Seal the fi l ler neck again.
Gear-box Volume (l) Specification
2.3 B 80W90
Level-set-
ting plug
Level-set-
ting plu g
Filler plug
