40
Hitching the implement

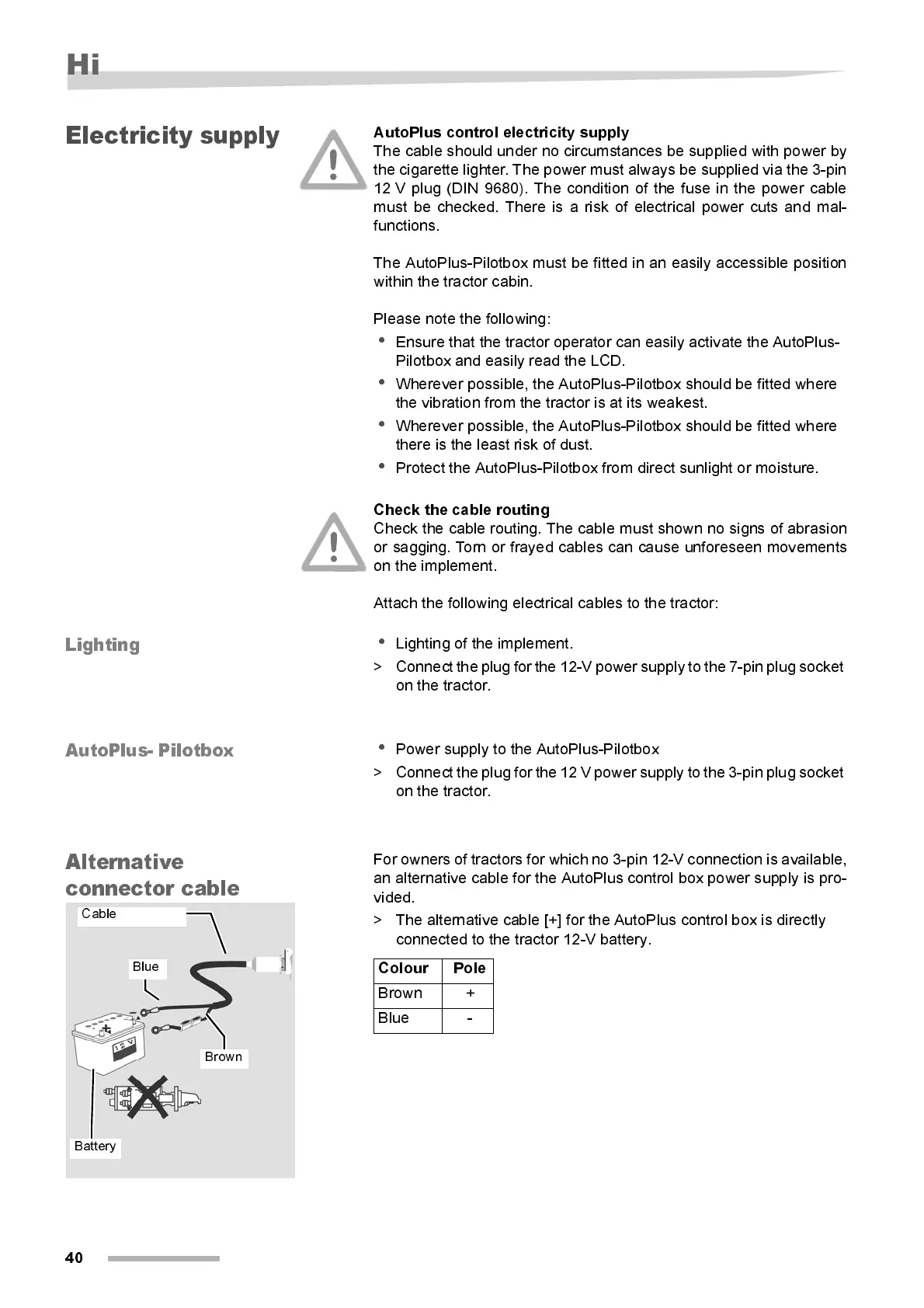

El ec t ric it y s up p ly
Aut oPlus control electri cit y supply
The cabl e shoul d under no cir cumstances be suppli ed wi th power by
the cigarette lighter. The power must always be supplied via the 3-pin
12 V plug (DIN 9680). The condition of the fuse in the power cable
must be checked. There is a risk of electrical power cuts and mal-
functions.
The AutoPl us-Pil otbox must be fi tted in an easily accessible position
within the tractor cabin.
Pl ease note the foll ow i ng:
•
Ensure that the tractor operator can easily activate the AutoPlus-
Pilotbox and easily read the LCD.
•
Wherever possible, the AutoPlus-Pilotbox should be fitted where
the vibration from the tractor is at its weakest.
•
Wherever possible, the AutoPlus-Pilotbox should be fitted where
there is the least risk of dust.
•
Protect the AutoPlus-Pilotbox from direct sunlight or moisture.
Check the cable routing
Check the cabl e routing. The cable must shown no si gns of abrasi on
or sagging. Torn or f rayed cables can cause unforeseen movements
on the implement.
Attach the following electrical cables to the tractor:
Lighting
•
Lighting of the implement.
> Connect the plug for the 12-V power supply to the 7-pin plug socket
on the tractor.
AutoPlus- Pilotbox
•
Power suppl y to the AutoPl us-Pi lotbox
> Connect the plug for the 12 V power supply to the 3-pin plug socket
on the tractor.
Alternative
conne ctor ca bl e
For owners of tractors for which no 3-pin 12-V connection is available,
an alter nati ve cable for the AutoPl us control box pow er suppl y i s pro-
vided.
> The alternative cable [+] for the AutoPlus control box is directly
connected to the tractor 12-V batter y.
Battery
Cable
Blue
Brown
Colour Pole
Brown +
Blue -
