Hitching the implement
39

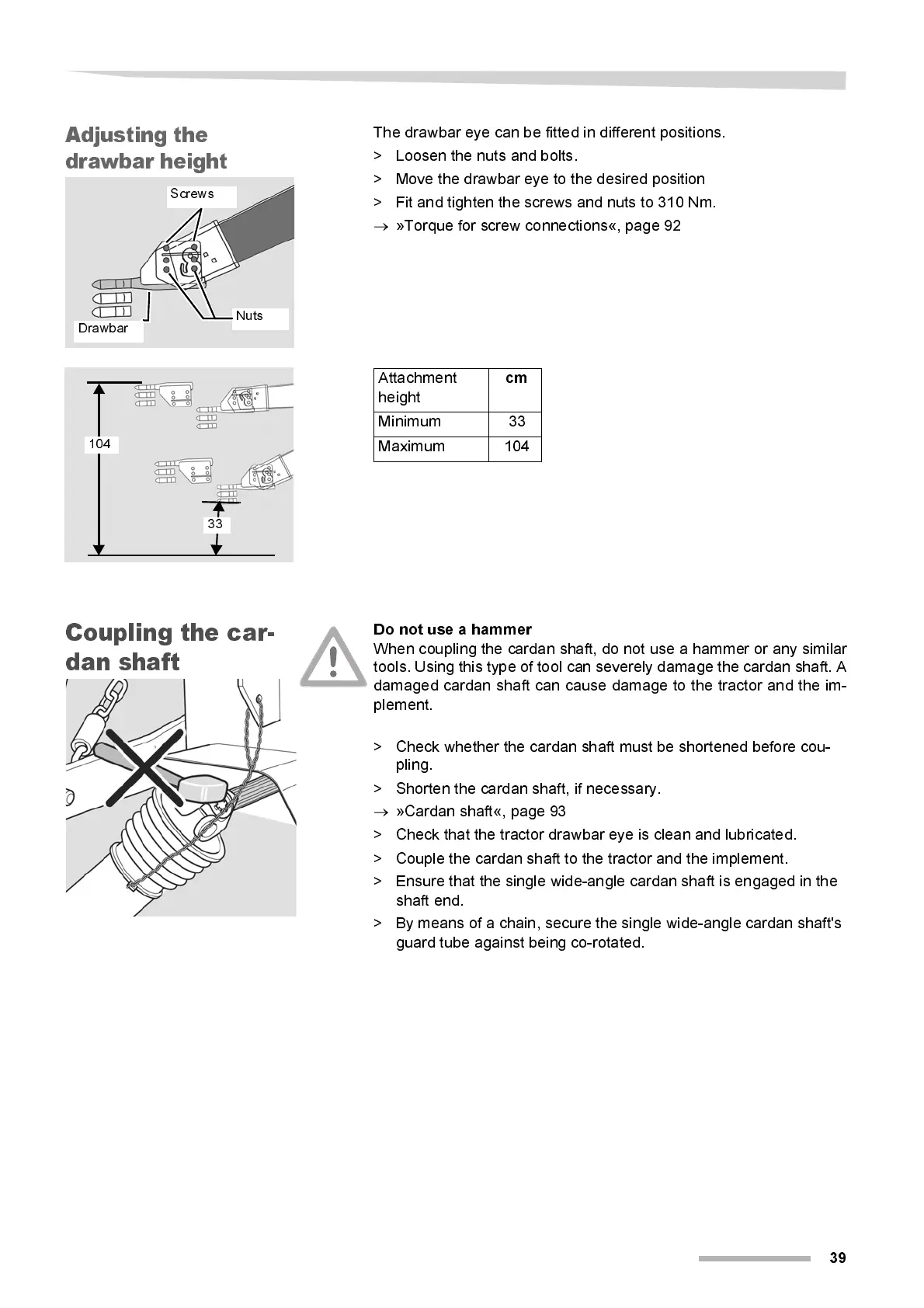

Adjusting the
draw bar he ig ht
The drawbar eye can be fitted in different positions.
> Loosen the nuts and bolts.
> Move the drawbar eye to the desired position
> Fit and tighten the screws and nuts to 310 Nm.
→
»Torque for screw connections«, page 92
Coupling the car-
dan shaft
Do not use a hammer
When coupl i ng the cardan shaft, do not use a hammer or any si mi l ar
tools. Using this type of tool can severely damage the cardan shaft. A
damaged cardan shaft can cause damage to the tractor and the im-
plement.
> Check whether the cardan shaft must be shortened before cou-
pling.
> Shorten the cardan shaft, if necessary.
→
»Cardan shaft«, page 93
> Check that the tractor drawbar eye is clean and lubricated.
> Couple the cardan shaft to the tractor and the implement.
> Ensure that the single w i de-angl e cardan shaft is engaged in the
shaft end.
> By means of a chain, secure the single wide-angle cardan shaft's
guard tube against being co-rotated.
Screws
Nuts
Drawbar
Attachment
height
cm
Minimum 33
Maximum 104
104
33
