AutoPlus- Pilotbox
Protect ing electr ical parts against m oist ure
The AutoPlus-Pilotbox, control box and electrical plug connections
must be protected against damp an d penetrating moisture. Dampness
in electronic devices can lead to leakage current, which results in mal-
function.
The central functi ons and sett ings of the baler are controlled, stored
and issued by the AutoPlus-Pilotbox.

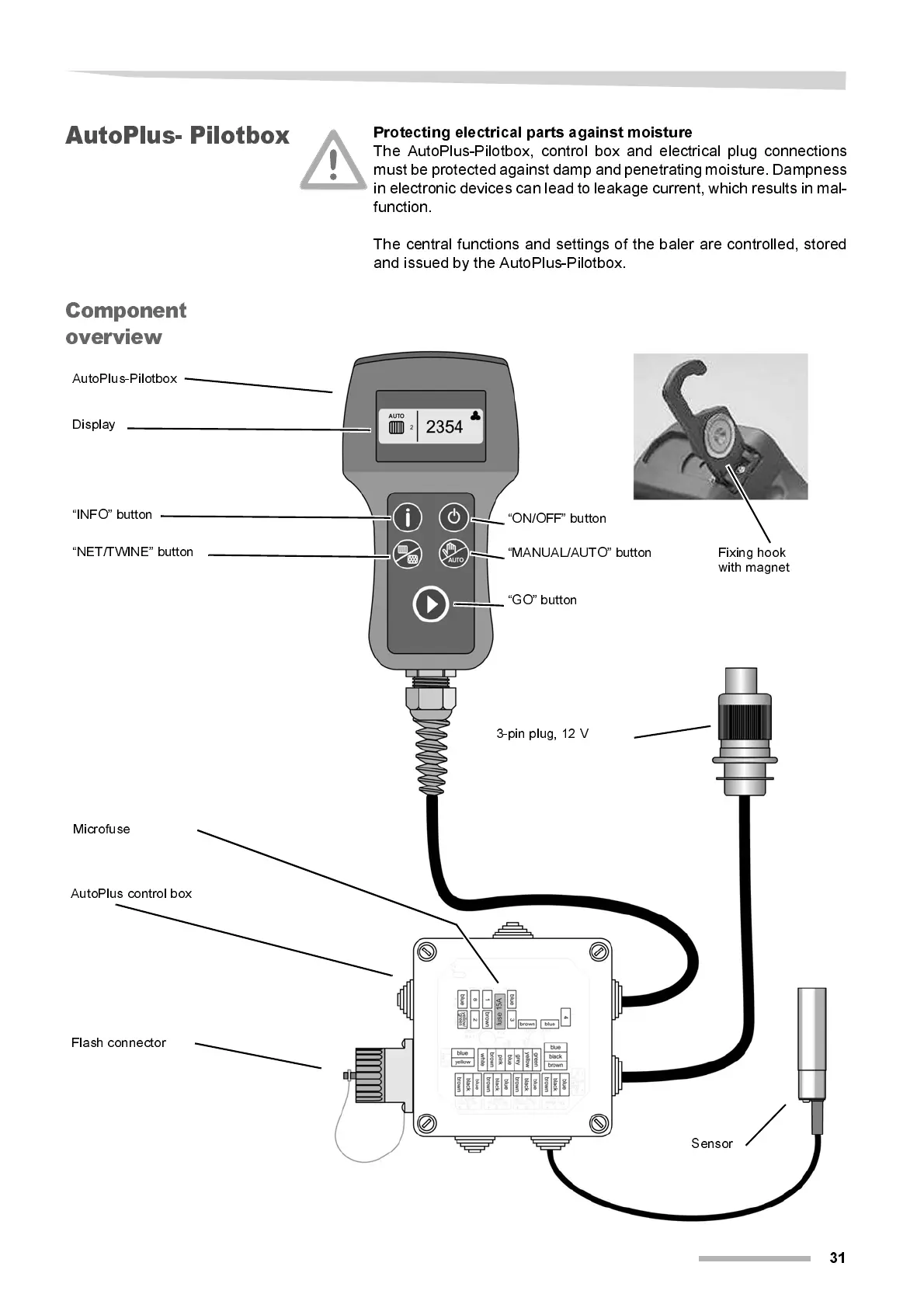

Component
overview
Fixing hook
with magnet
3-pin plug, 12 V
AutoPlus-Pilotbox
AutoPlus control box
Sensor
Flash connector
“INFO” button
“ON/OFF” button
“NET/TWINE” button
“MANUAL/AUTO” button
“GO” button
Display
Microfuse
