24
Familiarise yourself with the device

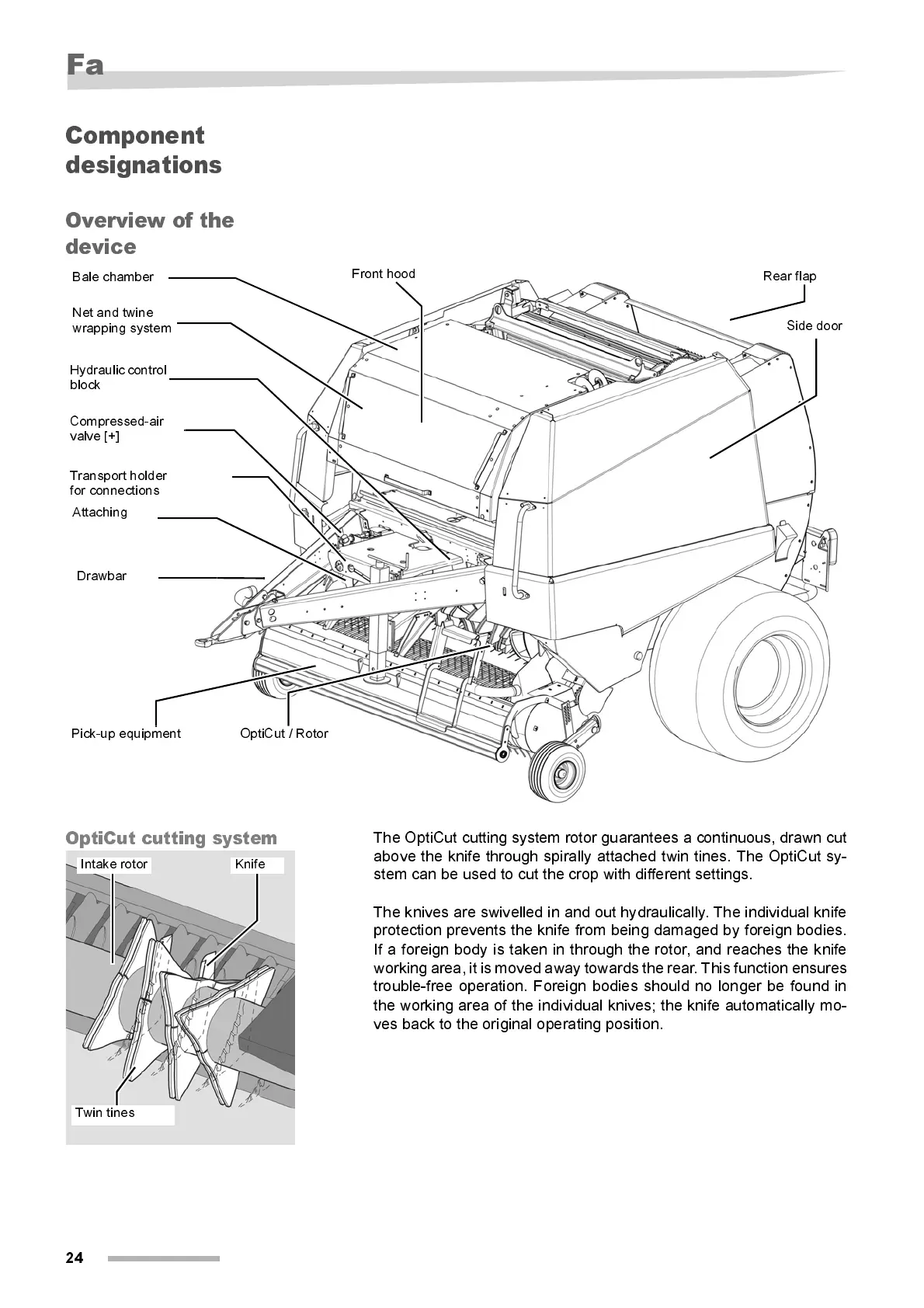

Component
designations
Overview of the
device
OptiCut cutting system
The OptiCut cutting system rotor guarantees a continuous, drawn cut
above the knife t hrough spiral ly attached twin tines. The OptiCut sy-
stem can be used to cut the crop with different settings.
The kni ves are swi vell ed i n and out hy draul icall y. T he i ndi vidual kni fe
protecti on prevents the knife from being damaged by f oreign bodi es.
If a foreign body is taken in through the rotor, and reaches the knife
working area, it is mov ed away towards the rear . This function ensures
trouble-free operation. Foreign bodies should no longer be found in
the w orking ar ea of the i ndividual kni ves; the knife automati call y mo-
ves back to the ori gi nal operati ng posit i on.
Pick-up equipment
Attaching
Drawbar
Hydraulic control
block
Bale chamber
Rear flap
OptiCut / Rotor
Net and twine
wrapping system
Compressed-air
valve [+]
Front hood
Transport holder
for connections
Side door
Intake rotor Knife
Twin tines
