44
Hitching the implement
Pneumatic
brake [+]
Clean the pneumati c system
Prevent any di r t f rom entering the pneumati c system. T he pneumati c
system can otherwise be seriously damaged. Material damage and in-
juries to personnel may be caused.
No water in the compr essed-air cir cuit
Ensure that there is no water in the compressed-air circuit. Otherwise
the braking capacity may be affected. This may cause accidents, ma-
terial damage and injury to personnel.
Pneumatic couplings are only avail abl e if the i mplement was order ed
with compressed-air brakes as addi ti onal equi pment.
> Check that the quick-release couplings are clean.
> Connect the quick-release couplings for the pneumatic tubes to the
tractor's pneumatic retainers.

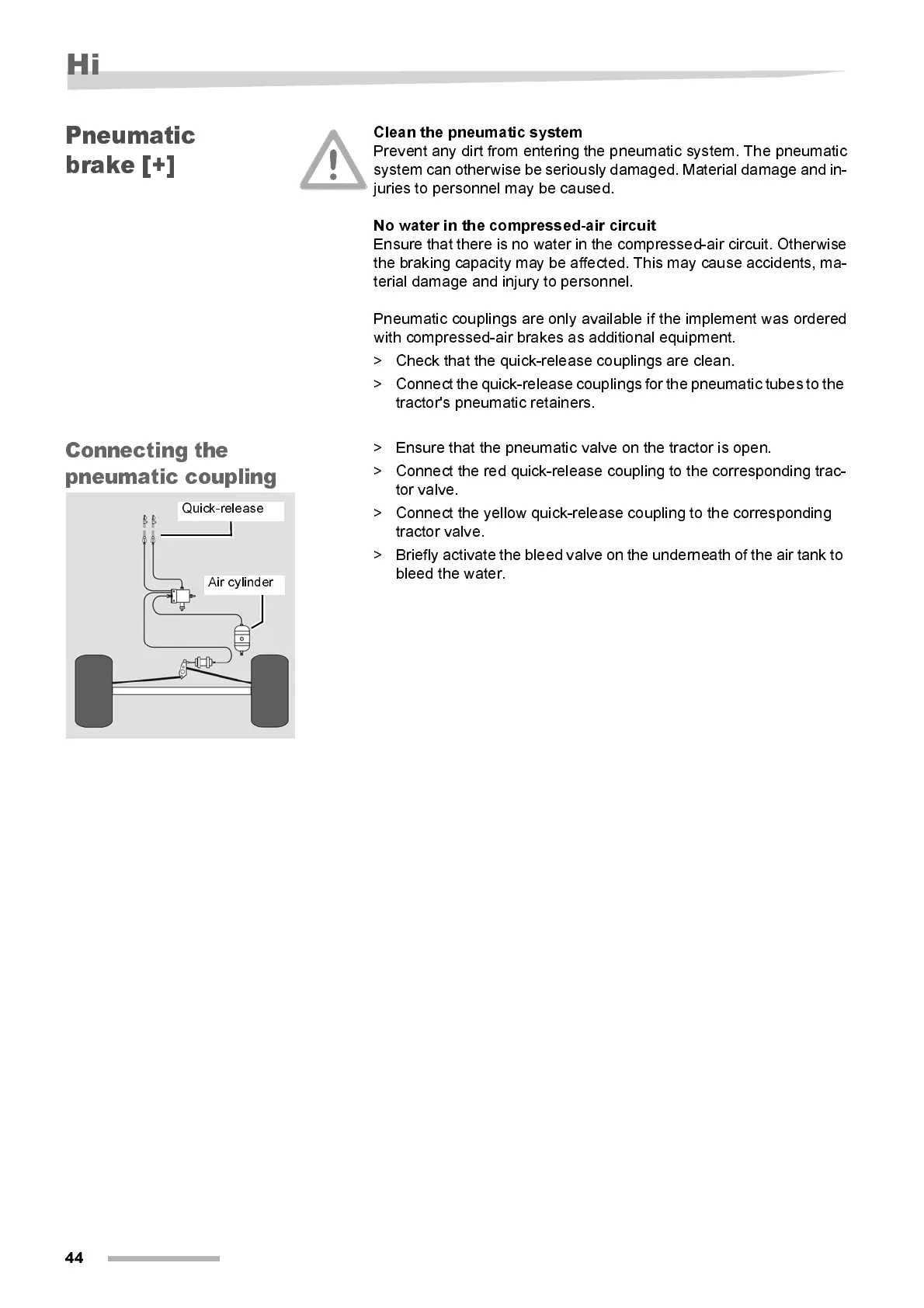

Connecting the
pneum a tic cou pl in g
> Ensure that the pneumati c val ve on the tractor i s open.
> Connect the red quick-release coupling to the corresponding trac-
tor valve.
> Connect the yellow quick-release coupling to the corresponding
tractor valve.
> Briefly activa te the bleed valve o n the underneath of the air tank to
bleed the water.
Quick-release
Air cylinder
