Maintenance
113

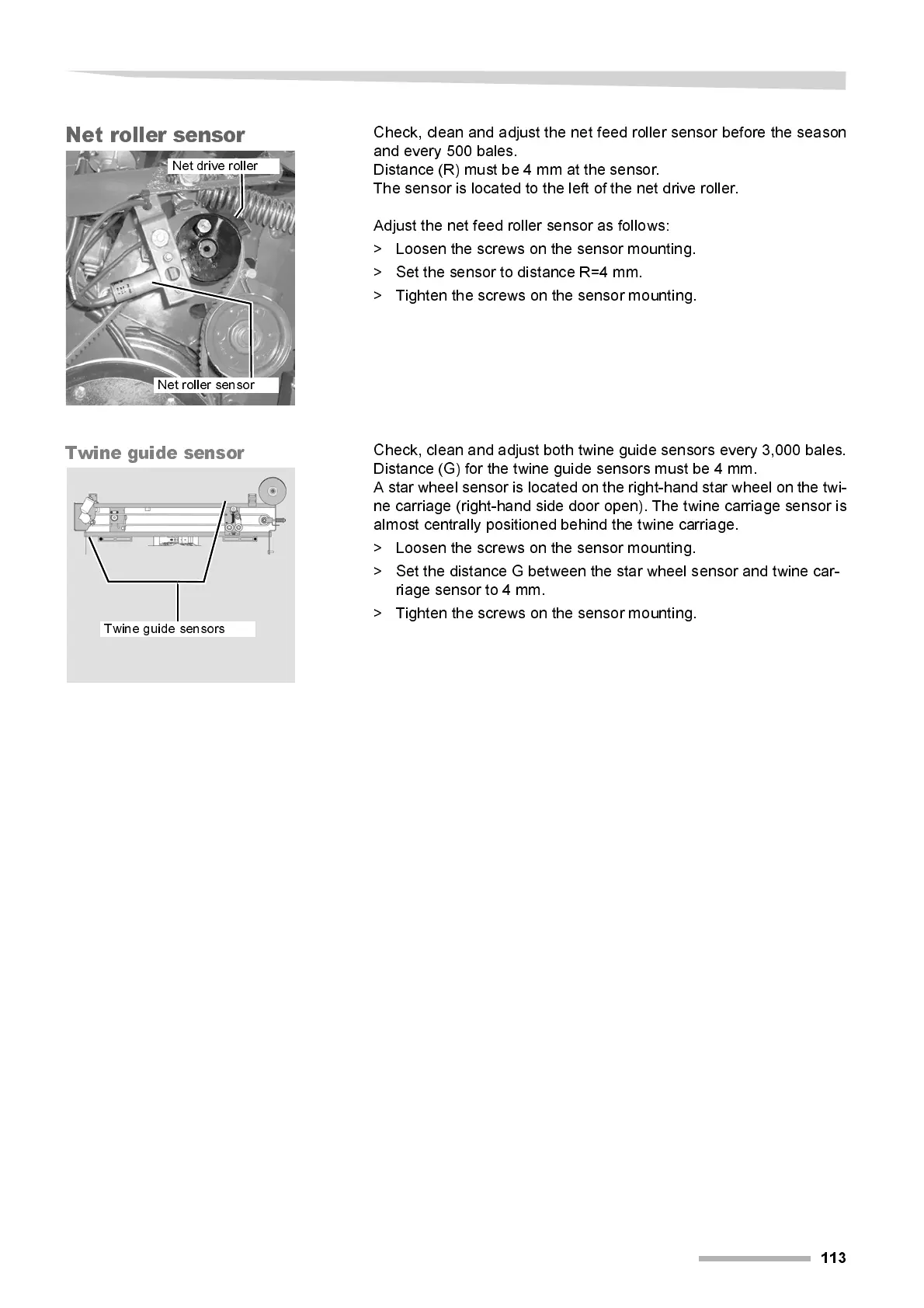

Net rol le r sens or
Check, clean and adjust the net feed rol ler sensor before the season
and every 500 bales.
Di stance (R) must be 4 mm at the sensor.
The sensor is located to the left of the net drive roller.
Adjust the net feed rol l er sensor as foll ow s:
> Loosen the screws on the sensor mounting.
> Set the sensor to di stance R=4 mm.
> Ti ght en the screws on the sensor mounti ng.
Twine guide sensor
Check, clean and adjust both twine guide sensors every 3,000 bales.
Di stance (G) for the twi ne gui de sensors must be 4 mm.
A star wheel sensor is located on the right-hand star wheel on the twi-
ne carri age (r i ght- hand side door open). T he tw ine carri age sensor i s
almost centrally positioned behind the twine carriage.
> Loosen the screws on the sensor mounting.
> Set the distance G between the star wheel sensor and tw i ne car-
riage sensor to 4 mm.
> Ti ght en the screws on the sensor mounti ng.
Net roller sensor
Net drive roller
Twine guide sensors
