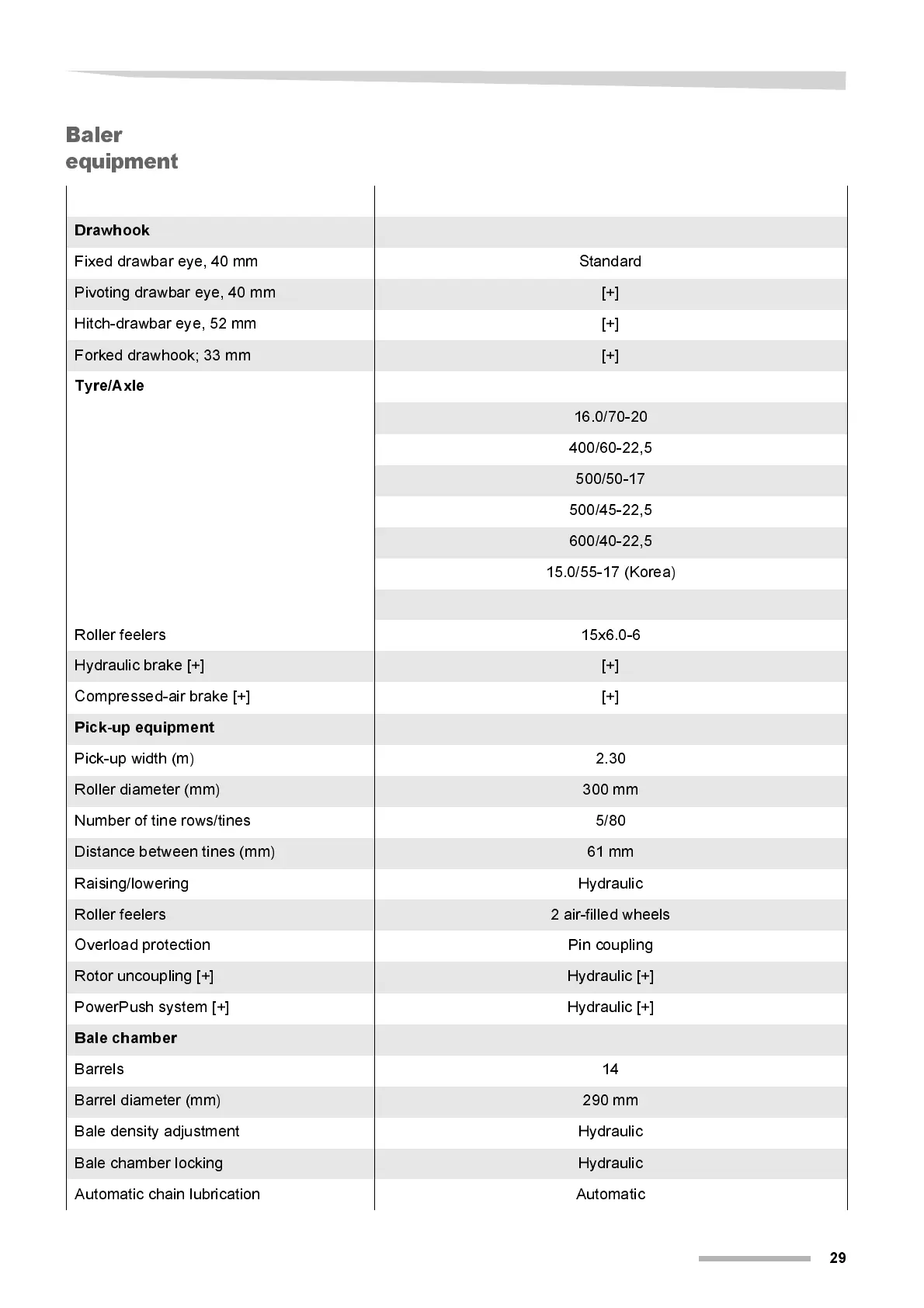

Vicon RF 2235 - Page 29

Familiarise yourself with the device
29
Baler
equipment
Drawhook
Fi xed draw bar eye, 40 mm Standard
Pivoting drawbar eye, 40 mm [+]
Hitch-drawbar eye, 52 mm [+]
Forked drawhook; 33 mm [+]
Tyre/Axle
16.0/70-20
400/60-22,5
500/50-17
500/45-22,5
600/40-22,5
15.0/55-17 (Korea)
Rol l er feel er s 15x6.0-6
Hydraulic brake [+] [+]
Compressed-air brake [+ ] [+]
Pick-up equipment
Pick - u p width ( m) 2.30
Rol l er di ameter (mm) 300 mm
Number of tine rows/tines 5/80
Distance between tines (mm) 61 mm
Raising/lowering Hydraulic
Rol l er feel er s 2 air-filled wheels
Overload protection Pin coupling
Rotor uncoupli ng [+] Hydraulic [+]
Power Push system [+] Hydrauli c [+ ]
Bale chamber
Barrels 14
Barrel di ameter (mm) 290 mm
Bal e density adjustment Hydraul i c
Bal e chamber l ocking Hydraulic
Automatic chain l ubricati on Automatic
