56
Preparing for use

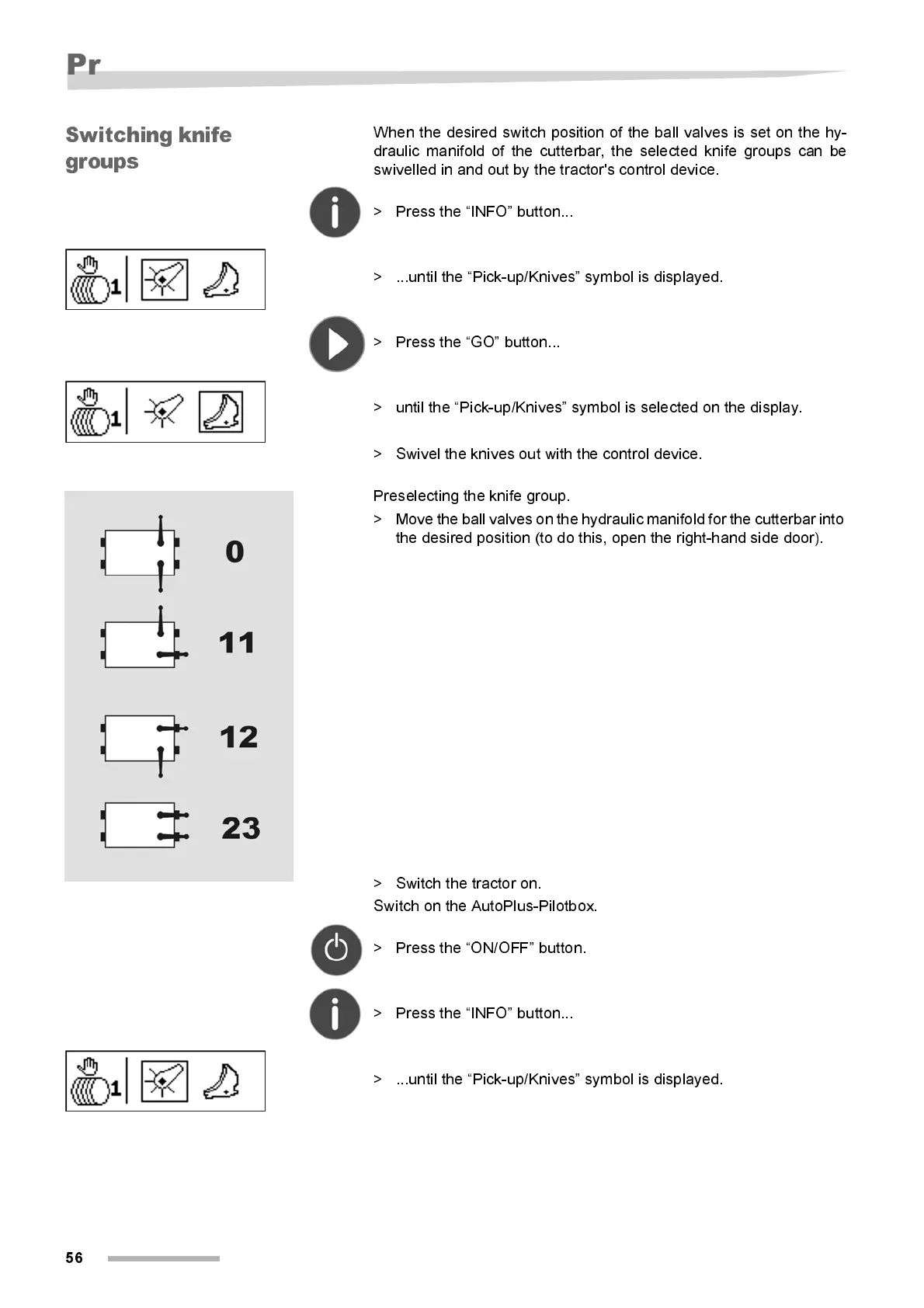

Sw itc hi ng kn ife
groups
When the desired switch position of the ball valves is set on the hy-
draulic manifold of the cutterbar, the selected knife groups can be
swivelled in and out by the tractor's control device.
> Press the “INFO” button...
> ...until the “Pick-up/Knives” symbol is displayed.
> Press the “GO” button...
> unti l the “Pi ck-up/Kni ves” symbol is selected on the displ ay.
> Swivel the knives out with the control device.
Preselecting the knife group.
> Move the ball valves on the hydraulic manifold for the cutterbar into
the desired position (to do this, open the right-hand side door).
> Switch the tractor on.
Switch on the AutoPlus-Pilotbox.
> Press the “ON/OFF” button.
> Press the “INFO” button...
> ...until the “Pick-up/Knives” symbol is displayed.
