Rev AB Installation of Printhead and Ink Cartridge 3-17
Videojet 8520 Operator Manual
5 Fasten the optical fibre using the screws with nut and serrated lock
washer into the head plate. Make sure that the optical fibre is aligned
flush with the bottom of the head plate. Lock with the nut.
6 Use the relevant hole on the head plate depending on the direction of
printing.

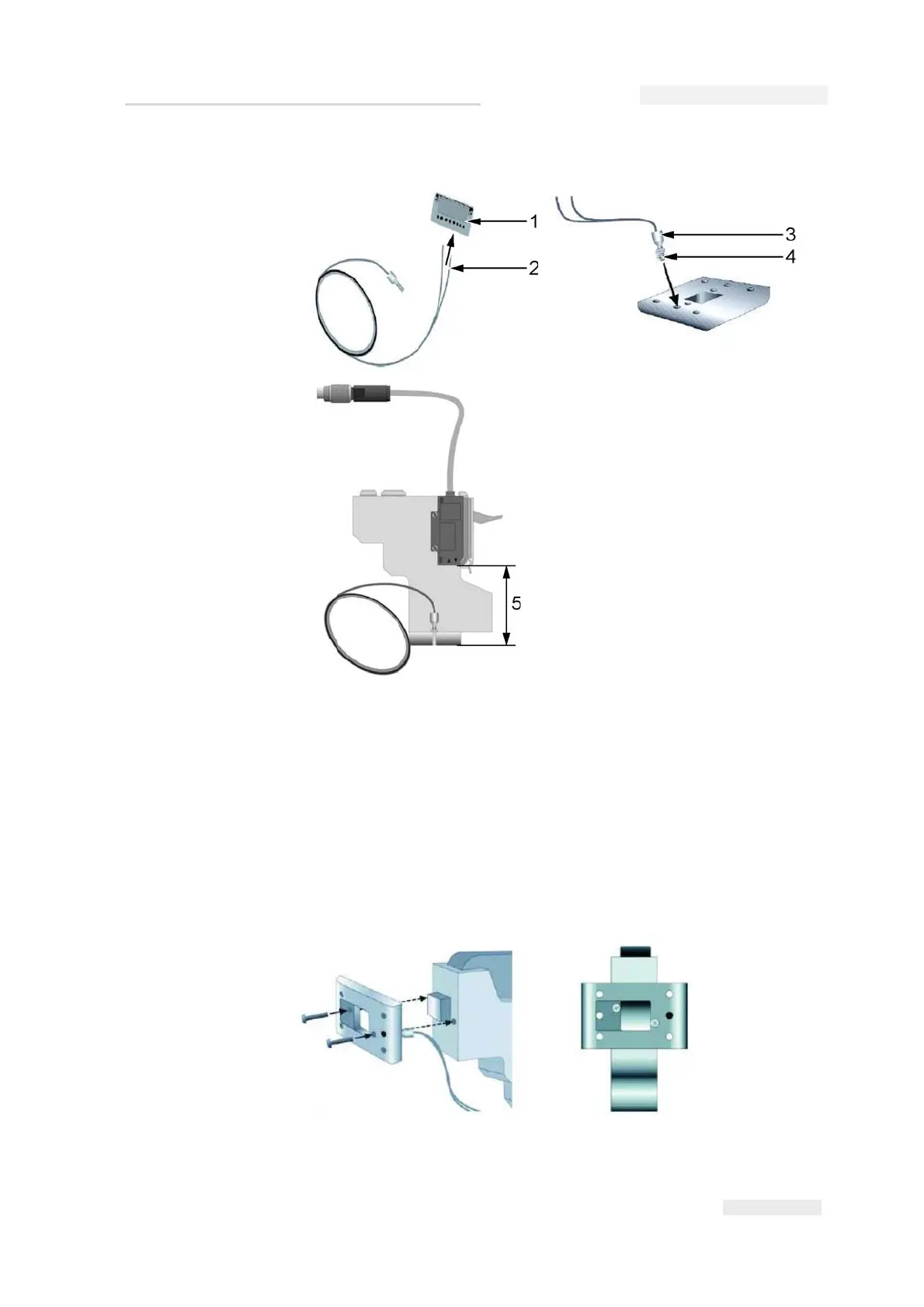

Figure 3-31: Cutting the optical fibre to size
1. Cutter
2. Optical fibre
3. Serrated lock washer
4. Nut
5. Length of the optical fibre
