3-30 Installation of the Parallelogram (Optional) Rev AB
Videojet 8520 Operator Manual

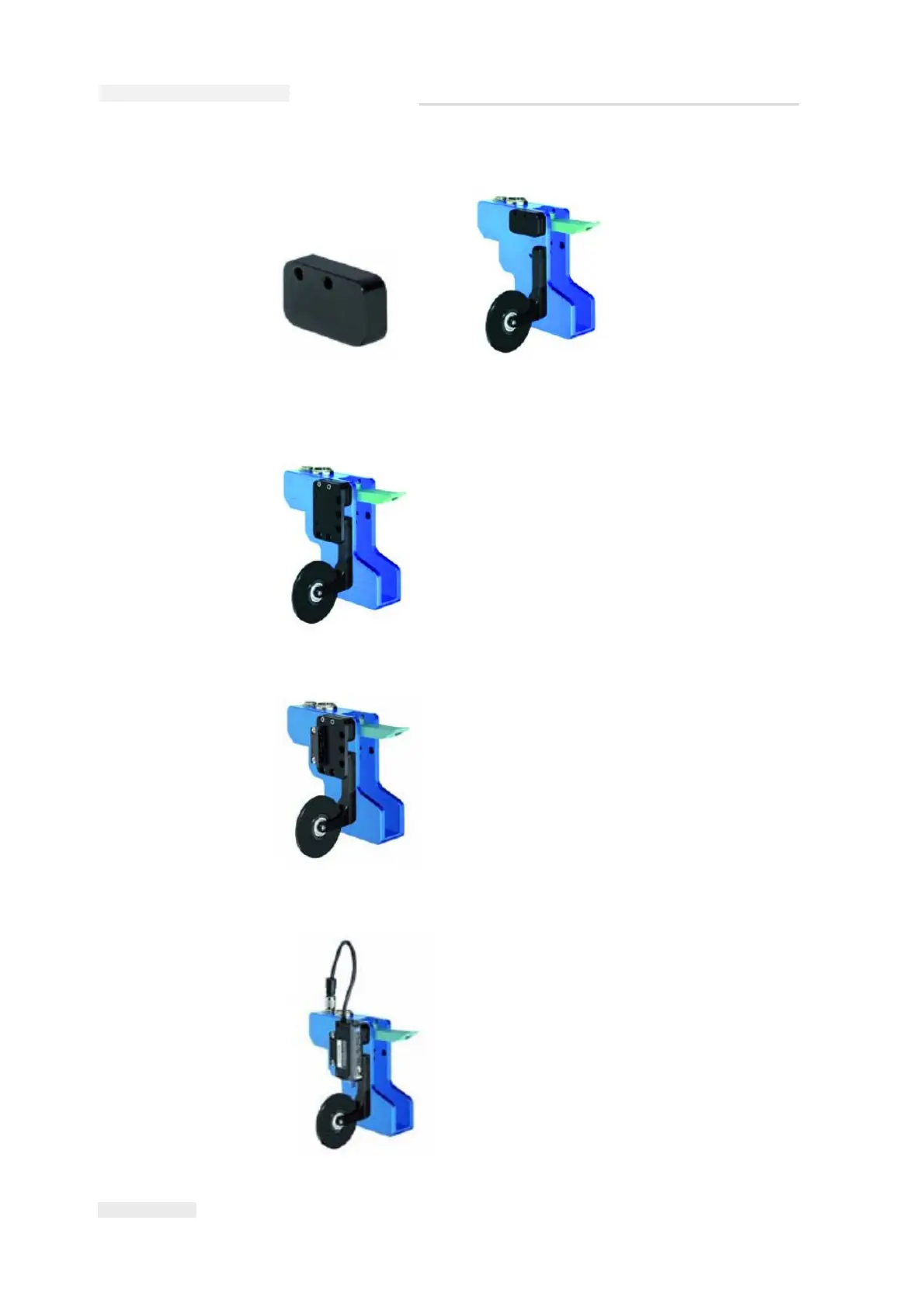

1 Fit the spacer plate.
2 Fasten the adapter and spacer plate (two size M3 screws, 15 mm (max)
long).
3 Screw on the installation mount.
4 Attach and connect the sensor.
New spacer plate
