Multi-touch Mode

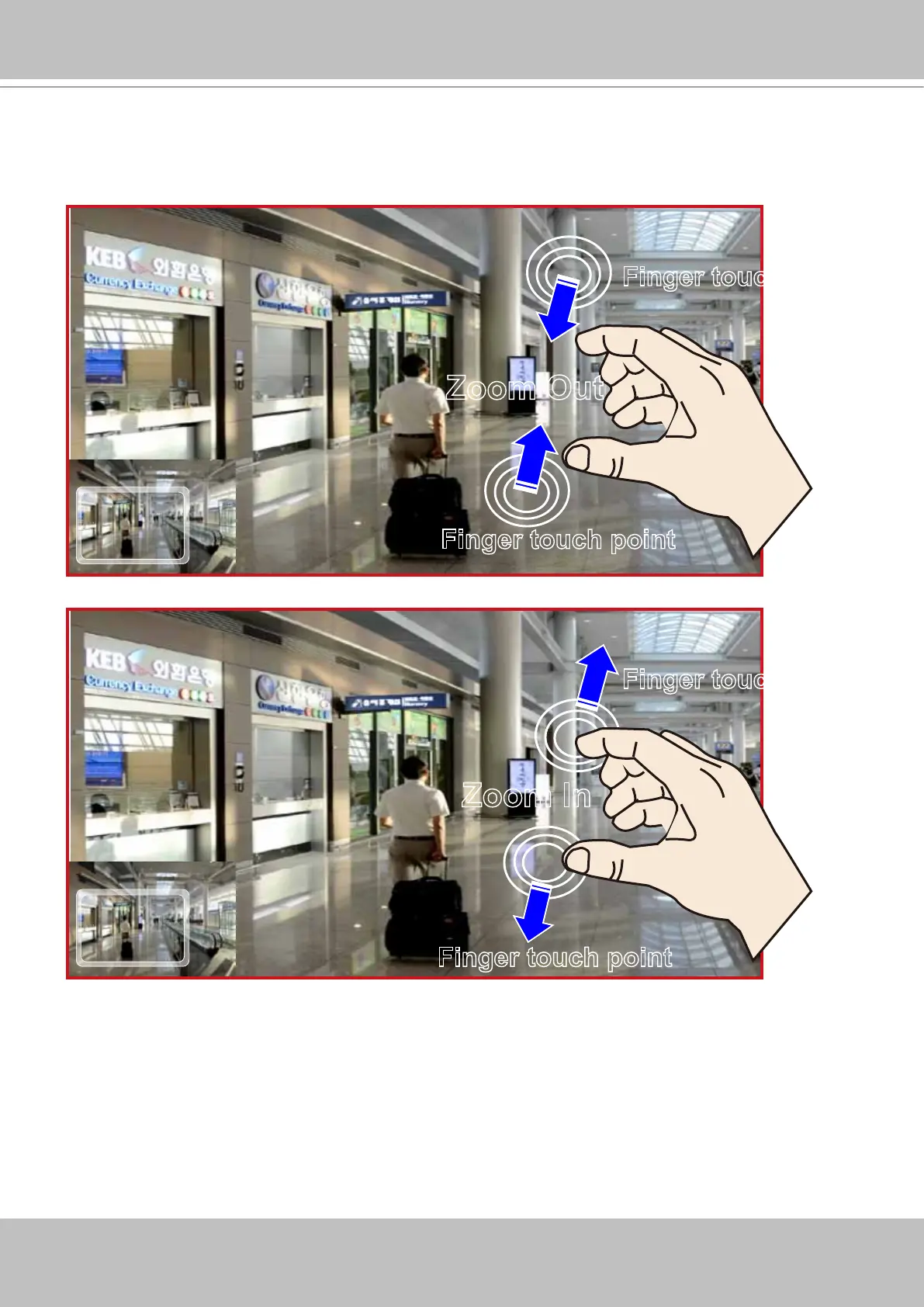

VAST also supports advanced multi-touch mode for PiP. You can easily zoom in or zoom out the image

by touching the multi-touch monitor with two ngers.

Zoom Out

Finger touch point

Zoom In

Finger touch point
