User's Manual - 115

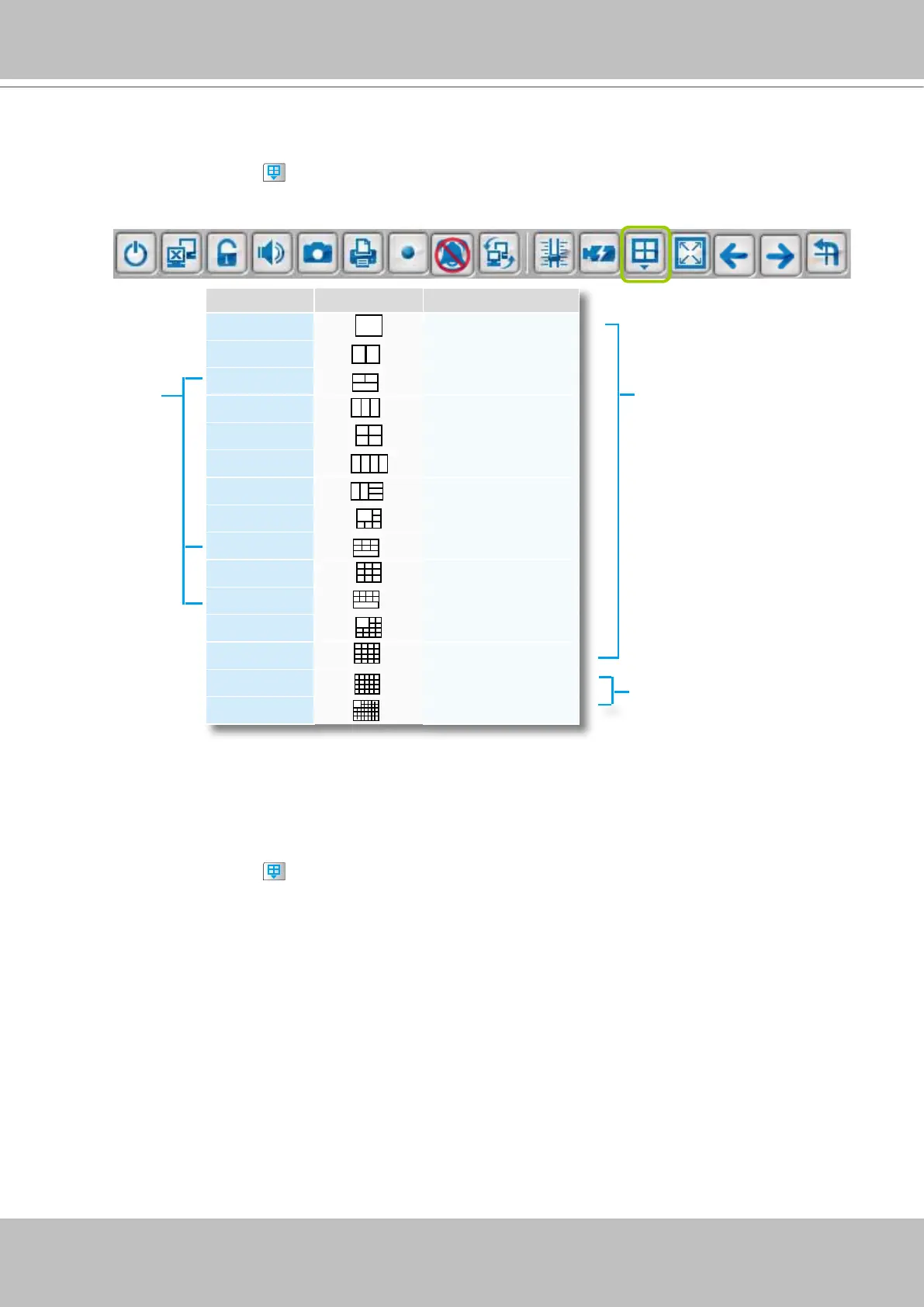

Congure Layout Mode
Click the Layout button on the quick access bar. Select a desired layout mode, and the layout
window will be changed accordingly. Below we illustrate 15 types of layout modes and the corresponding
page numbers:
Layout mode Description No. of Video page
1 x 1
32
2V
16
1P+2
20
3V
11
2 x 2
8
4V
8
2V+3
7
1 + 5
4
1P+6
8
3 x 3
3
1P+8
6
1 + 12
2
4 x 4
2
5 x 5
1
1 + 31
1
More than 1 video page;
rotation function is enabled
Only 1 video page;
rotation function is disabled
P-PTZ modes
Congure Layout Mode
Click the Layout button on the quick access bar. Select a desired layout mode, and the layout
window will be changed accordingly. Below we illustrate 11 types of layout modes and the corresponding
page numbers:
