296 - User's Manual
Appendix C Support for Digital I/O
Modbus TCP Modules
The VAST revision 1.9, supports Advantech's I/O Modbus TCP Modules 6000 series. The VAST
server can receive digital inputs and trigger digital outputs via the I/O modules.
The Advantech I/O modules come with configuration utilities, such as the Adam/Apax.NET.
Connect the DI/DO wires to the module and the Ethernet wire from the module to the local
network.
Proceed with the following to congure the I/O module:

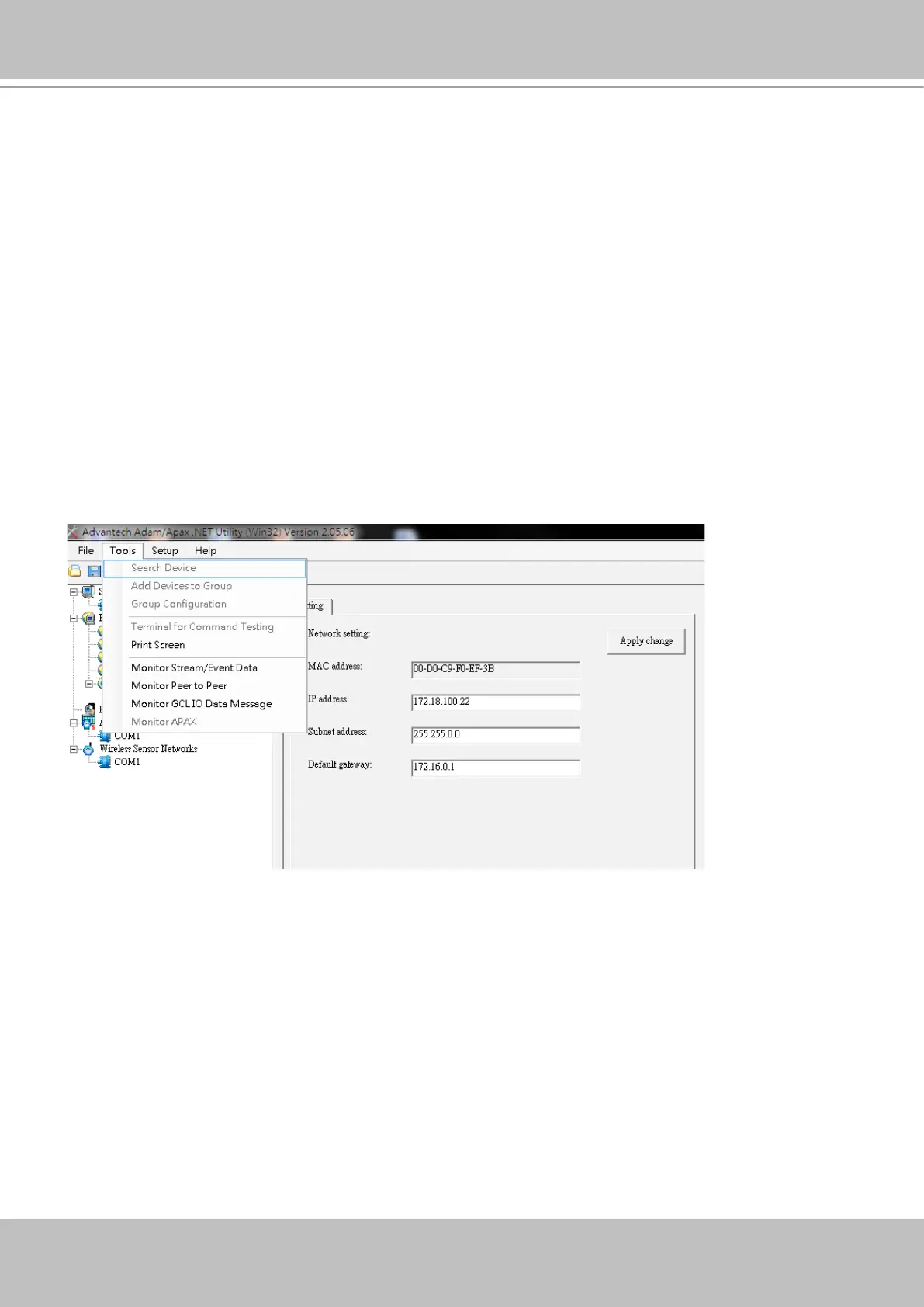

1. Use the Search function to locate the I/O module on the network.
2. It is recommended to congure a static IP for the I/O module.
