PLC Software Function - SoftPLC
 The SSW-06 Soft-Starter allows the implementation of programmab-
lelogiccontrollersoftwareinladderlanguage,theSoftPLC,with
an applicative program capacity of 1 Kbyte.
With theSoftPLC,interlockinglogicsbetweendigitalinputsand
outputs, analog outputs, motor starting logics, among others, can
be created.
ThisSoftPLCisprogrammablethroughtheWLPsoftware,according
totheWLPmanual.

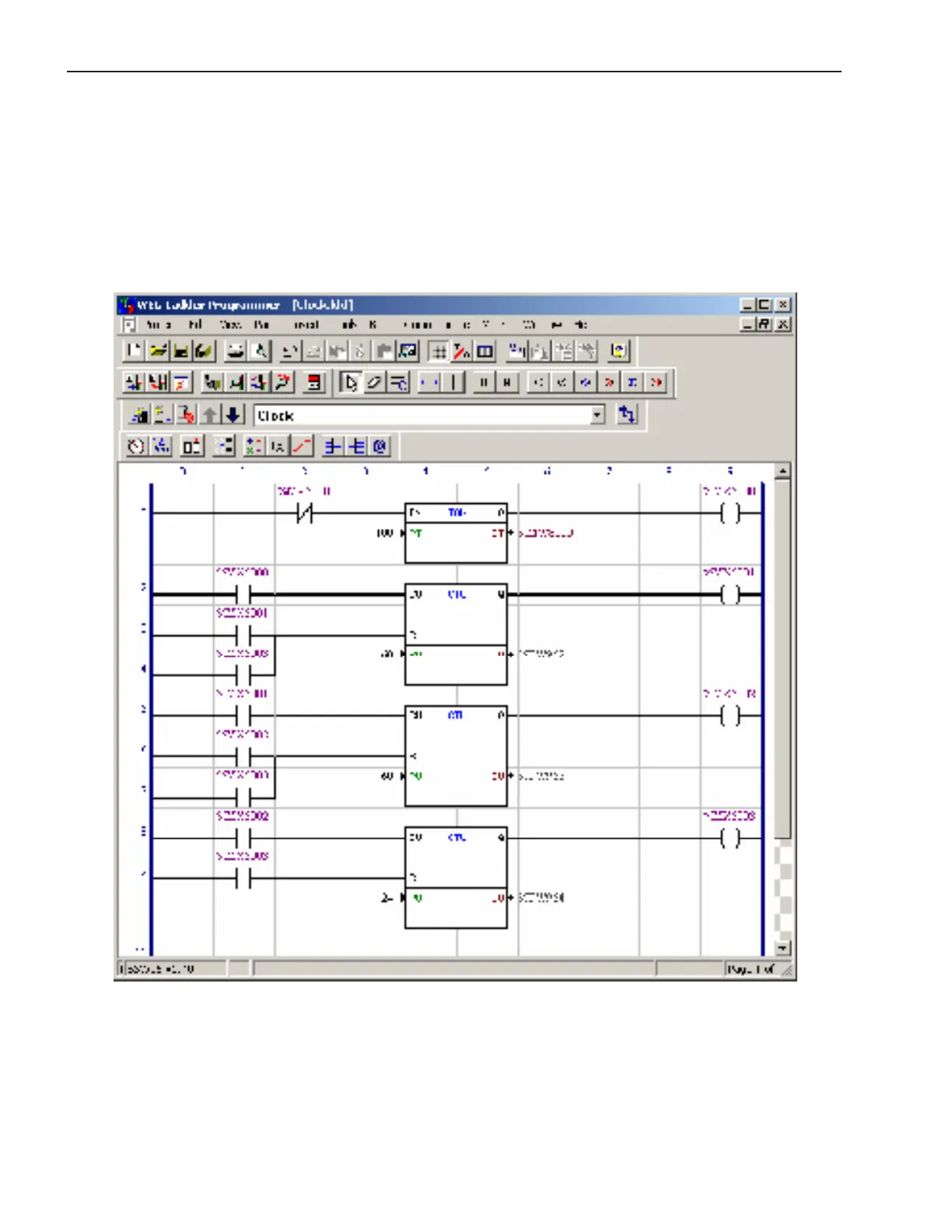

Figure 2.1 - Example of SoftPLC software with the WLP editing tool
The example above is the implementation of a clock with hours,
minutes and seconds. The hours are showed in parameter P954,
the minutes in parameter P953 and the seconds in parameter P952.
