WEG SSW-06 User Manual

CHAPTER 5 - START-UP
86
Press the key
Press the key
Press the key
Press the key
Press the key
Press the key again

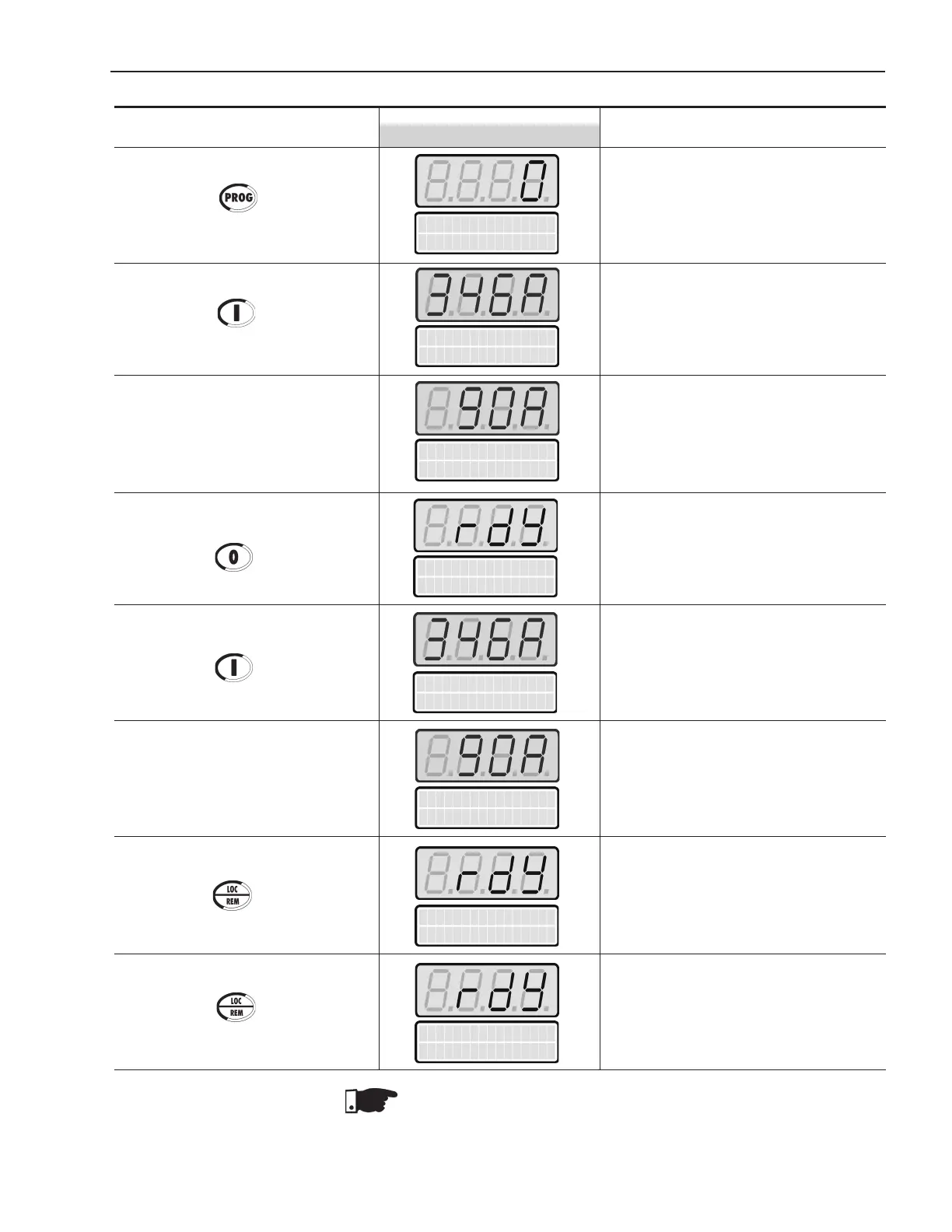

    ACTION   LEDDISPLAY   DESCRIPTION
        LCDDISPLAY
This is only a Read Parameter
Motor accelerates and a high value of
current is reached.
Then the current decreases down to a
value required by the load.
Motor decelerates until stopping by
coast to rest. Time to stop depends on
load inertia and friction.
Motor accelerates and a high value of
current is reached.
Then the current decreases up to a
value required by the load.
Soft-Starter is now controlled via ter-
minals (REMOTE). Motor decelerates
till stopping by the load inertia.
Soft-Starter is controlled again via
keypad(LOCAL).Motorremains
stopped.
Motor Current
P003=0A
Motor Current
P003=90A
SoftStarter
ready
Motor Current
P003=346A
Motor Current
P003=90A
Motor Current
P003=346A
SoftStarter
ready
SoftStarter
ready
NOTES!
Setting hints and suggestions for all types of controls and their uses
can be found in Chapter 7.
For start-up through voltage ramp refer to Item 7.1.1.
