WEG SSW-06 User Manual

CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
91
Range
[Factory Setting]
Parameter Unit Description / Notes
RL1...RL3 Status
P013=101
IndicatesonthekeypadLCDdisplaythestatusofthe3relayoutputs
of the control board. Number 1 stands for Active and 0 for Inactive,
in the following order:
 RL1,RL2,RL3.
ThekeypadLEDdisplayshowsthedecimalvaluethatcorresponds
to the status of the 3 digital outputs, where the status of each output
isconsideredonebitinthespeciedsequence:
Inactive=0
Active=1
 RL1statusisthemostsignicantbit.
 The5leastsignicantbitsarealways"0".
Example:
 RL1=Active;RL2=Inactive;RL3=Active
This is equivalent to the binary sequence:
10100000
Which corresponds to the decimal number 160.
 Theleastsignicantbitsarenotdisplayed.

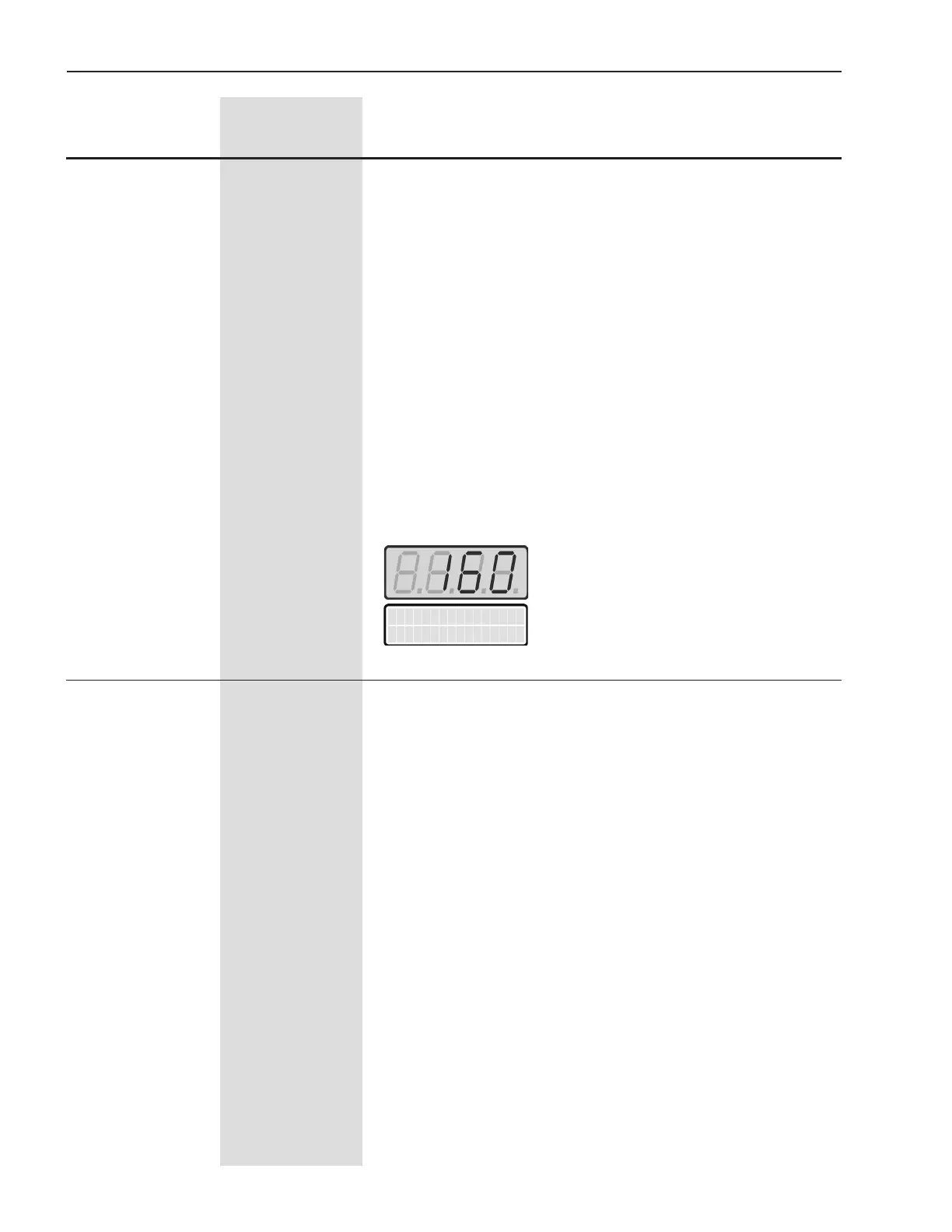

The Keypad displays will be:
P013 LCD=1,0
RL1toRL3Status LED=0to255
[ - ]
-
 Indicate the code of the last previous Faults.
 Fault Sequence:
Exy → P014 → P015 → P016 → P017 → P018 → P019
P014 0 to 99
LastFault [-]
-
P015 0 to 99
Second Previous [ - ]
Fault -
P016 0 to 99
Third Previous [ - ]
Fault -
P017 0 to 99
Fourth Previous [ - ]
Fault -
P018 0 to 99
Fifth Previous [ - ]
Fault -
P019 0 to 99
Sixth Previous [ - ]
Fault -
