Installation
2 Installation
2.1 Device Overview
3
5
6
7
4
1
8
2
10
9

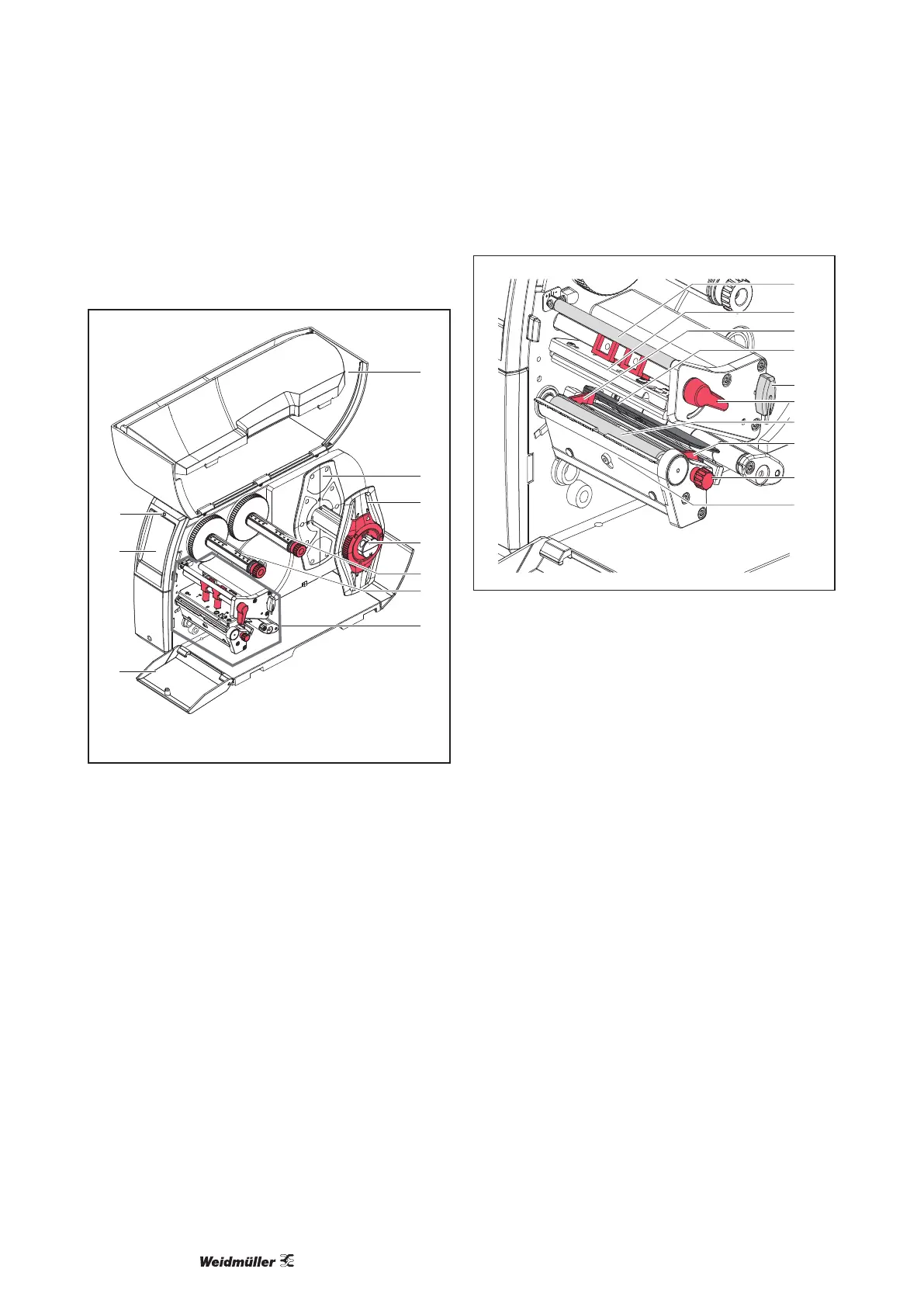

Figure 1 Overview
1 Cover
2 Margin stop
3 Margin stop
4 Roll retainer
5 Ribbon supply hub
6 Ribbon take-up hub
7 Print unit
8 Cover
9 Touchscreen display
10 LED “Power on”
12
14
18
13
16
11
15
17
19
13
Figure 2 Print unit - Devices with centered
media guiding
11 Ribbondeection
12 Printhead retainer with printhead
13 Guide
14 Label sensor
15 Allen key
16 Printhead locking lever
17 Print roller
18 Guide adjusting knob
19 Tear-o󰀨platecutterorperforationcutter
