3.2 Navigation in the Menu

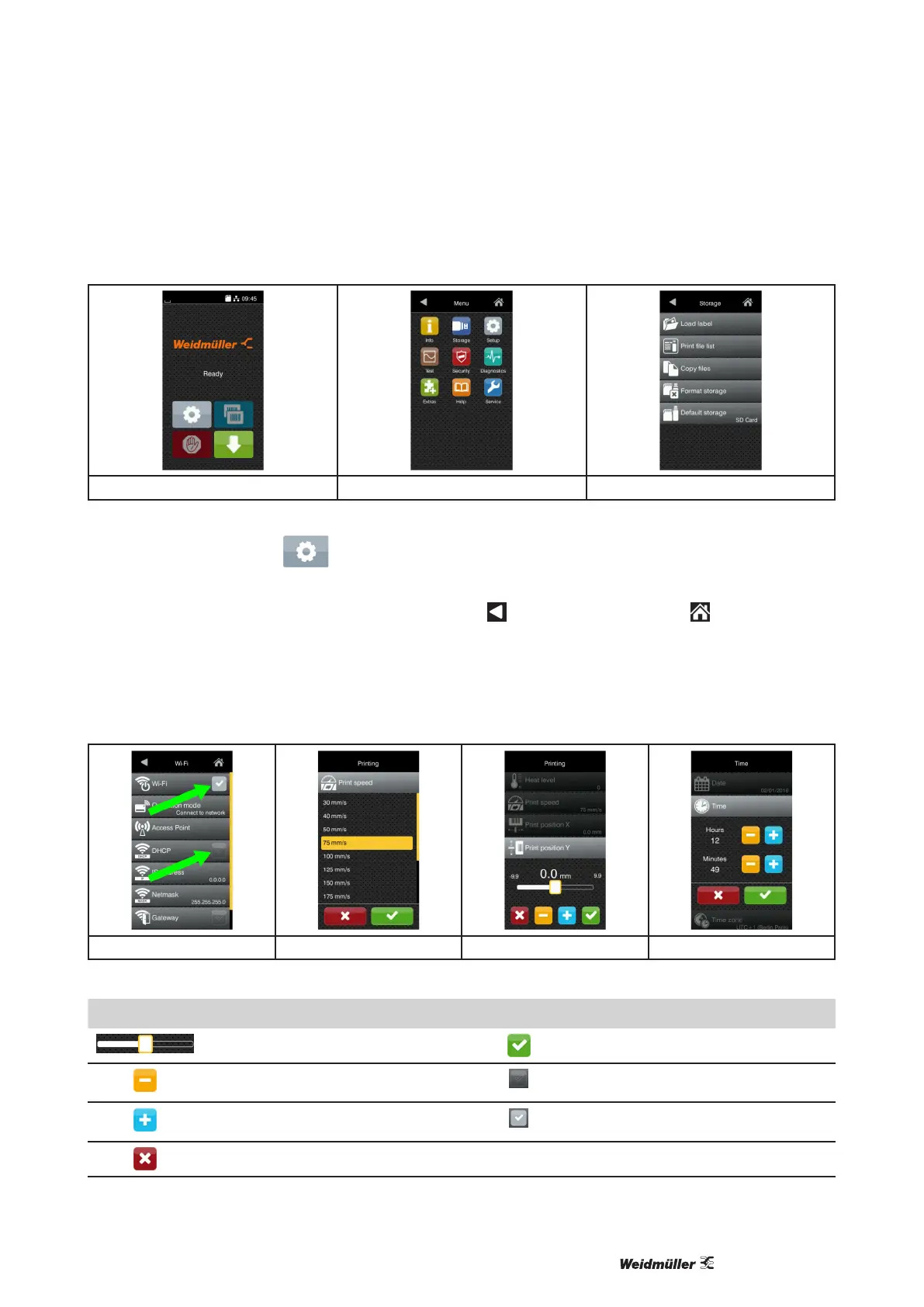

Start level Selection level Parameter/function level
Figure 8 Menu levels
• To open the menu select on the start screen.
• Select a theme in the selection level.
Several themes have substructures again with selection levels.
To return from the current level to the upper one select . To leave the menu select .
• Continue the selection until the parameter/function level is reached.
• Start a function. The printer will carry out the function possibly after a preparing dialogue.
- or -
Select a parameter to set. The setup possibilities are depending from the parameter type.
Logical parameters Selection parameters Numerical parameters Date/time
Figure 9 Samples for parameter setting
Symbol Function Symbol Function
Scroll bar for rough value setting Return with saving the setting
Decreasing the value step-by-step Parameter is disabled, touching
enables the parameter
Increasing the value step-by-step Parameter is enabled, touching
disables the parameter
Return without saving the setting
Table 4 Symbols
