4.4 Removing and installing the tear-o󰀨 plate
Toconverttheprinterforuseinanotheroperatingmode,atear-o󰀨platemayneedtobeinstalled.
1 1
3
2

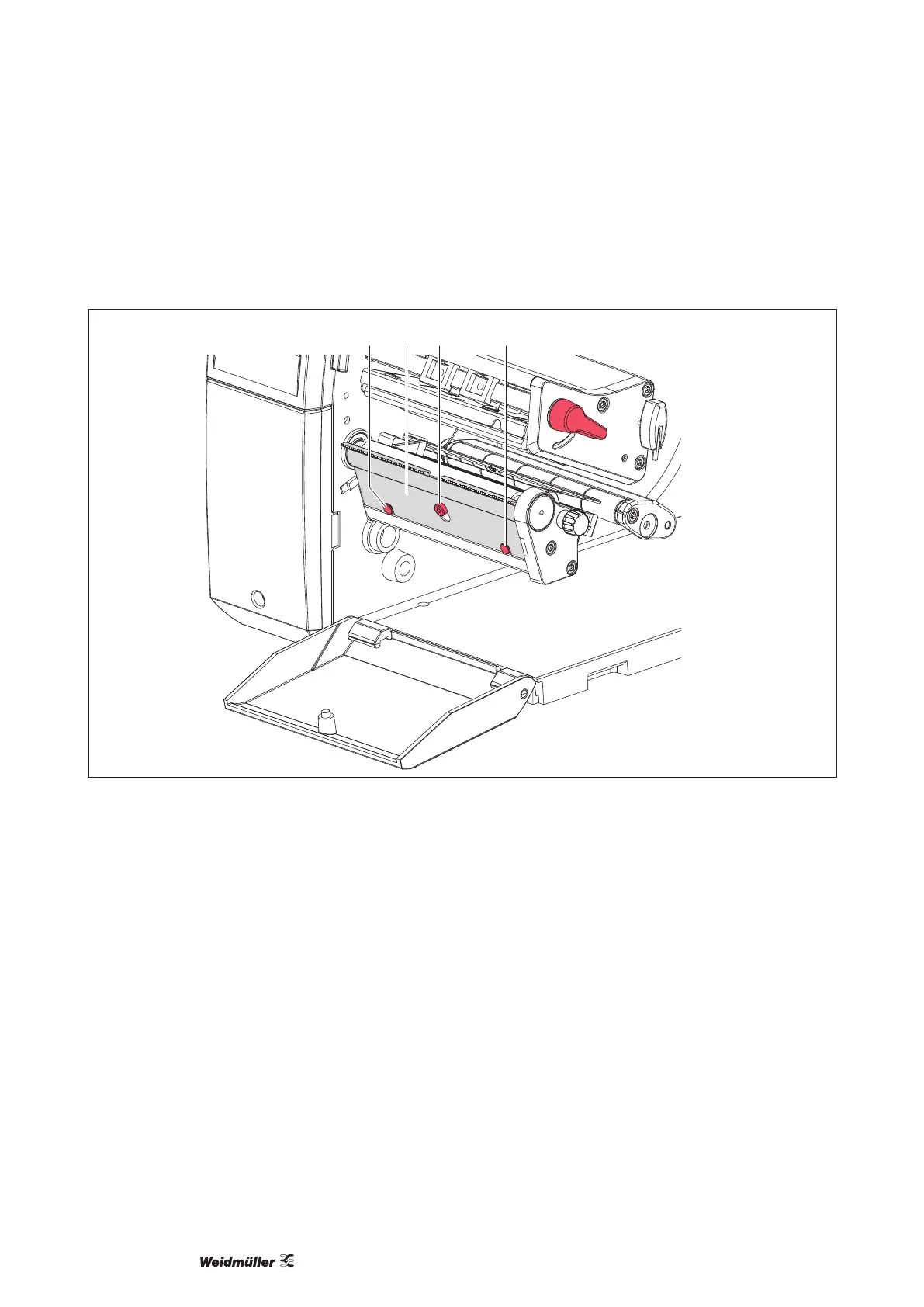

Figure 14 Removingandinstallingthetear-o󰀨plate
Removing a plate
f Loosen screw (3) several turns.
f Slide plate (2) upwards and remove it.
Installing a plate
f Place plate (2) onto the screw (3) and slide it downwards behind the pins (1).
f Tighten screw (3).
