Weidmüller THM MultiMark Plus - Setting the Feed Path of the Transfer Ribbon

54 2599440000/00/04.2019
Loading Material
4.6 Setting the Feed Path of the Transfer Ribbon
Transferribbonwrinklingcanleadtoprintimageerrors.Thetransferribbondeection(3)canbeadjustedso
as to prevent wrinkles.
Amaladjustmentoftheheadlockingsystemmayalsocauseribbonwrinkling(→„4.3 Setting the
Head Locking System“ on page 51).
1
2
3

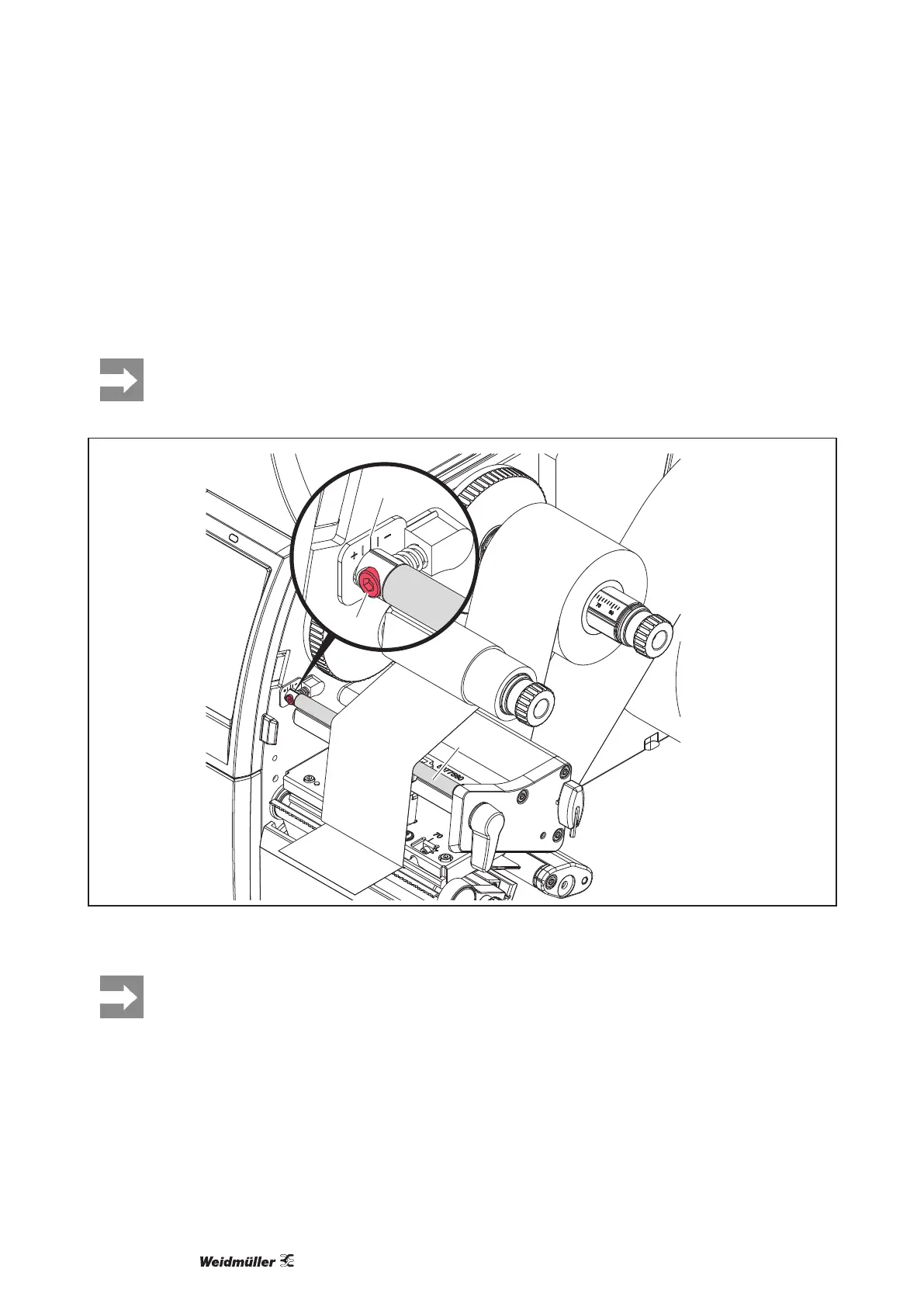

Figure 17 Setting the feed path of the transfer ribbon
The adjustment is best carried out during printing.
f Read current setting on the scale (1) and record if necessary.
f Turn screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the ribbon is tightened, and the outer edge is tightened in the - direc-
tion.
