Installation
20
21
24
22
23
26
25
27

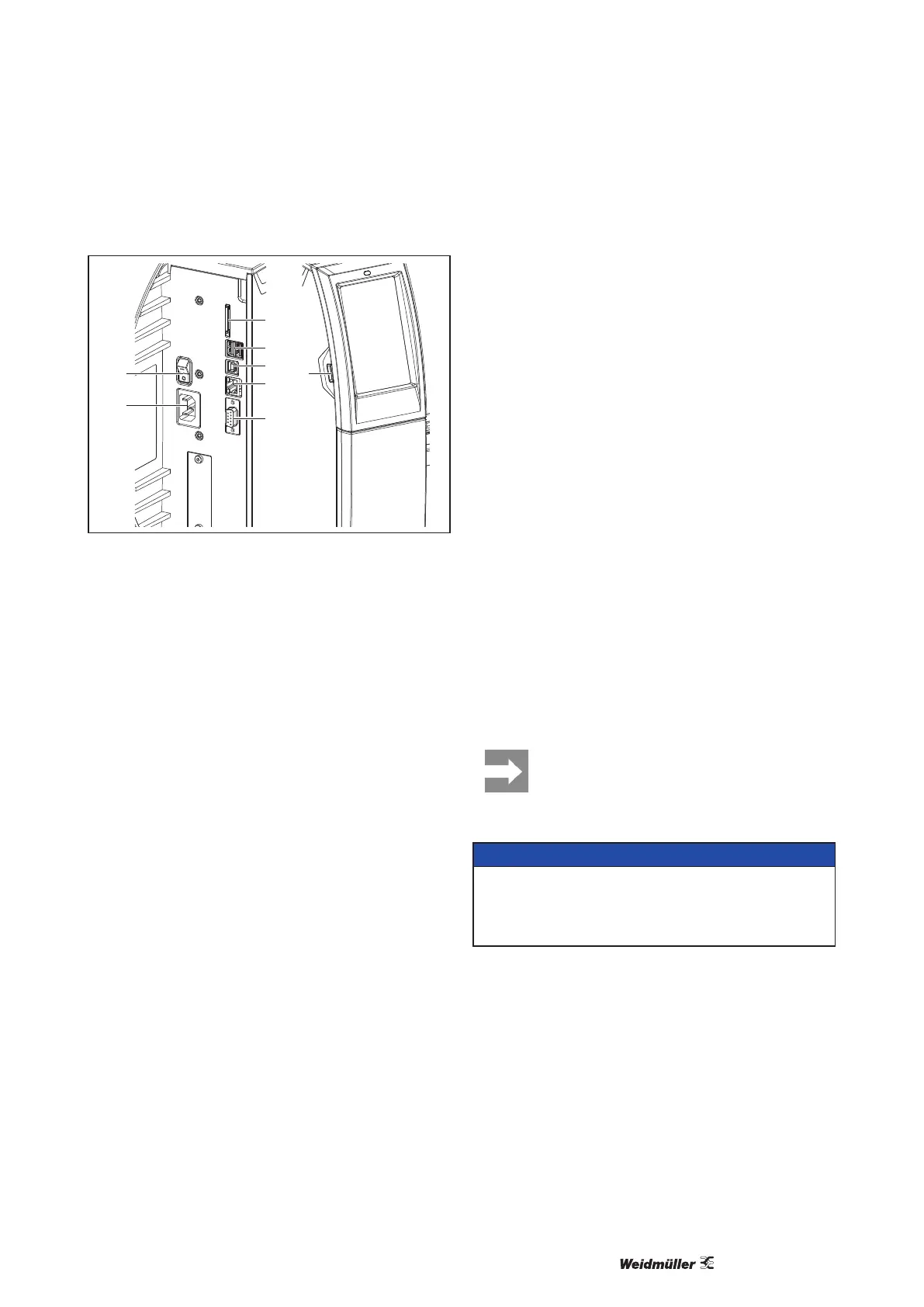

Figure 3 Connections
20 Power switch
21 Power connection jack
22 Slot for SD card
23 2 USB master ports for keyboard, scanner, USB
memory stick, Bluetooth adapter, service key or
WiFi stick
24 USB full-speed slave port
25 Ethernet 10/100 Base-T
26 Serial RS-232 port
27 USB master port for keyboard, scanner, USB
memory stick, Bluetooth adapter or service key
2.2 Unpacking and Setting-up
the Printer
f Lift the label printer out of the box.
f Check label printer for damage which may have
occurred during transport.
f Set up printer on a level surface.
f Remove foam transportation safeguards near the
printhead.
f Check delivery for completeness.
Contents of delivery:
• Label printer
• Power cable
• USB cable
• Wi-Fi stick
• DVD with label software, driver and documenta-
tion
• Ribbons
• Print roller for terminal markers
Please keep the original packaging in
case the printer must be returned.
ATTENTION!
The device and printing materials will be damaged
by moisture and wetness.
Set up label printers only in dry locations protected
from splash water.
