512599440000/00/04.2019
Loading Material
4.3 Setting the Head Locking System
The printhead is pushed on via two plungers (1). In the basic setting the plungers are set in the middle of the
printhead retainer. This setting can be used for the most applications.

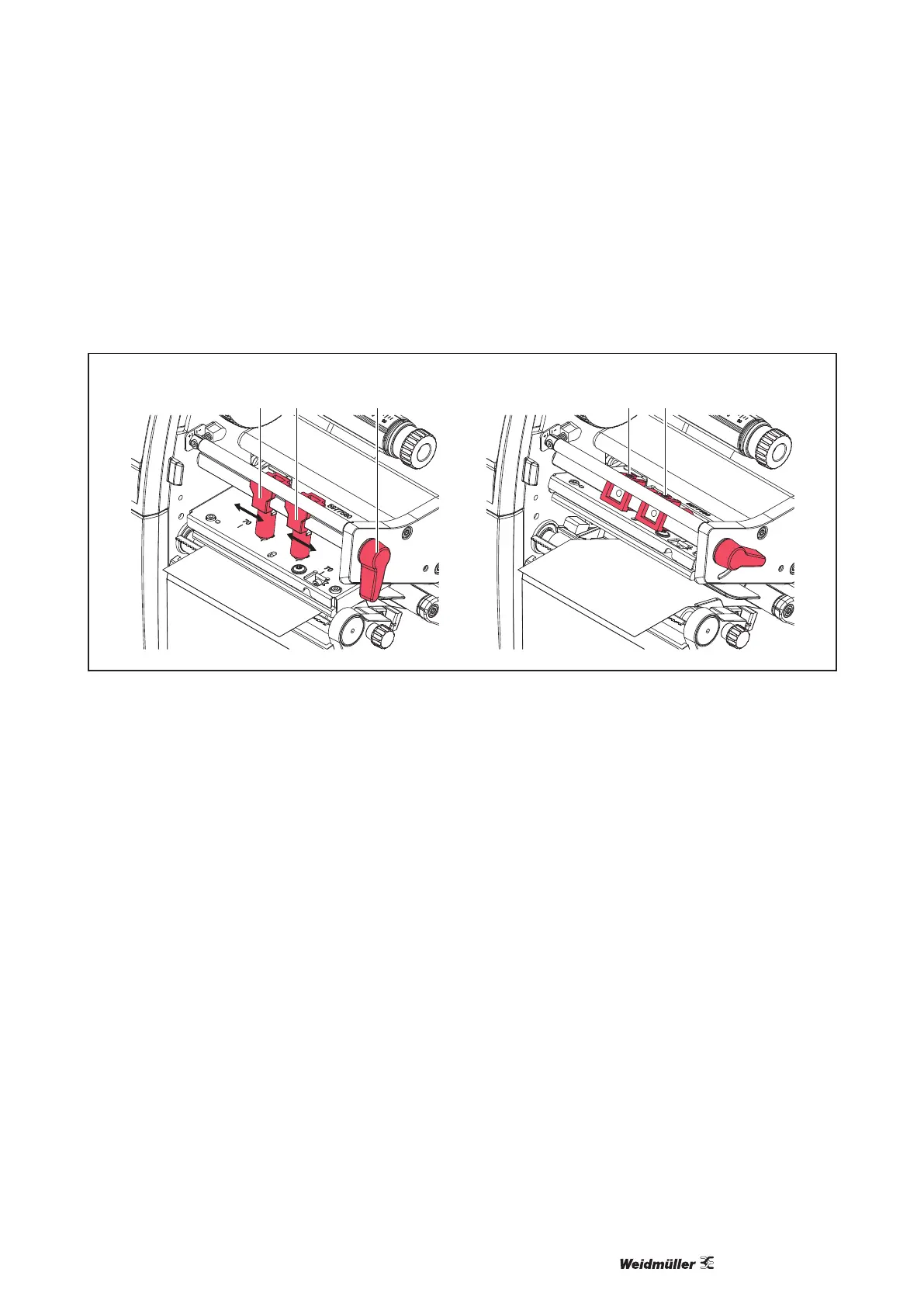

Figure 13 Setting the head locking system - devices with centered media guiding
If the print density decreases in the outer areas when using very large media, the plungers can be displaced:
f Loosen threaded pins (3) at the plungers (1) with Allen key.
f Turn lever (2) clockwise to lock the printhead.
f Displace plungers to the scale value 70.
f Tighten the threaded pins (3).
