Precondition:
n Cylinder has been removed.
–
Ä
Chapter 4.1 “Dismount old cylinder” on page 48
1. Use replacement tool in the battery replacement set
to twist retaining spring (1) out of the groove (5) in the
battery compartment.
2. Remove retaining spring (1).
3. Remove battery compartment lid (2).
4. Remove contact strip (3).
5. Remove used batteries (4).
6.
ENVIRONMENT!
Environmental damage is caused when
you dispose of batteries incorrectly.
Dispose of retaining spring (1), battery compartment
lid (2), contact strip (3) and batteries (4) in the correct
manner.
7. Insert two new batteries (4) from the battery replace-
ment set with their positive terminal pointing down-
wards.
8. Insert new contact strip (3) into the battery compart-
ment with toothed ring pointing outwards.
9. Insert battery compartment lid (2) into the battery
compartment.
10. Insert retaining spring (1) into the battery compart-
ment groove (5).
11. Place replacement tool onto the retaining spring (1).
12. Use the replacement tool to turn retaining spring (1)
90° in the groove (5).
ð
The batteries have now been replaced and secured
in the battery compartment.
13. Fit cylinder.
Ä
Chapter 4.6 “Install cylinder type 01, type 02 and
type 05” on page 57
14. Synchronise the time of the cylinder with the Mas-
terkey.
Ä
Chapter 7.4.3 “Identify cylinder” on page 89
Remove battery from the battery
compartment

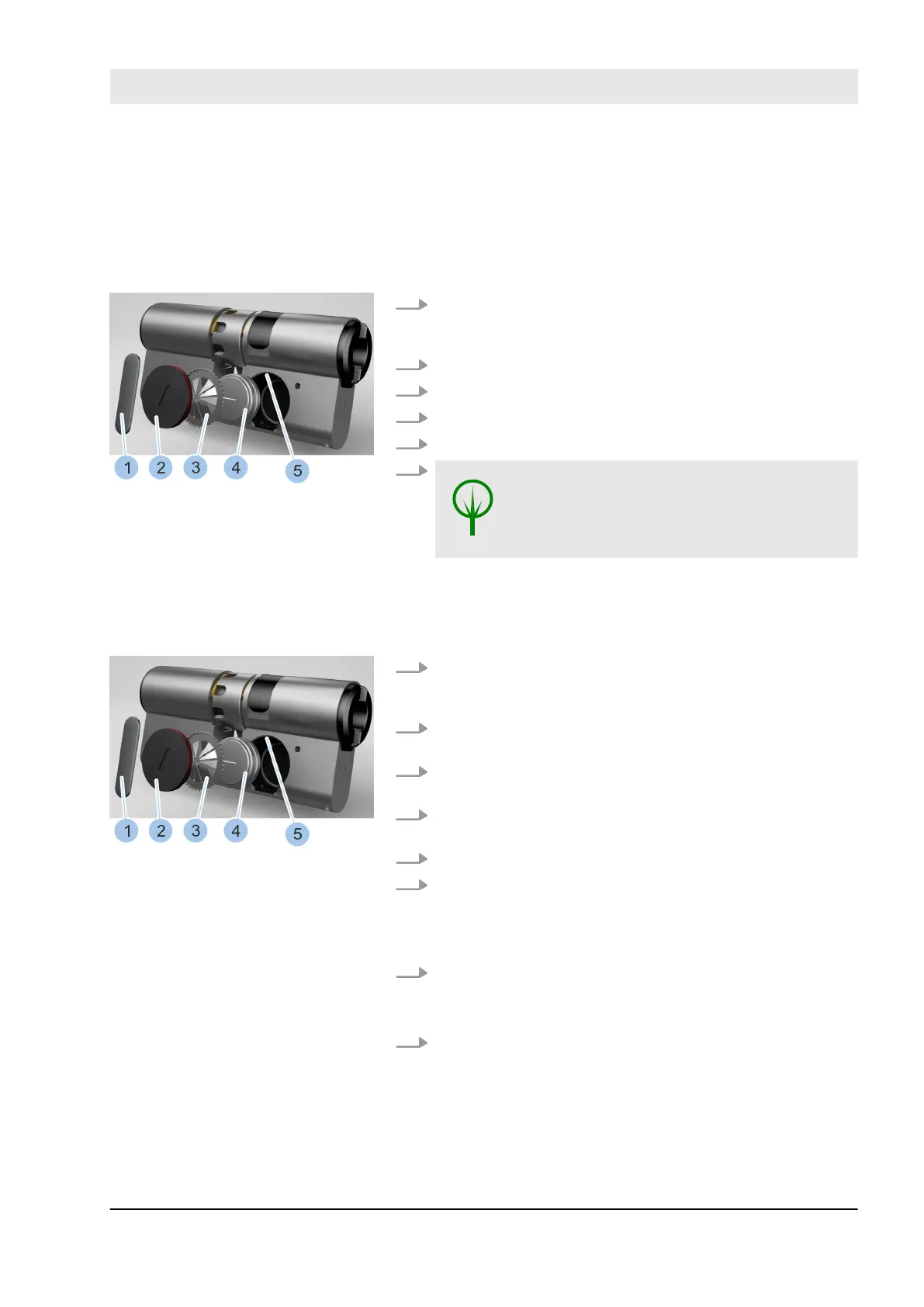

Fig. 127: Remove batteries
Insert new batteries
Fig. 128: Insert batteries
Cleaning and maintenance
23.03.2020 blueCompact electronic locking system 157
