Winkhaus blueCompact - 10.3.1 Replace the battery in an active key; 10.3.2 Replacing the batteries in cylinder types 01, 04 MK and 05

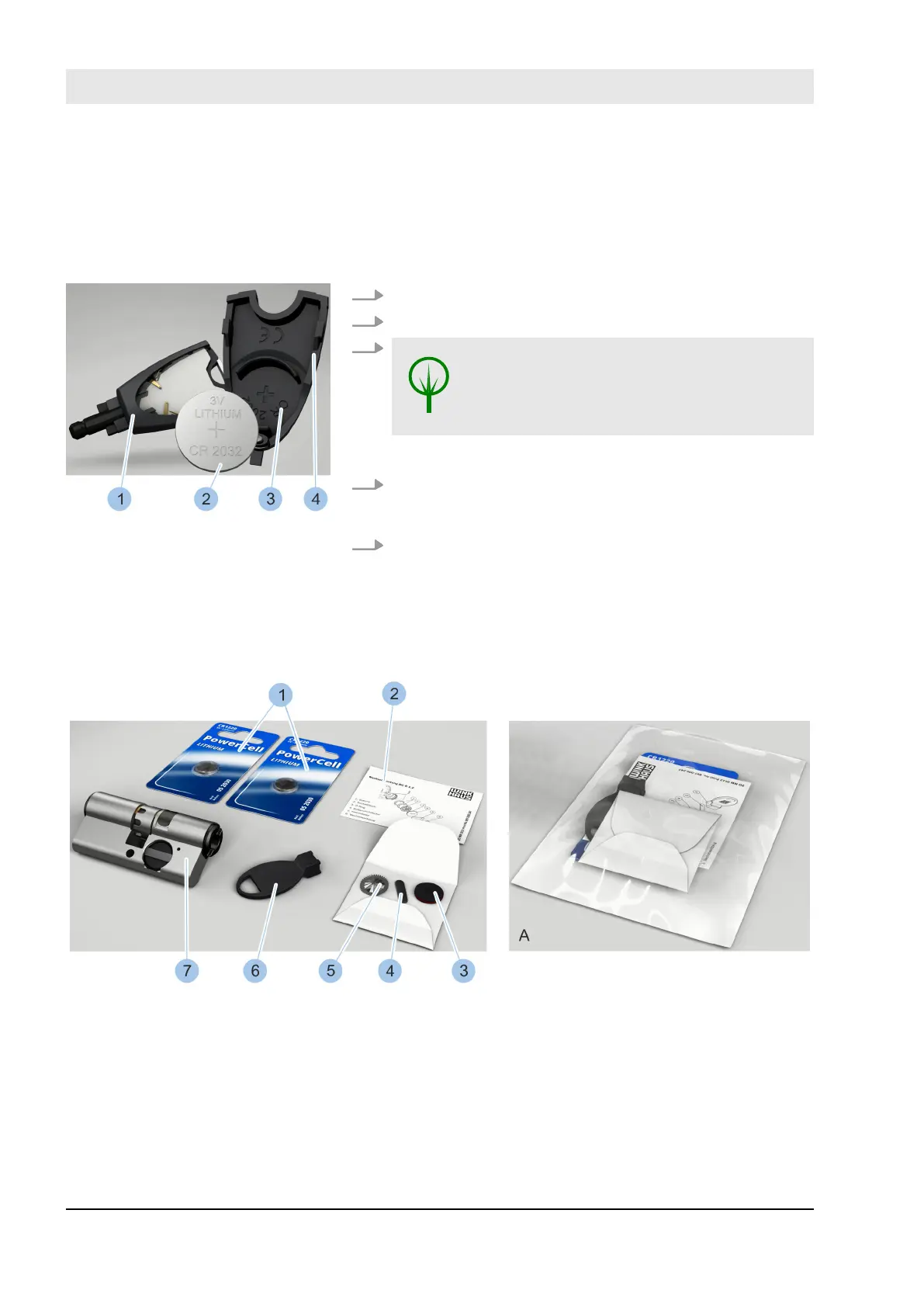

10.3.1 Replace the battery in an active key
Precondition:
n New 3 V CR 2032-1HFE lithium cell is at hand.
1. Slide o the battery compartment cover (4).
2. Remove the used battery from the battery holder (3).
3.
ENVIRONMENT!
Environmental damage is caused when
you dispose of batteries incorrectly.
Dispose of used batteries (2) in the correct manner.
4. Insert new approved battery (2) into the battery
holder (3) with the positive terminal facing down-
wards.
5. Slide the battery compartment cover (4) containing
the newly inserted battery (2) onto the key (1).
ð
The key battery has now been replaced.
10.3.2 Replacing the batteries in cylinder types 01, 04 MK and 05
Fig. 126: Battery replacement set
1 Batteries
2 Replacement instructions
3 Battery compartment lid with O-ring
4 Retaining spring
5 Contact strip
6 Replacement tool
7 Cylinder (not part of the battery replace-
ment set)
A Battery replacement set in packaging
The battery replacement set is supplied in a package (A)
and contains the components in the photo (1 – 6).
Replace the battery
Fig. 125: Replace the battery
Cleaning and maintenance
23.03.2020blueCompact electronic locking system156
