6. Use replacement tool (2) to insert battery plug (1).
7. Insert new battery (4) from the battery set, including
cable (3), into the battery compartment.
8. Close lid (2) on the battery compartment.
9. Fasten screw (1) with enclosed screwdriver (T6).
ð
The battery has now been replaced and secured in
the battery compartment.
10. Fit cylinder.
Ä
Chapter 4.8 “Install cylinder type 21 and type 22”
on page 62
11. Synchronise the time of the cylinder with the Mas-
terkey.
Ä
Chapter 7.4.3 “Identify cylinder” on page 89

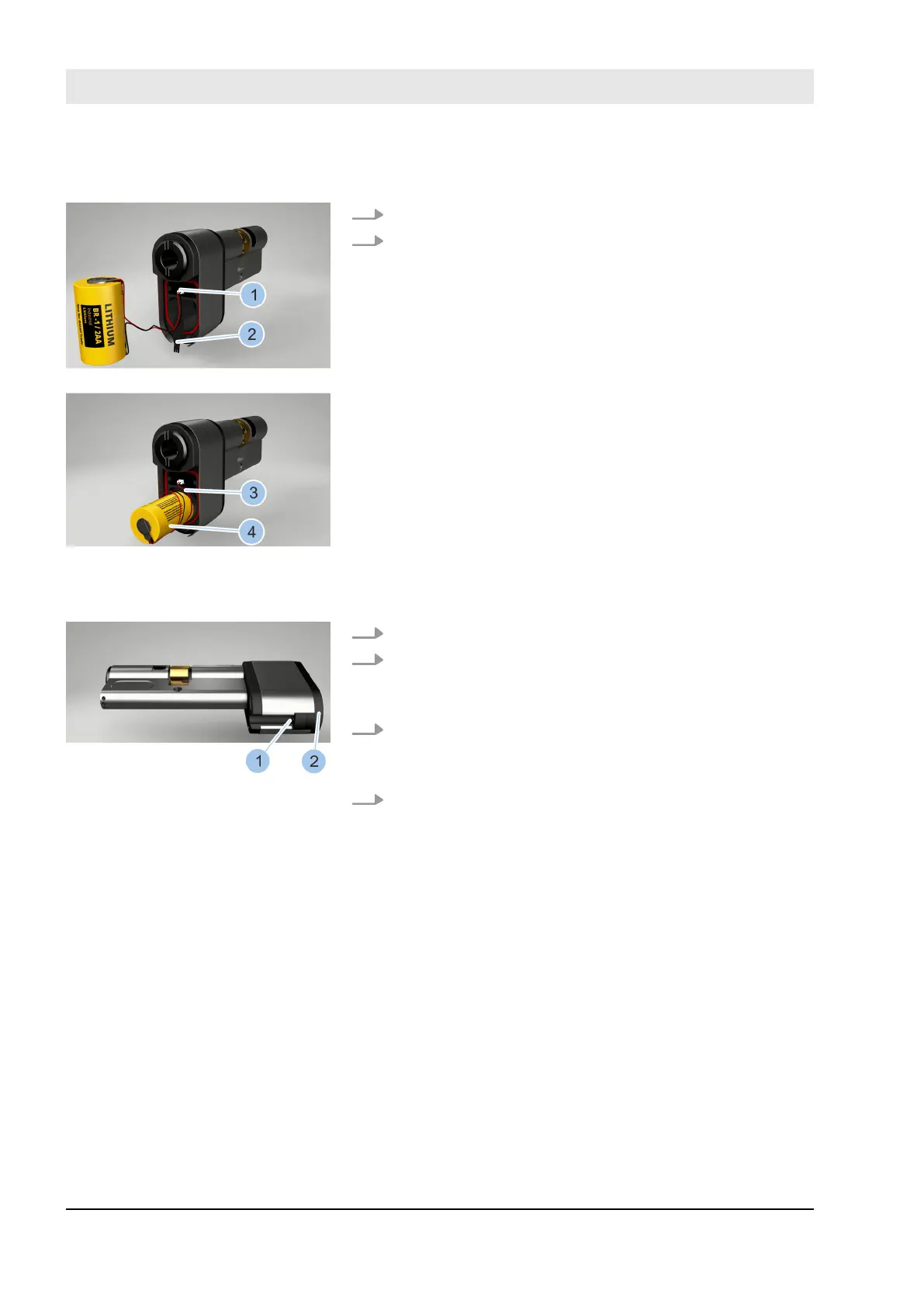

Insert battery
Fig. 142: Insert battery
Close battery compartment
Fig. 143: Close battery compart-
ment
Cleaning and maintenance
23.03.2020blueCompact electronic locking system164
