Winkhaus blueCompact - Padlock; 1.6 Reader

A padlock can be integrated into the locking system with
type 85.
1.6 Reader
The reader can be installed as an addition to electronic cyl-
inders. We dierentiate between a reader with internal and
external control unit (
Ä 5.1 “Select reader” on page 65).
The reader can be used to activate motorised locks, parking
barriers or electric garage doors, for example.
Reader with internal control unit:
n The reader with internal control unit has an integrated
switching mechanism which controls the access function
directly. The wiring takes place directly with the
periphery devices to be controlled.
Readers with external control unit:
n With this reader type, we dierentiate between reader
and control unit. The communication between the reader
and control unit takes place encrypted via a signal line.
The switching mechanism is integrated in the control unit
in the protected interior.
The following components are required for installing the
two reader types and are included with the reader:
n Two dowels (diameter: 4 mm)
n Two screws
n Connection cable with a length of 4.5 m
n Drilling template
n Programming adapter (
Ä Chapter 1.6 “Reader”
on page 27)
Padlock

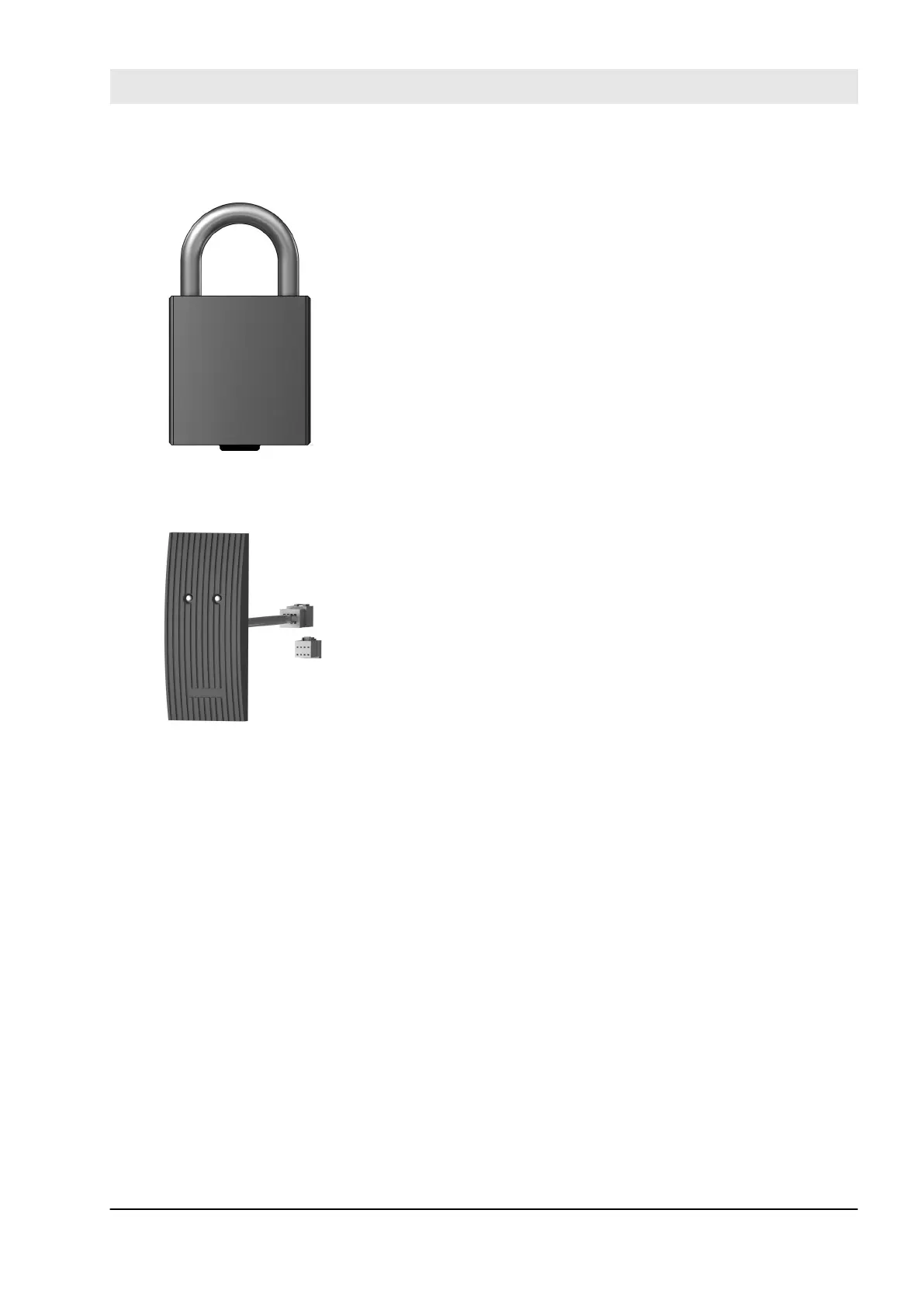

Fig. 17: Type 85
Fig. 18: Reader
Reader types
Product overview
