4.4 Install old cylinder
If the cylinder type and the dimensions have
been determined, the old cylinder can be re-
fitted until you have the new cylinder.
Special tool:
n
Screwdriver
Prerequisites:
n Type of cylinder has been determined.
–
Ä
Chapter 4.2 “Determine cylinder type” on page 49
n Old cylinder has been measured.
–
Ä
Chapter 4.3 “Determine cylinder length” on page 50
n You do not have new cylinder yet.
1. Insert key (3) into the keyway (2).
2. Turn the key to place cam in the zero position (1).
3.
NOTICE!
Material damage caused by using force
to insert cylinder.
Push in cylinder (2) from the inner side of the door. If
the cylinder (2) is stuck, carefully jiggle with the key
(3) and push cylinder (2) in. Contact specialist com-
pany if you experience problems.
Insert cylinder

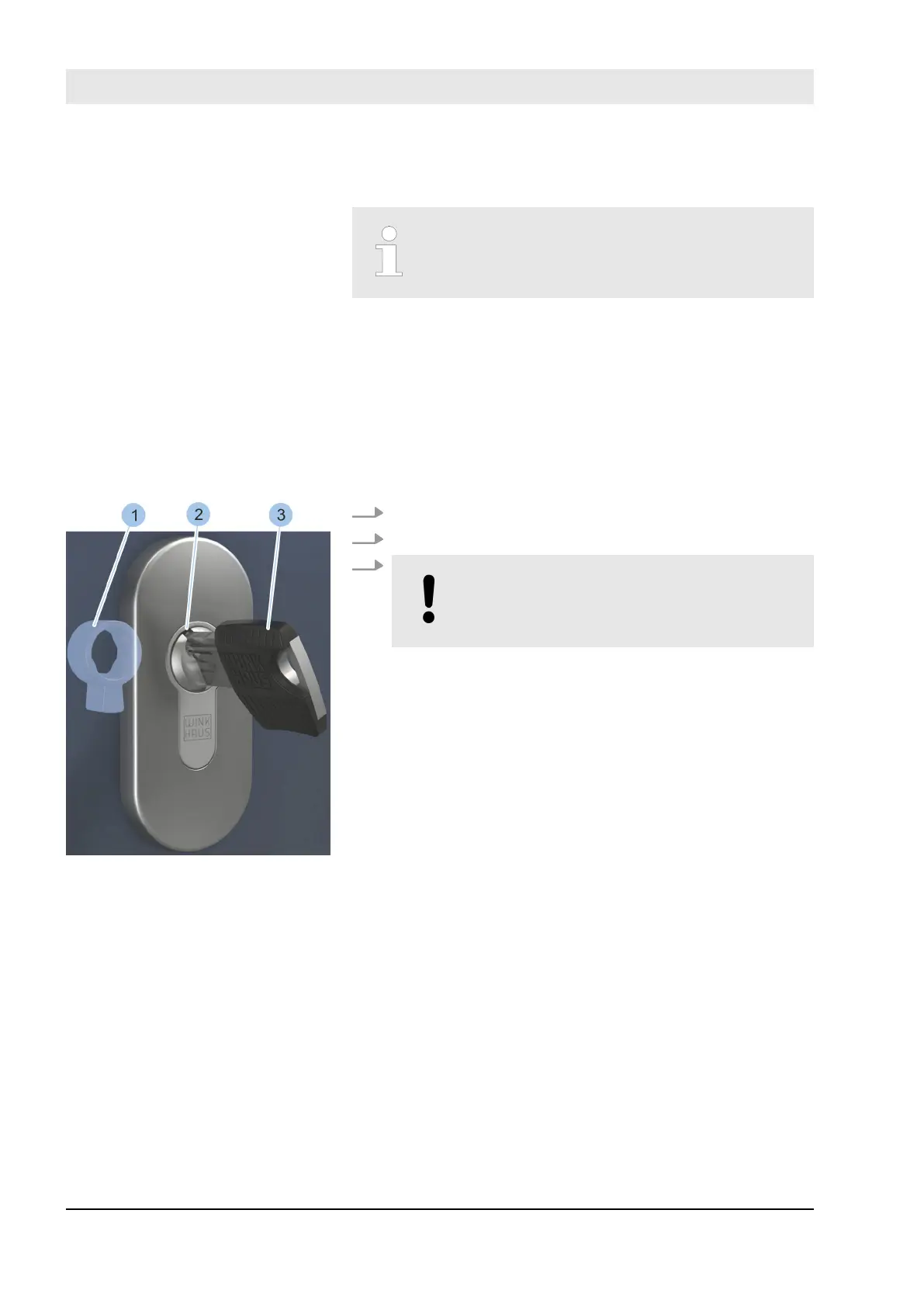

Fig. 30: Place cam in zero position
Select and install cylinder
23.03.2020blueCompact electronic locking system52
