10.3.3 Replace batteries in cylinder type 02

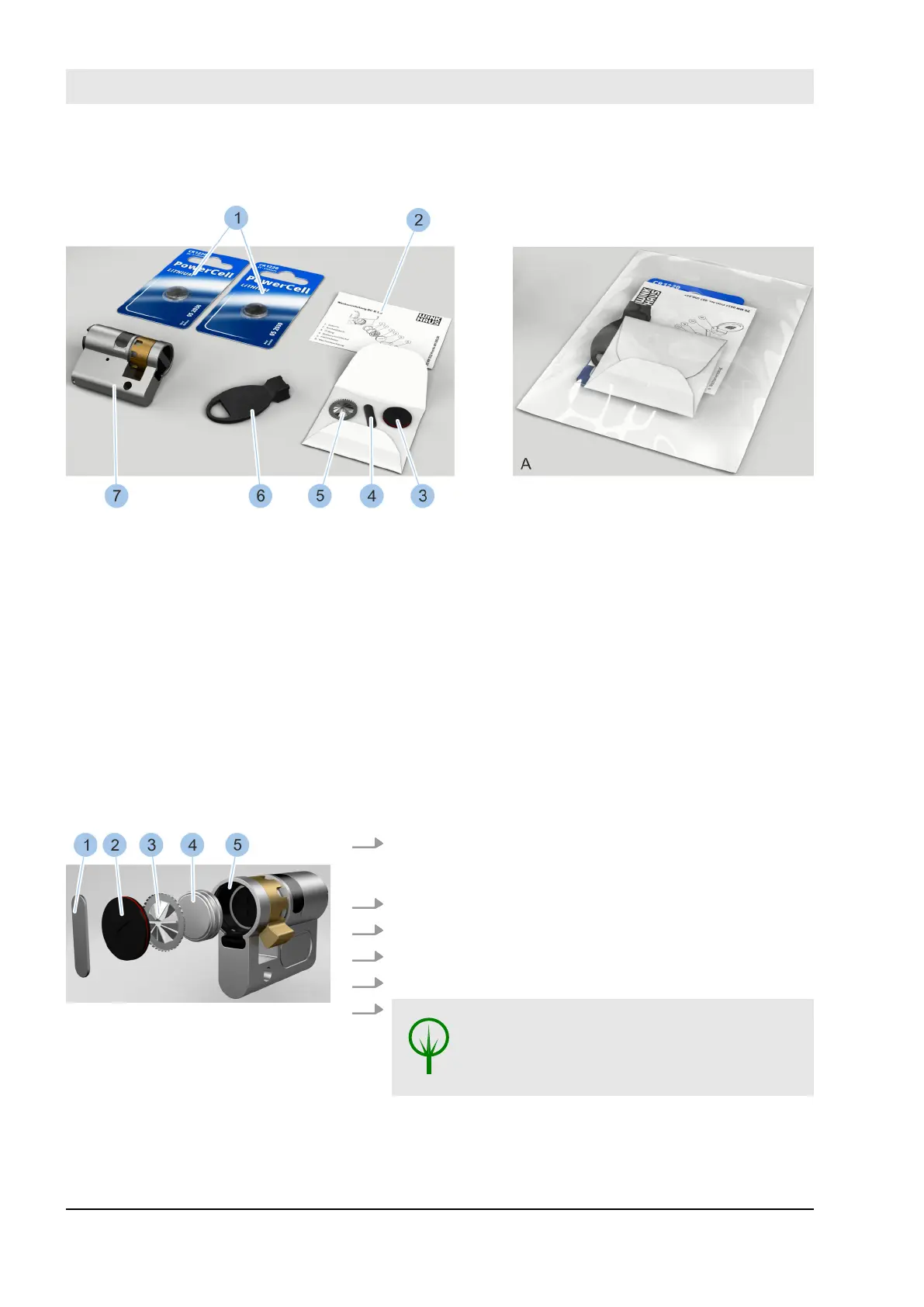

Fig. 129: Battery replacement set (type 02)
1 Batteries
2 Replacement instructions
3 Battery compartment lid with O-ring
4 Retaining spring
5 Contact strip
6 Replacement tool
7 Cylinder (not part of the battery replace-
ment set)
A Battery replacement set in packaging
The battery replacement set is supplied in a package (A)
and contains the components in the photo (1 – 6).
Precondition:
n Cylinder has been removed.
–
Ä
Chapter 4.1 “Dismount old cylinder” on page 48
1. Use replacement tool in the battery replacement set
to twist retaining spring (1) out of the groove (5) in the
battery compartment.
2. Remove retaining spring (1).
3. Remove battery compartment lid (2).
4. Remove contact strip (3).
5. Remove used batteries (4).
6.
ENVIRONMENT!
Environmental damage is caused when
you dispose of batteries incorrectly.
Dispose of retaining spring (1), battery compartment
lid (2), contact strip (3) and batteries (4) in the correct
manner.
Remove battery from the battery
compartment
Fig. 130: Remove batteries
Cleaning and maintenance
23.03.2020blueCompact electronic locking system158
