Winkhaus blueCompact - Double cylinder

You can read or display the battery charge
status for all cylinders.
– Ä Chapter 7.4.4 “Check the cylinder bat-
tery charge status” on page 90
The following battery charge states are dis-
played:
– good
– sucient
– low
– replace
The battery must be replaced if the battery
charge status indicates 'low' or 'replace'. A
cylinder will intentionally delay closing to
indicate an empty battery.
Double cylinders can be closed on both sides.
The following double cylinders can be integrated into the
locking system:
n Type 01 (1) and type 05 (1)
n Type 21 (2)
Type 01 (1) is used indoors for normal doors if doors have to
be closed with electronic control from both sides.
Type 05 (1) is used indoors for normal doors if doors only
have to be closed with electronic control from the outside
(e.g. oce doors). In contrast to type 01 (1), type 05 (1) is
mechanically lockable from the inside.
Type 21 (2) is used indoors and outdoors for high-trac
doors if doors have to be closed with electronic control
from both sides. The large battery compartment complete
with large battery guarantees a high service life on high-
trac doors.
Double cylinder

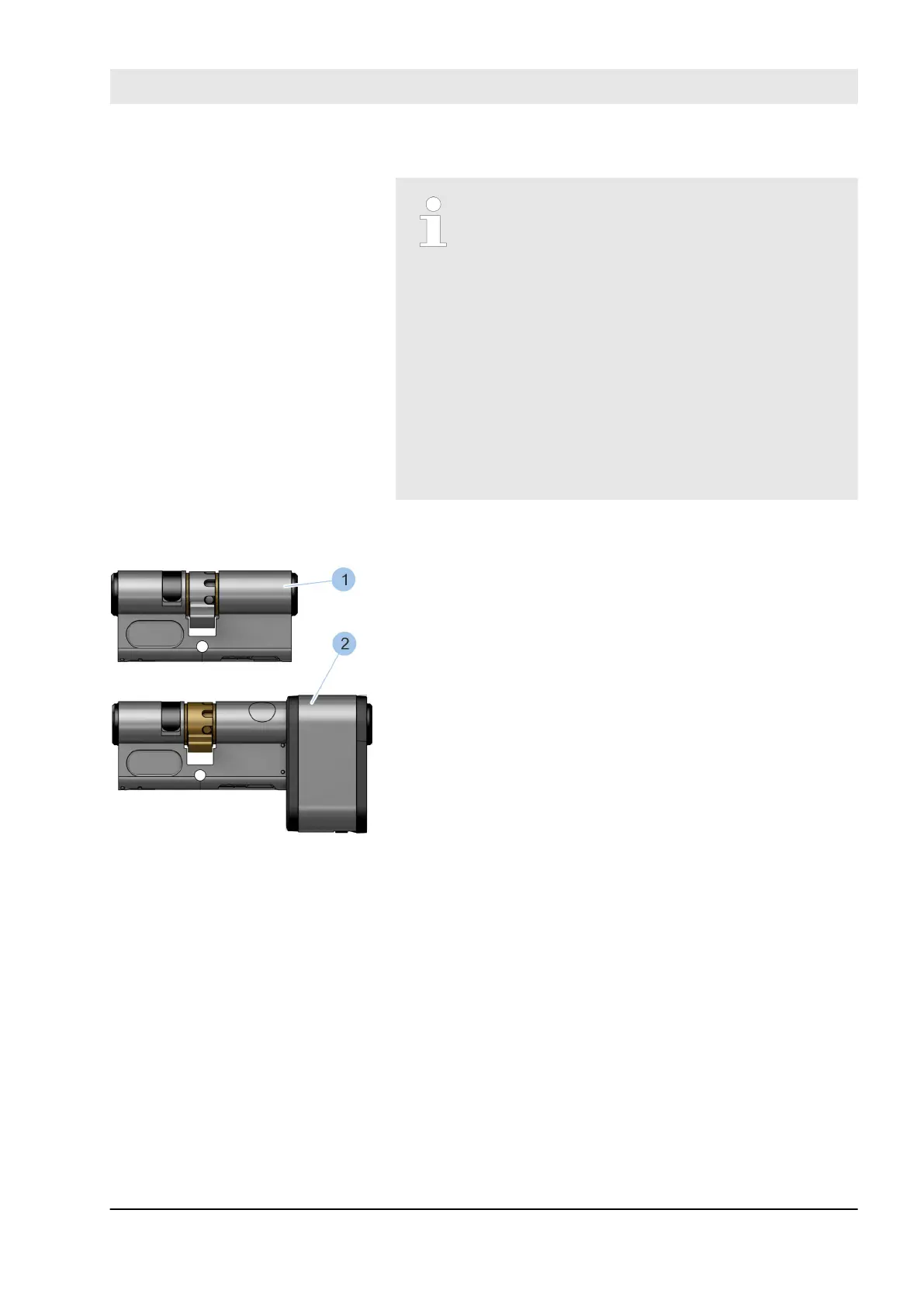

Fig. 14: Type 01 and type 21
