Winkhaus blueCompact - Knob cylinder; Half cylinder

Knob cylinders can be locked on the outside using a key.
Knob cylinders have a knob on the inner side.
The following knob cylinders can be integrated into the
locking system:
n Type 04 (1)
n Type 04 MK (2)
Type 04 (1) is used indoors for high-frequency doors
opened via a knob from the inside. The large battery com-
partment guarantees a high service life on high-trac
doors.
Type 04 MK (2) is used indoors for normal doors opened
via a knob from the inside.
Half cylinders can be locked on one side only and fill half
the door only.
The following half cylinders can be integrated into the
locking system:
n Type 02 (1)
n Type 22 (2)
Type 02 (1) is used indoors for key-operated switches, for
example, or lift switches.
Type 22 (2) is used indoors and outdoors for high-fre-
quency doors, e. g. garden gates. The large battery com-
partment complete with large battery guarantees a high
service life on high-trac doors.
Knob cylinder

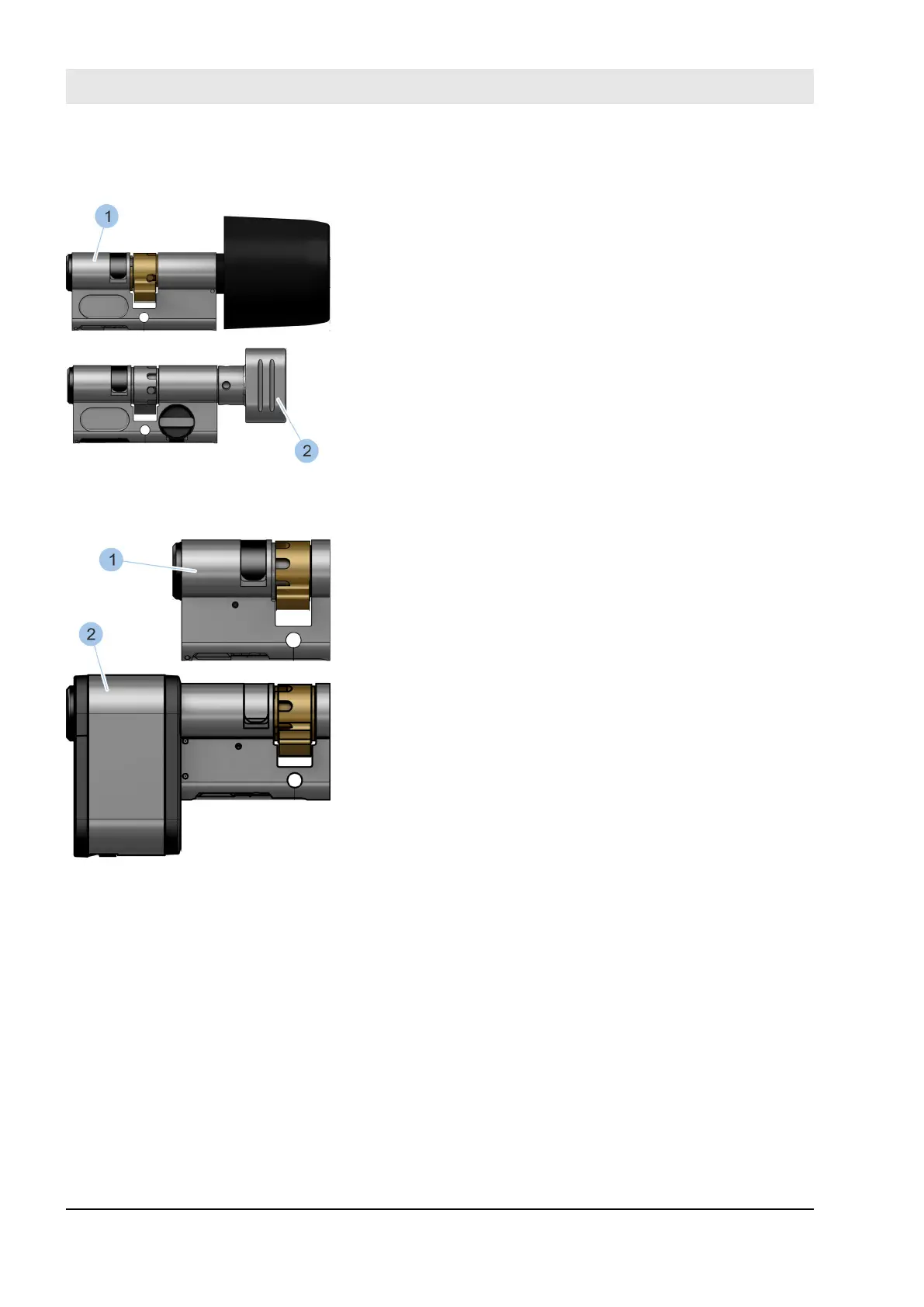

Fig. 15: Type 04 and type 04 MK
Half cylinder
Fig. 16: Type 02 and type 22
Product overview
23.03.2020blueCompact electronic locking system26
