Winkhaus blueCompact - 4.8 Install cylinder type 21 and type 22

6. 'Lock' the door with the door open.
ð
The lock deadbolt (1) extends.
7. 'Unlock' the door with the door open.
ð
The lock deadbolt (1) retracts.
4.8 Install cylinder type 21 and type 22
Prerequisites:
n Old cylinder has been removed.
– Ä Chapter 4.1 “Dismount old cylinder” on page 48
n New cylinder has been selected by type and dimensions.
– Ä Chapter 4.2 “Determine cylinder type” on page 49
–
Ä Chapter 4.3 “Determine cylinder length” on page 50
n Face plate screw has been checked and also shortened if
necessary.
– Ä “Shorten face plate screw” on page 54
1. Insert key (3) into the keyway (2) on the battery com-
partment side.
2. Turn the key (3) to place cam (1) in the zero position.
3.
NOTICE!
Material damage caused by using force
to insert cylinder.
Push in cylinder from the inner side of the door (4). If
the cylinder is stuck, carefully jiggle with the key and
push cylinder in. Contact specialist company if you
experience problems.

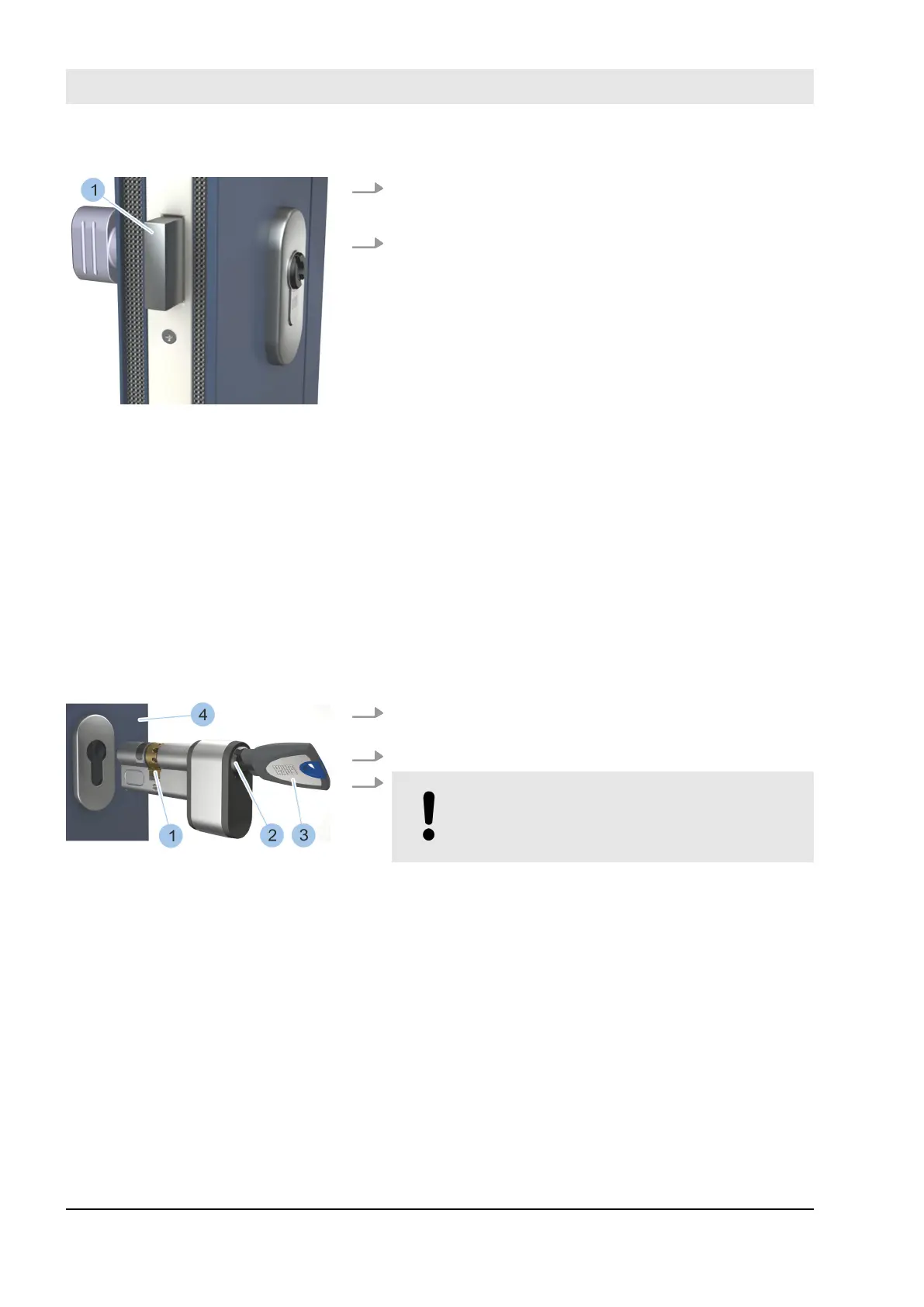

Fig. 42: Perform functional test
Insert cylinder
Fig. 43: Insert cylinder
Select and install cylinder
23.03.2020blueCompact electronic locking system62
