Winkhaus blueCompact - Page 61

3.
NOTICE!
Reduced protection against burglary
due to incorrectly aligned cam.
Turn knob into vertical position.
ð
The cam (1) is facing the door hinge side.
4.
NOTICE!
Physical damage due to face plate
screws screwed at an angle.
Screw the face plate screw (1), so that it is straight
when it enters the cylinder thread (2).
5.
NOTICE!
Physical damage due to over-tightening
of screw.
Use a screwdriver to tighten face plate screw (1) by
hand.
ð
The cylinder is installed.

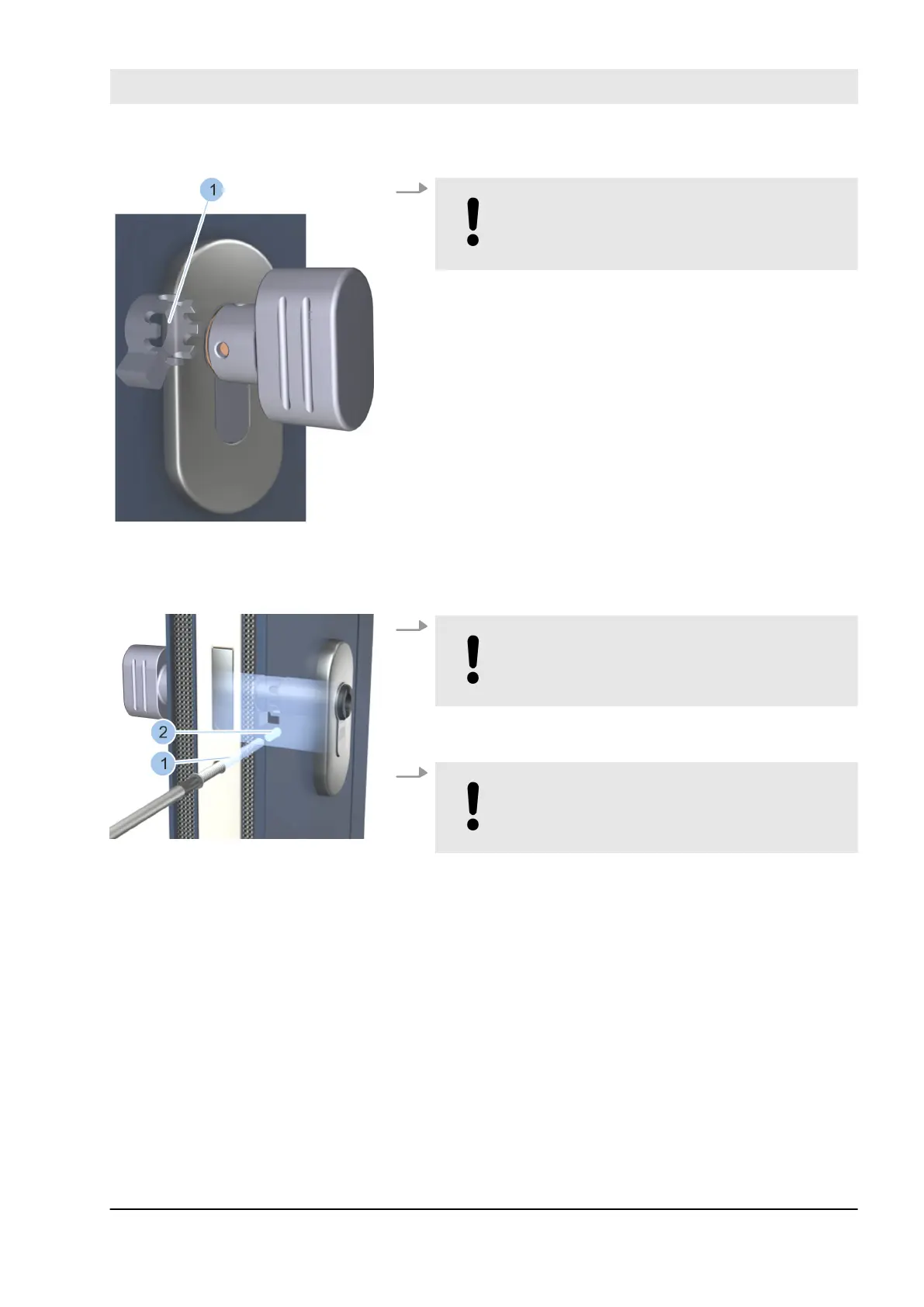

Fig. 40: Align cam
Screw cylinder tightly into posi-
tion
Fig. 41: Screw cylinder tightly into
position
Perform functional test
Select and install cylinder
23.03.2020 blueCompact electronic locking system 61
