4.7 Install cylinder type 04 and type 04 MK
Type 04 and type 04 MK may only be
installed from the inside due to the knobs.
Prerequisites:
n Old cylinder has been removed.
–
Ä
“Overview and explanation of terms” on page 47
n New cylinder has been selected by type and dimensions.
–
Ä
Chapter 4.2 “Determine cylinder type” on page 49
–
Ä
Chapter 4.3 “Determine cylinder length” on page 50
n Face plate screw has been checked and also shortened if
necessary.
–
Ä
“Shorten face plate screw” on page 54
1. Turn the knob (2) to place cam (1) in the zero position.
2.
NOTICE!
Material damage caused by using force
to insert cylinder.
Push in cylinder from the inner side of the door (3). If
the cylinder is stuck, carefully jiggle with the knob and
push cylinder in. Contact specialist company if you
experience problems.

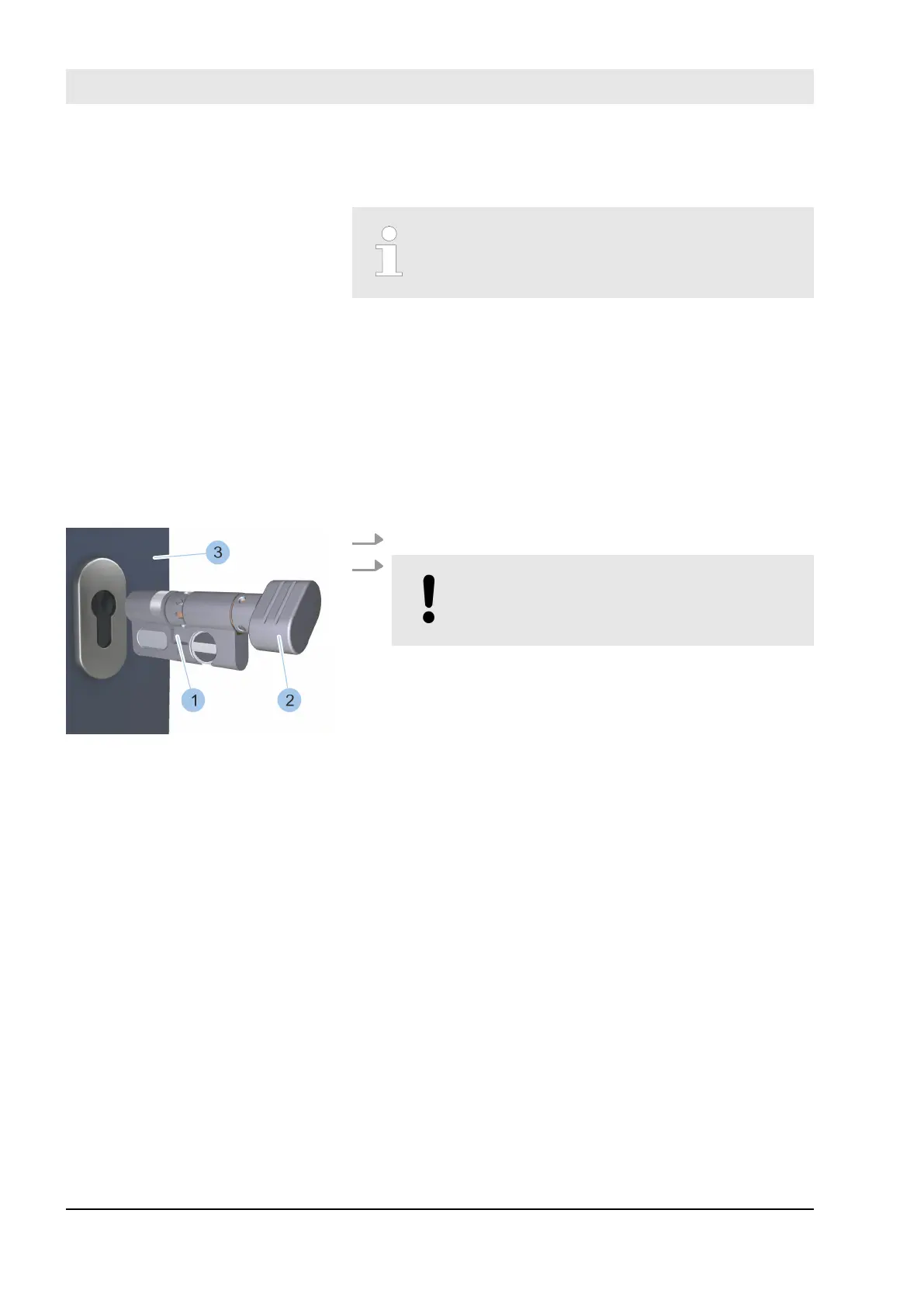

Insert cylinder
Fig. 39: Insert cylinder
Align cam
Select and install cylinder
23.03.2020blueCompact electronic locking system60
