Winkhaus blueCompact - Overview and explanation of terms

NOTICE!
Increased risk of burglary due to incorrectly
installed cylinder.
There is an increased risk of burglary if the
cylinder is not fitted with the magnetic pro-
tection on the outer side.
– Install cylinders with the magnetic protec-
tion on the outside if there is protection.
– Never invert the cylinder's A side (outside)
and B side (inside).

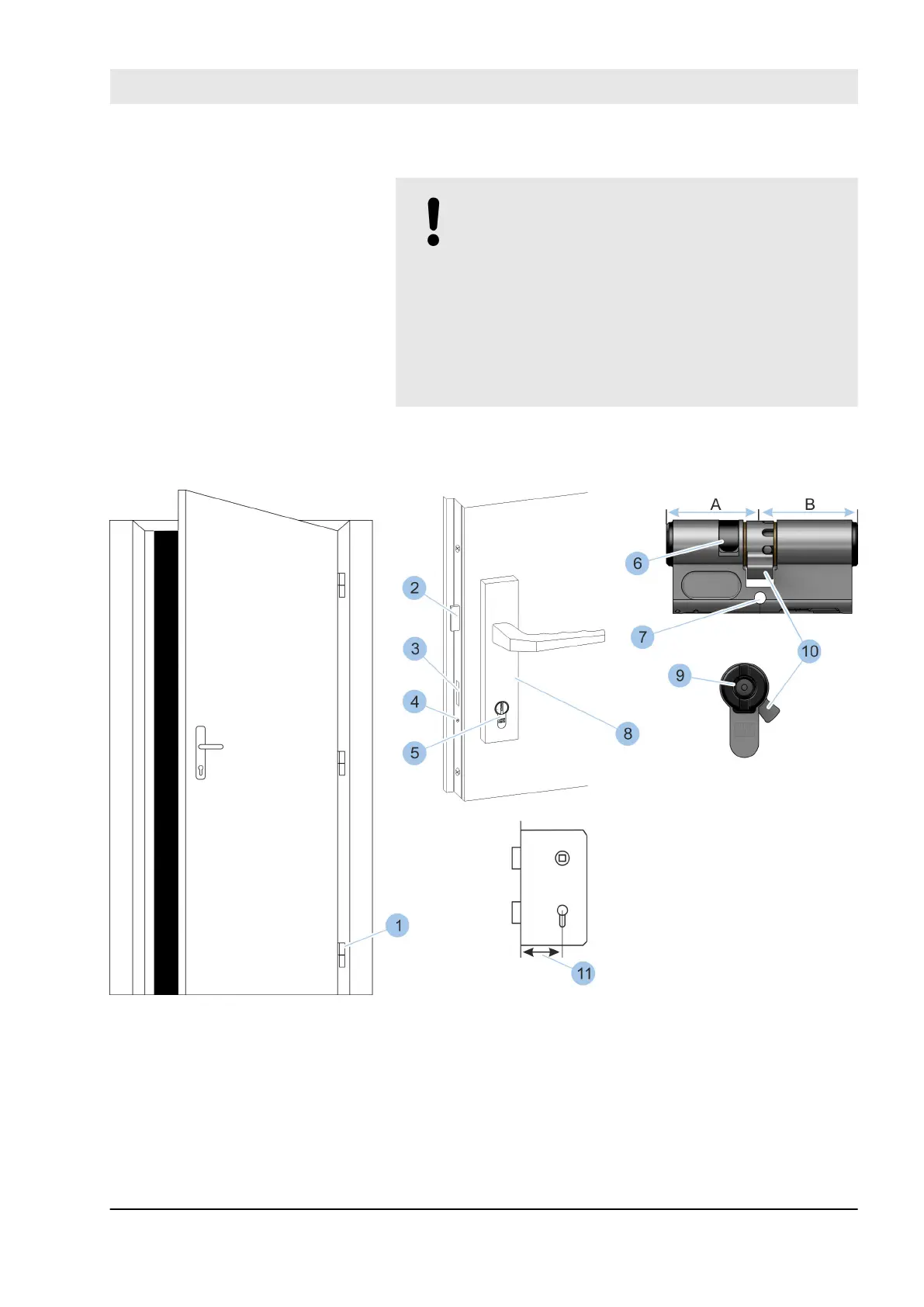

Fig. 23: Overview of door
1 Door hinges (= hinge side)
2 Latch
3 Deadbolt
4 Face plate screw
5 Cylinder
6 Magnetic protection
7 Drill hole for face plate screw
8 Fitting system
9 Keyway
10 Cam
11 Backset
A Outer side
B Inner side
Overview and explanation of
terms
Select and install cylinder
23.03.2020 blueCompact electronic locking system 47
