4.1 Dismount old cylinder
Special tool:
n
Screwdriver
1. Undo face plate screw (1) and remove.
2. Gently turn key (3), so that the cam (1) is placed in the
zero position.
3.
NOTICE!
Material damage caused by removing
cylinder with pliers or using tools or
other means to increase force.
Carefully remove cylinder (2) with inserted key (3)
from the lock.
4. If the cylinder (2) is stuck, carefully jiggle with the key
(3) and slowly remove cylinder (2). Contact specialist
company if you experience problems.

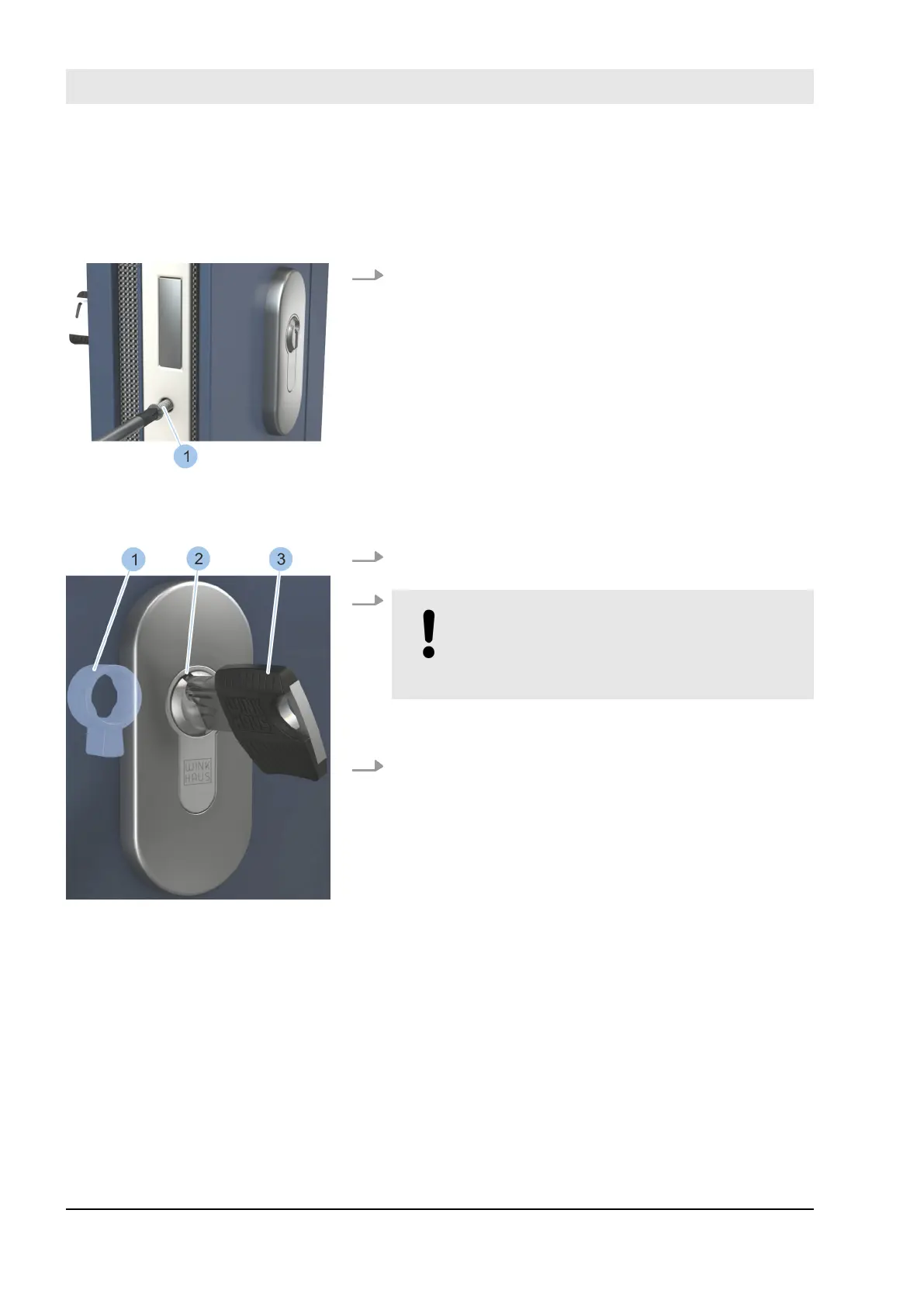

Undo face plate screw
Fig. 24: Undo face plate screw
Remove cylinder
Fig. 25: Place cam in zero position
Select and install cylinder
23.03.2020blueCompact electronic locking system48
