4.
NOTICE!
Reduced protection against burglary
due to incorrectly aligned cam.
Turn key into vertical position.
ð
The cam (1) is facing the door hinge side.
5.
NOTICE!
Physical damage due to face plate
screws screwed at an angle.
Screw the face plate screw (1), so that it is straight
when it enters the cylinder thread (2).
6.
NOTICE!
Physical damage due to over-tightening
of screw.
Use a screwdriver to tighten face plate screw (1) by
hand.
ð
The cylinder is installed.
7. 'Lock' the door with the door open.
ð
The lock deadbolt (1) extends.
8. 'Unlock' the door with the door open.
ð
The lock deadbolt (1) retracts.

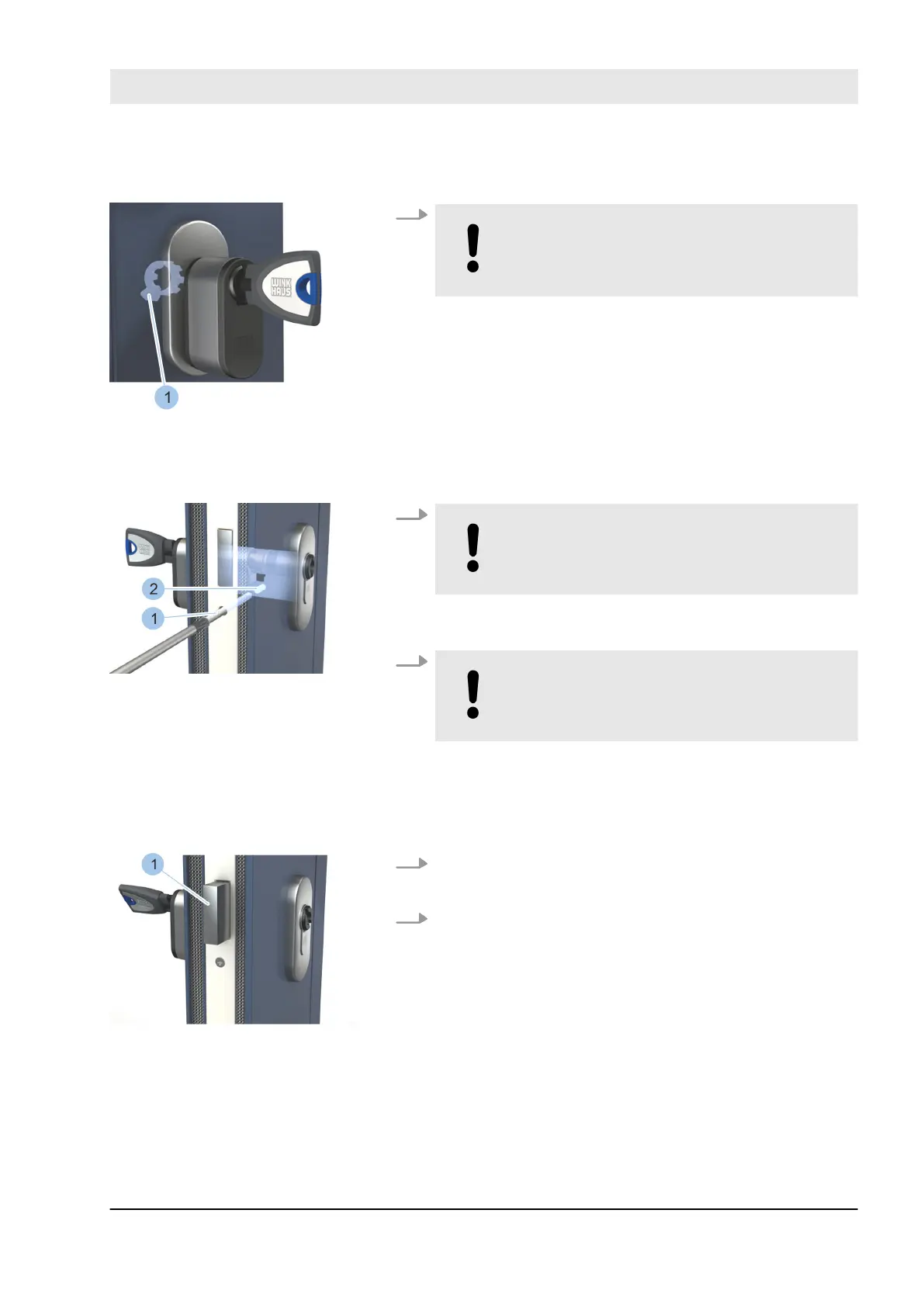

Align cam
Fig. 44: Align cam
Screw cylinder tightly into posi-
tion
Fig. 45: Screw cylinder tightly into
position
Perform functional test
Fig. 46: Perform functional test
