Precondition:
n Cylinder has been removed.
–
Ä
Chapter 4.1 “Dismount old cylinder” on page 48
1. Unfasten screw (1) with enclosed screwdriver (T6).
2. Open lid (2) of the battery compartment.
3. Take the used battery (2), including cable (1), out of
battery compartment.
4. Use replacement tool (4) to remove battery plug (3).
5.
ENVIRONMENT!
Environmental damage is caused when
you dispose of batteries incorrectly.
Dispose of battery in the correct manner.
Open battery compartment

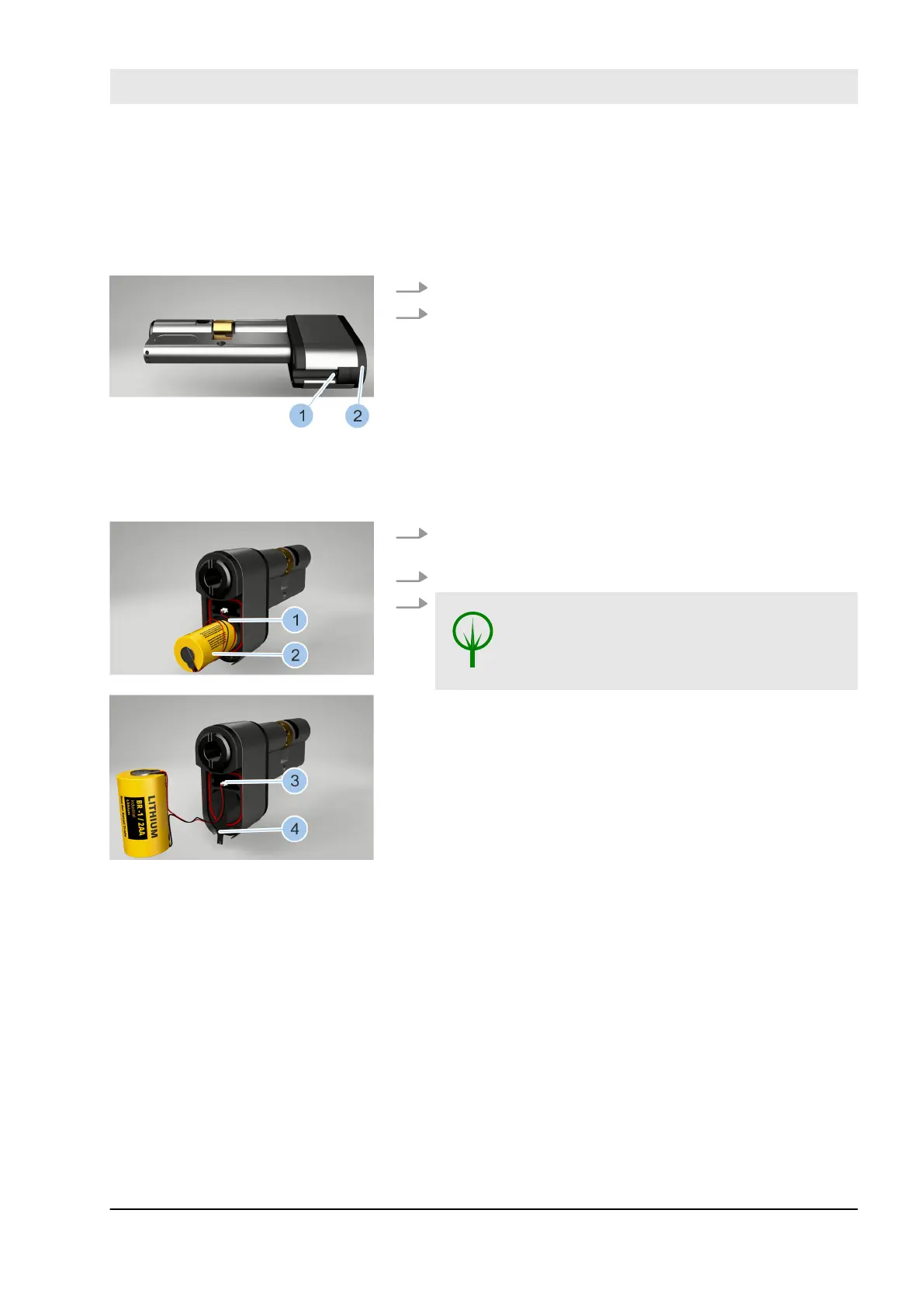

Fig. 140: Open battery compart-
ment
Remove battery
Fig. 141: Remove battery
Cleaning and maintenance
23.03.2020 blueCompact electronic locking system 163
