4.
NOTICE!
Reduced protection against burglary
due to incorrectly aligned cam.
Turn key into vertical position.
ð
The cam (1) is facing the door hinge side.
5.
NOTICE!
Material damage due to face plate
screws screwed into place at angle.
Screw the face plate screw (1), so that it is straight
when it enters the cylinder thread (2).
6.
NOTICE!
Physical damage due to over-tightening
of screw.
Use a screwdriver to tighten face plate screw (1) by
hand.
ð
The cylinder is installed.

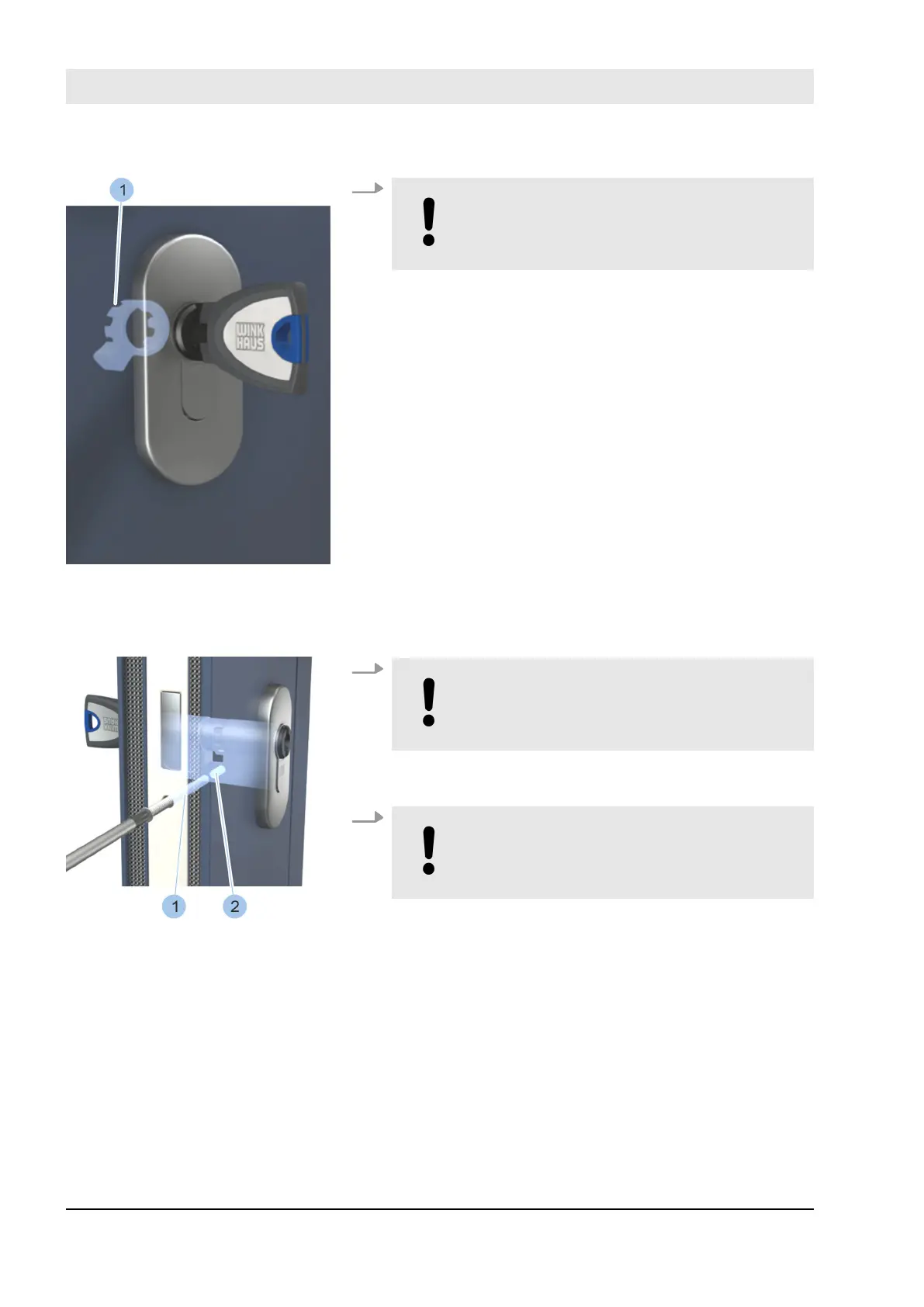

Fig. 36: Align cam
Screw cylinder tightly into posi-
tion
Fig. 37: Screw face plate screw
into position
Perform functional test
Select and install cylinder
23.03.2020blueCompact electronic locking system58
