wireless Seismic RT System 2 - Figure 5-3 Recording Truck or Line Station Mast (Nanostation Radio)

100 RT System 2 v2.3 Deployment Guide R01.i
© 2010-2014 Wireless Seismic, Inc. All rights reserved.
5. Point-to-Multipoint Backhaul
Overview

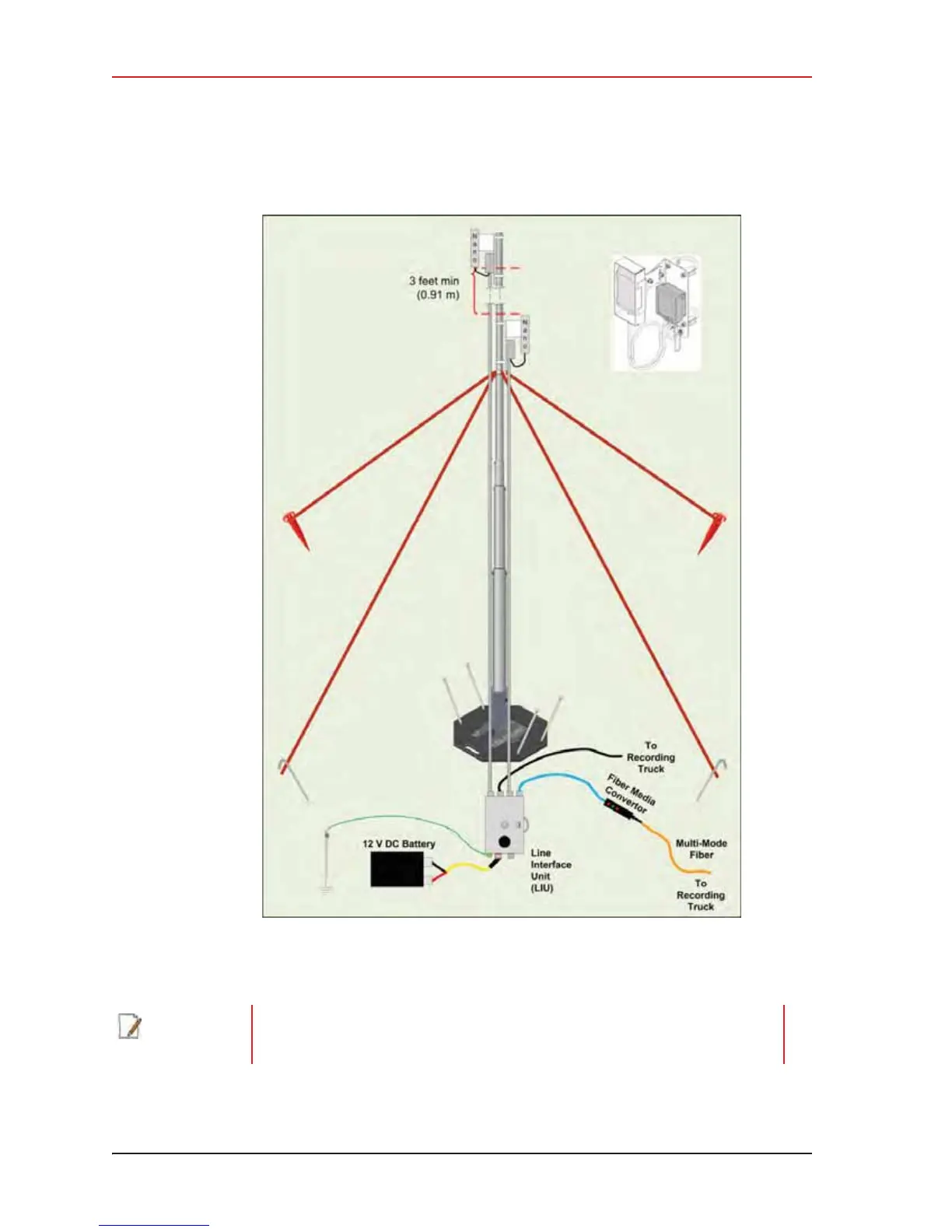

Figure 5–3 Recording Truck or Line Station Mast (NanoStation Radio)
NOTE
If using the mast at the recording truck, connect the LIU with an Ethernet or
Fiber cable to the recording truck. If the mast is not used at the recording truck,
the connections shown in the figure to the recording truck are not used.
