3. Backhaul
Backhaul Components

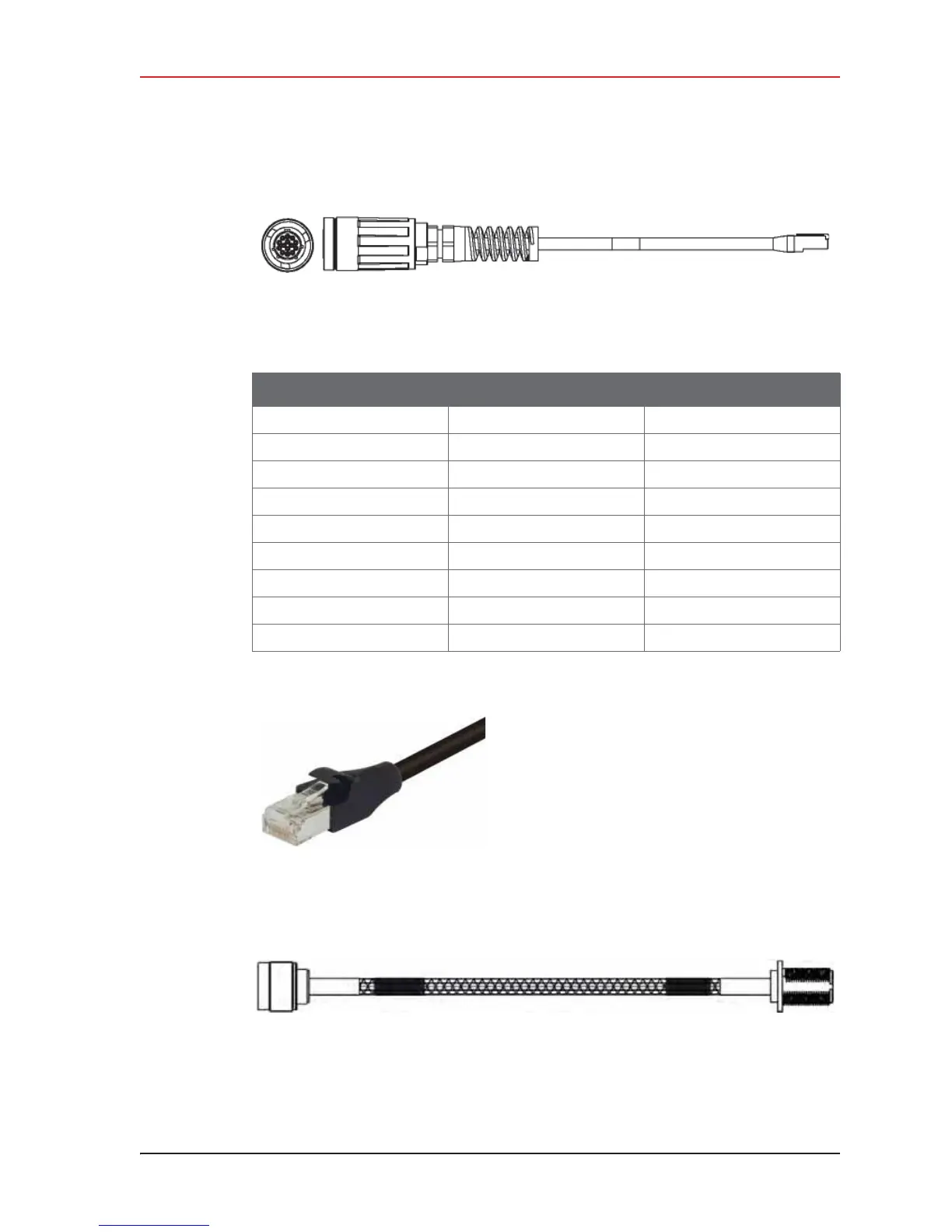

Figure 3–16 Cable, LIU-to-PC (60-0039)
Table 3–8 Cable Pinout, LIU-to-PC (60-0039)
14-Pin Connector RJ-45 Connector Signal Name
B1TX +
A2TX -
C3RX +
NC 4 POSITIVE
NC 5 POSITIVE
D6RX -
NC 7 RETURN
NC 8 RETURN
P — SHIELD DRAIN
Figure 3–17 Cable, Ethernet, 3 ft
Shielded (65-0104)
Figure 3–18 Cable, Armored Ethernet, 10 ft (60-0053)
