C. Radio Specifications

This section provides the backhaul radio and antenna specifications. See the following

sections for more information:

i “Antenna Specifications” on page 149

i “Radio Specifications” on page 156

C.1 Antenna Specifications

This section provides the antenna specifications. See the following sections for more

information:

i “Bullet Line Station Antenna” on page 149

i “Rocket Recorder Antenna” on page 152

i “NanoStation Recorder/Line Station Antenna” on page 155

C.1.1 Bullet Line Station Antenna

The remote (line) station backhauls using the Ubiquiti Bullet radios support the following

antennas:

i 6 dBi antenna (65-0179) – This antenna is a UV stable, omnidirectional vented

radome that can sustain extreme weather conditions such as heat, wind, and rain,

and can be mounted to a mast, ceiling, or wall.

i 19 dBi directional antenna (65-0177) – This antenna is a UV-resistant, directional

flat-panel ABS plastic radome antenna with an aluminum back plate. It can be

surface or pole mounted and adjusted 45 degrees up or down.

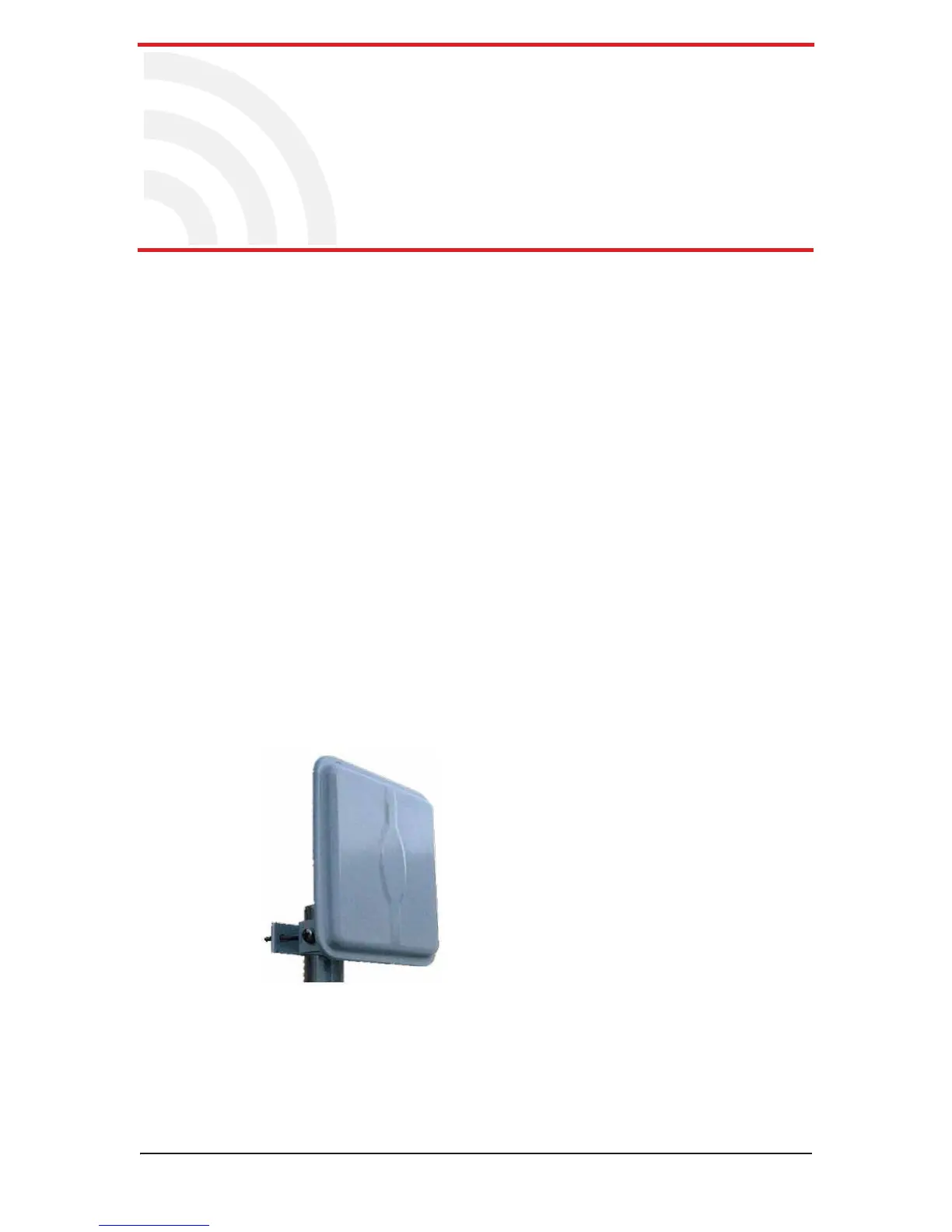

Figure C–1 19 dBi Antenna

(65-0177)
