3. Backhaul
Backhaul Components

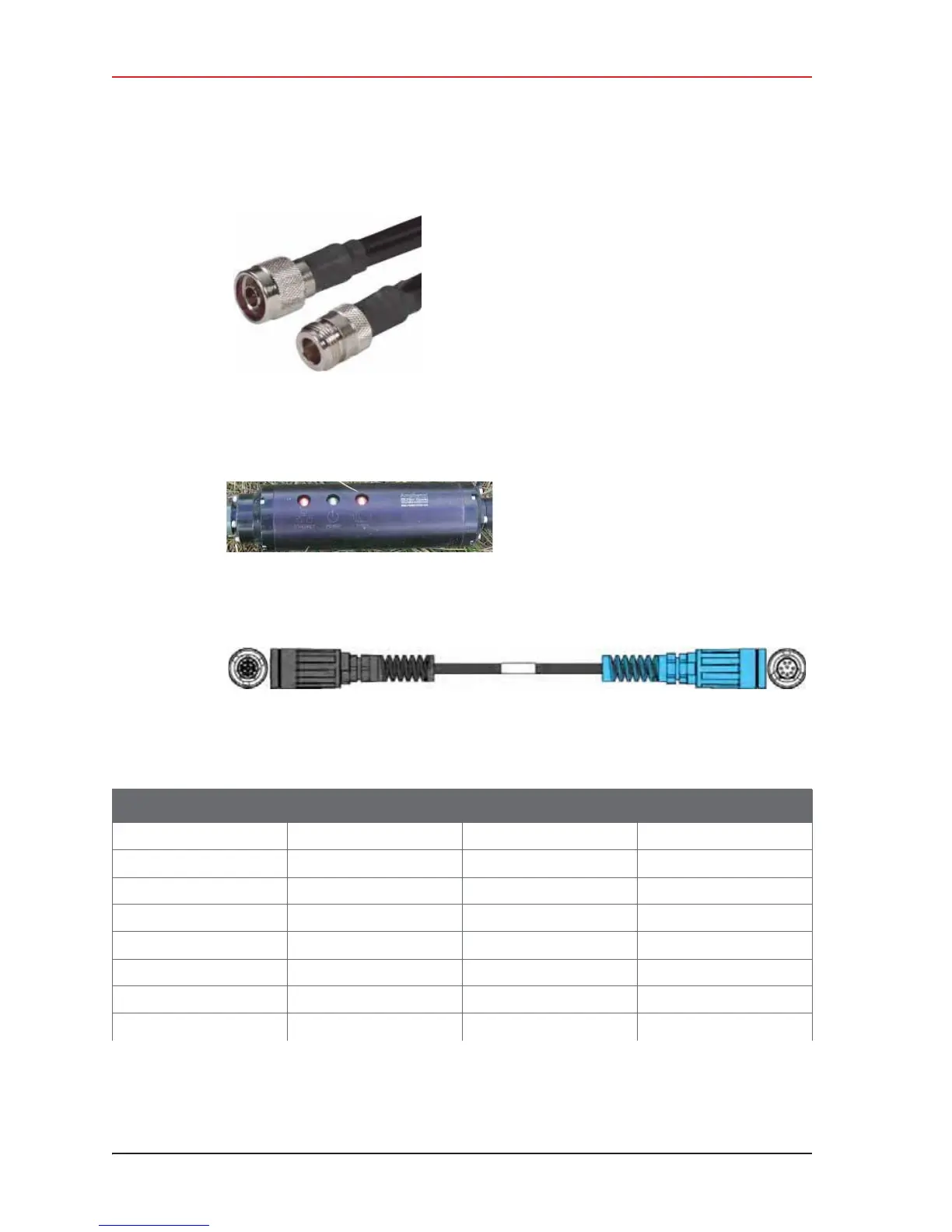

Figure 3–19 Cable, RF
Extender, 10 ft (65-0103)
Figure 3–20 Media Converter (60-0017)
Figure 3–21 Cable, Backhaul Jumper (60-0033)
Table 3–9 Cable Pinout, Backhaul Jumper (60-0033)
14-Pin Connector Wire Color 8-Pin Connector Signal Name
BWHT/ORGATX +
AORGBTX -
CWHT/GRNCRX +
HBLUDPWR +
FWHT/BLUEPWR +
DGRNFRX -
EWHT/BRNGGND
LBRNHGND
