4. Point-to-Point Backhaul
Connecting to the Recording Truck
The following figure shows the optimal angle between the pendent and the line.

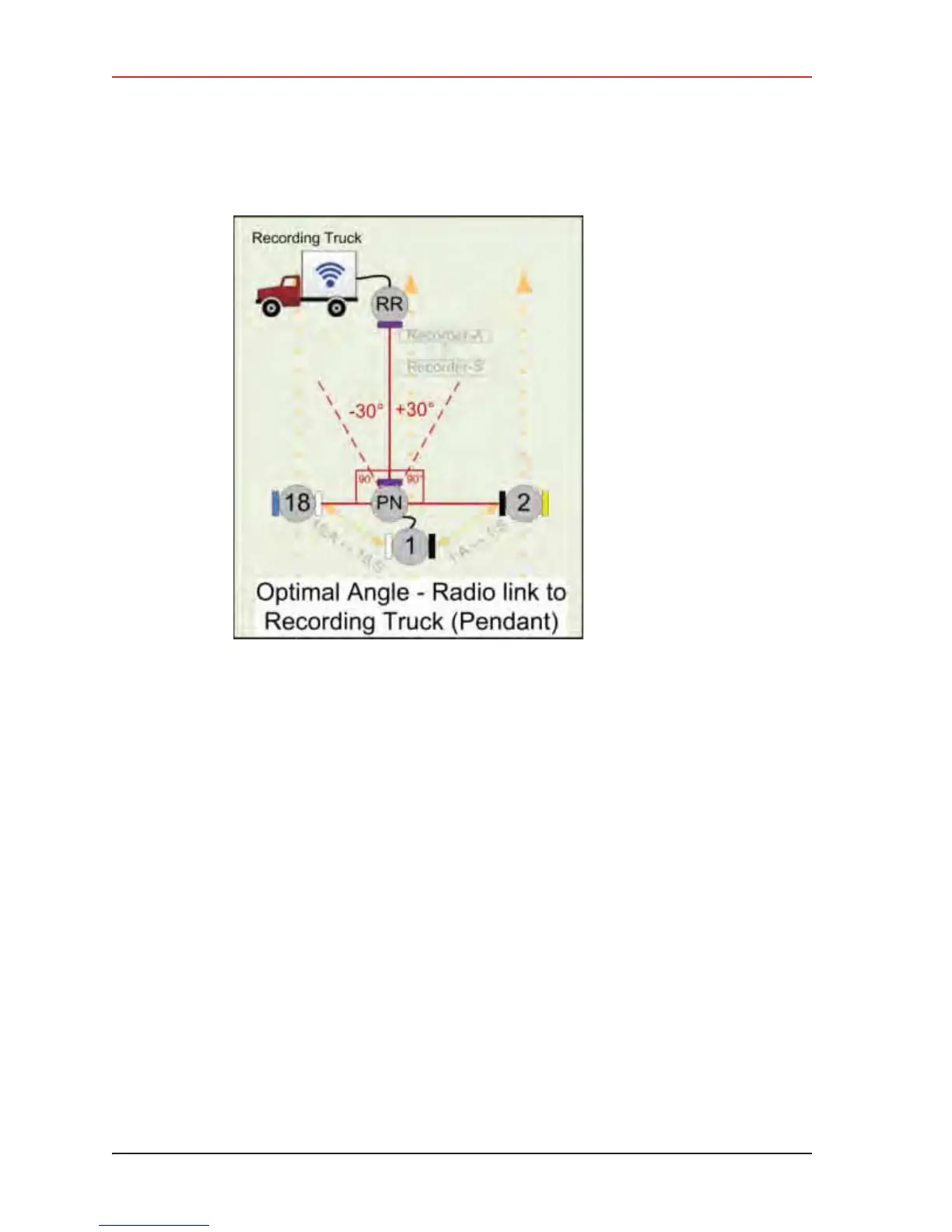

Figure 4–28 Optimal Angle, Radio Link to Recording
Truck
