5. Point-to-Multipoint Backhaul
Create Plan and Map
i An Access Point communicates only with a Station. An Access Point cannot communicate
with an Access Point, and a Station cannot communicate with a Station.

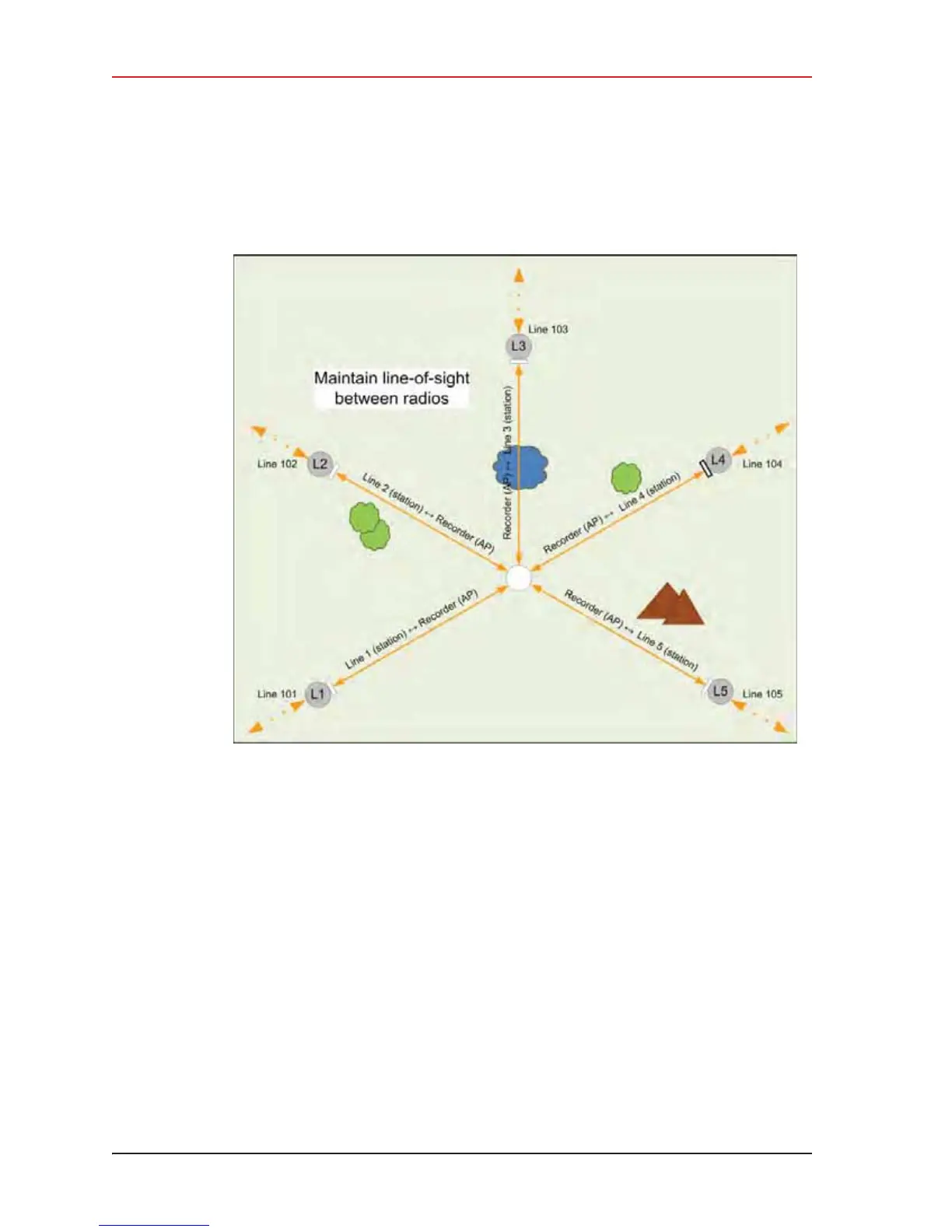

Figure 5–16 Maintain Line-of-Sight
