4. Point-to-Point Backhaul
Final Communication Test
c Repeat step a on page 83 and step b on page 83 for all of the radios.
8 If the individual links are all good but the backhaul as a whole does not deliver the
appropriate throughput, it indicates that there is an interference problem.
Contact Andy Prokop, Jerry Stair, or Mike Shilts for project-specific recommendations.
9 If there are individual links with low numbers, perform the following steps to fix them:
a Verify that the radios are pointing in the correct directions.
b Verify that shielding is properly installed. The following figure shows the NanoStation
radio shielding and surge suppressor assembly (56-0032):

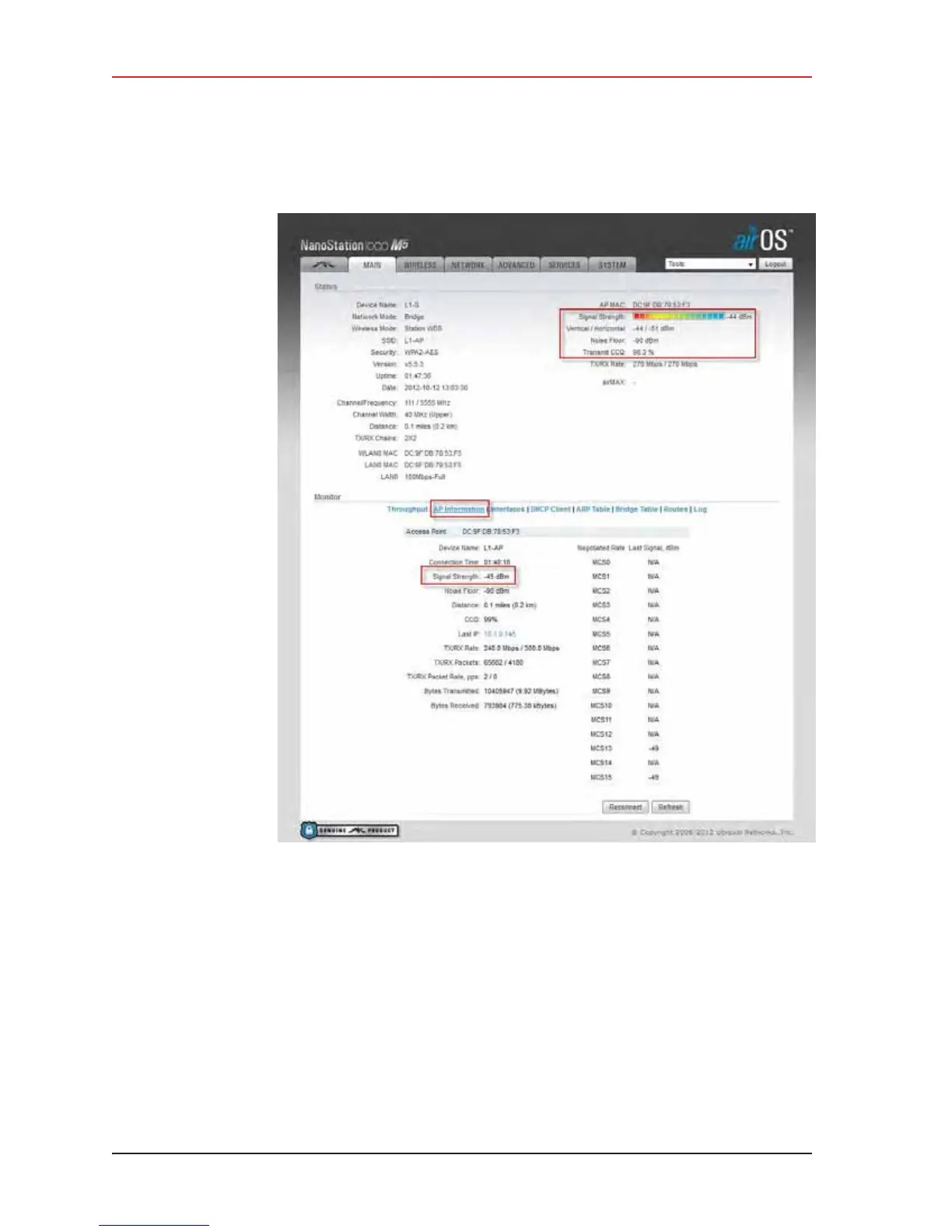

Figure 4–20 NanoStation Main Tab
