4. Point-to-Point Backhaul
Rolling the Backhaul

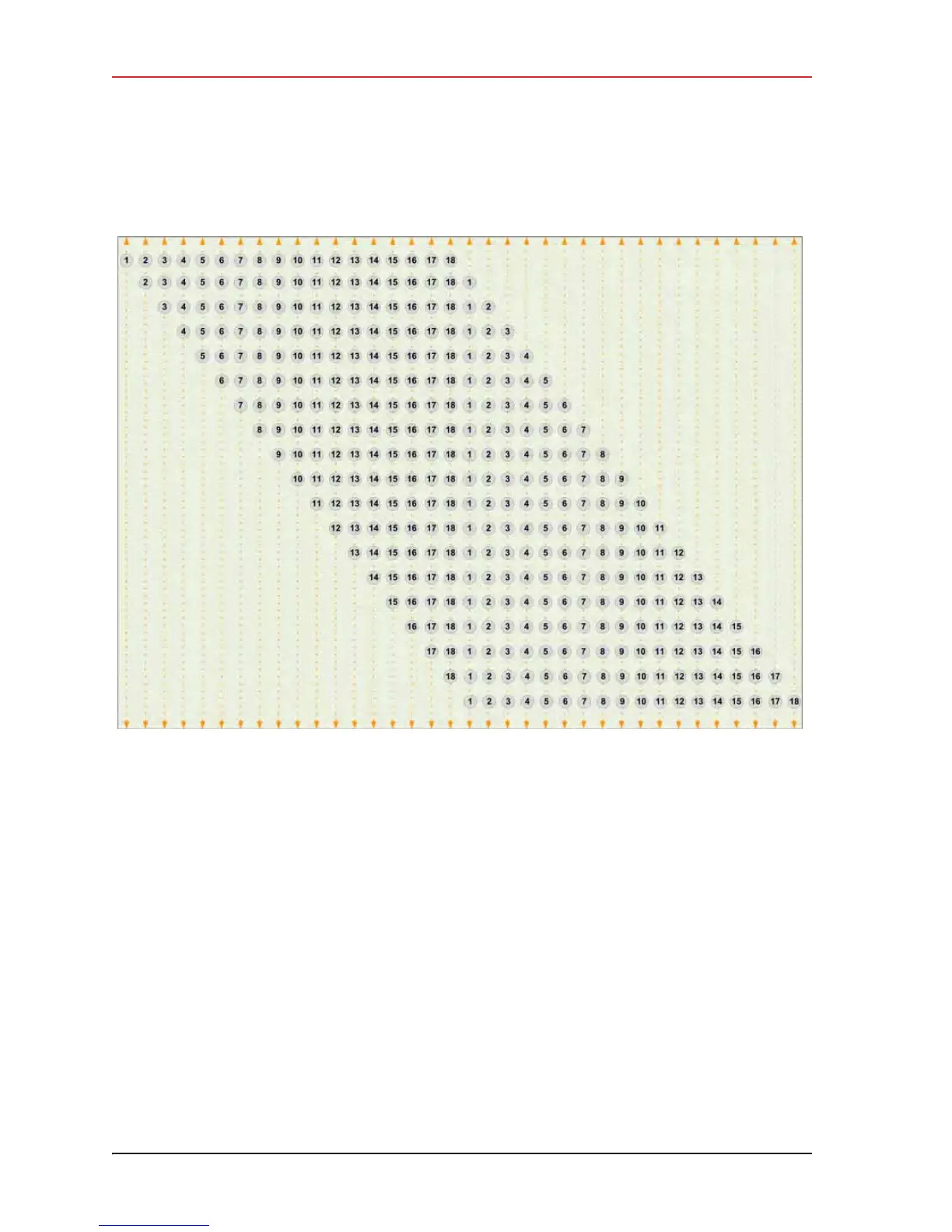

The following figure shows the movement of the poles when using 18 total poles:
Figure 4–23 Rolling Scheme, 18 Total Poles Example
