2. Layout
WRU Anchor Plate
2 Attach the WRU and anchor plate to the ground with three large nails or stakes; two at
the geophone end and one at the end opposite of the geophone.

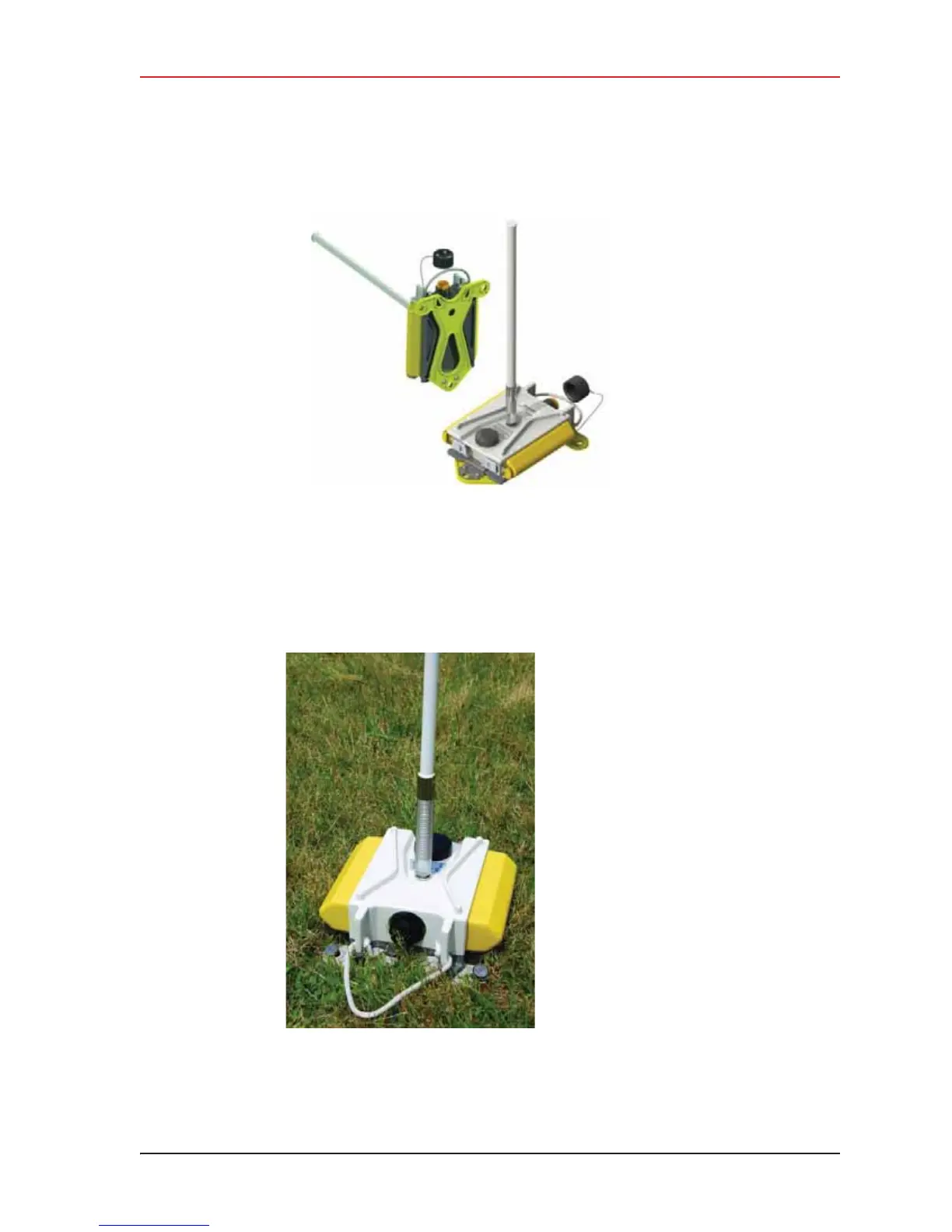

Figure 2–18 Anchor Plate Attached to WRU
Figure 2–19 WRU Anchored with Anchor Plate
